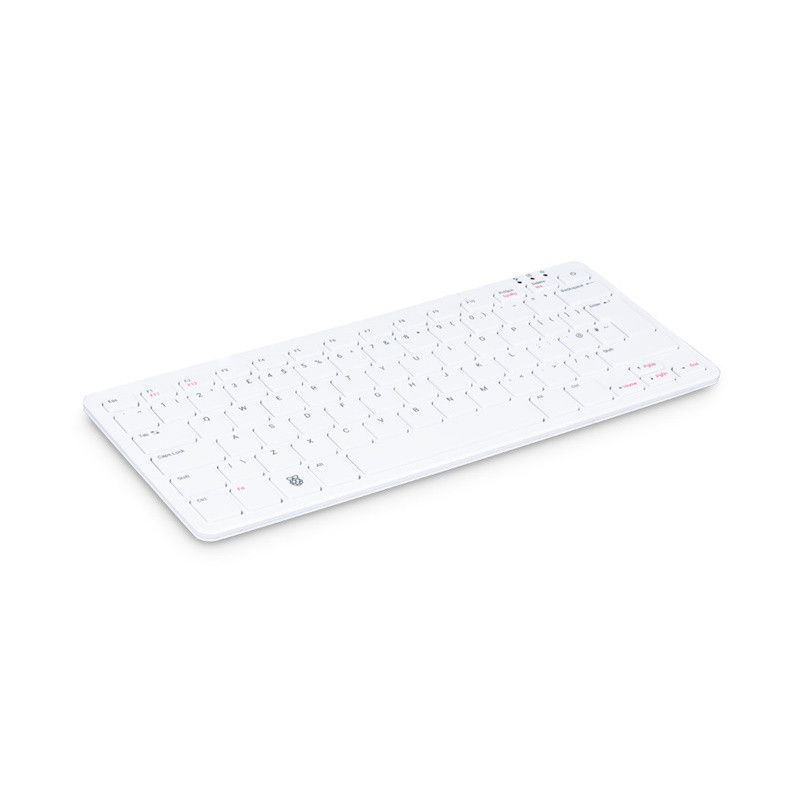

Fast and powerful mini computer built into a high-quality keyboard. The Raspberry Pi 500 contains the same quad-core 64-bit Arm processor and RP1 I/O controller found in the Raspberry Pi 5.

The Raspberry Pi 500 uses Broadcom's BCM2712 chip, which has four 2.4 GHz Arm Cortex-A76 processor cores and an 800 MHz VideoCore VII GPU capable of OpenGL ES 3.1 and Vulkan 1.2 graphics. It should provide a significant improvement in graphical performance.

In addition, the device can drive two 4K-class 60 Hz displays simultaneously with HDR via the HDMI ports.

The Raspberry Pi 500 includes a completely new component developed by the Raspberry Pi Foundation called the RP1 southbridge, which is part of the chipset. Its role is to communicate with peripherals. The new component enables faster data transfer between peripherals and the Raspberry Pi.

Technical specifications

• Processor: 2.4 GHz quad-core 64-bit Arm Cortex-A76 CPU with cryptographic extensions, 512 KB per-core L2 cache and 2 MB shared L3 cache
• Memory: 8 GB LPDDR4X-4267 SDRAM

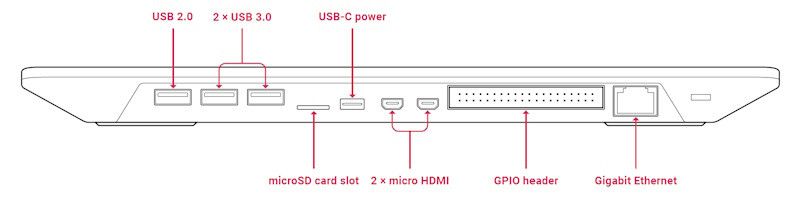

• Connectivity:
  Dual-band (2.4 GHz and 5.0 GHz) IEEE 802.11b/g/n/ac Wi-Fi®
  Bluetooth 5.0, BLE
  Gigabit Ethernet
  2 × USB 3.0 ports and 1 × USB 2.0 port
• Video & Audio: 2 × micro HDMI ports (supports up to 4Kp60)
• Multimedia: H.265 (4Kp60 decode); OpenGL ES 3.0 graphics
• SD card support: microSD card slot for operating system and data storage
• Keyboard: QWERTY, Nordic layout
• Power: 5 V DC via USB-C connector (power supply not included)
• Operating temperature: 0 °C – +50 °C
• Dimensions: 286 mm × 122 mm × 23 mm (maximum)

Links

• Raspberry Pi 500 product brief (pdf)
