Features

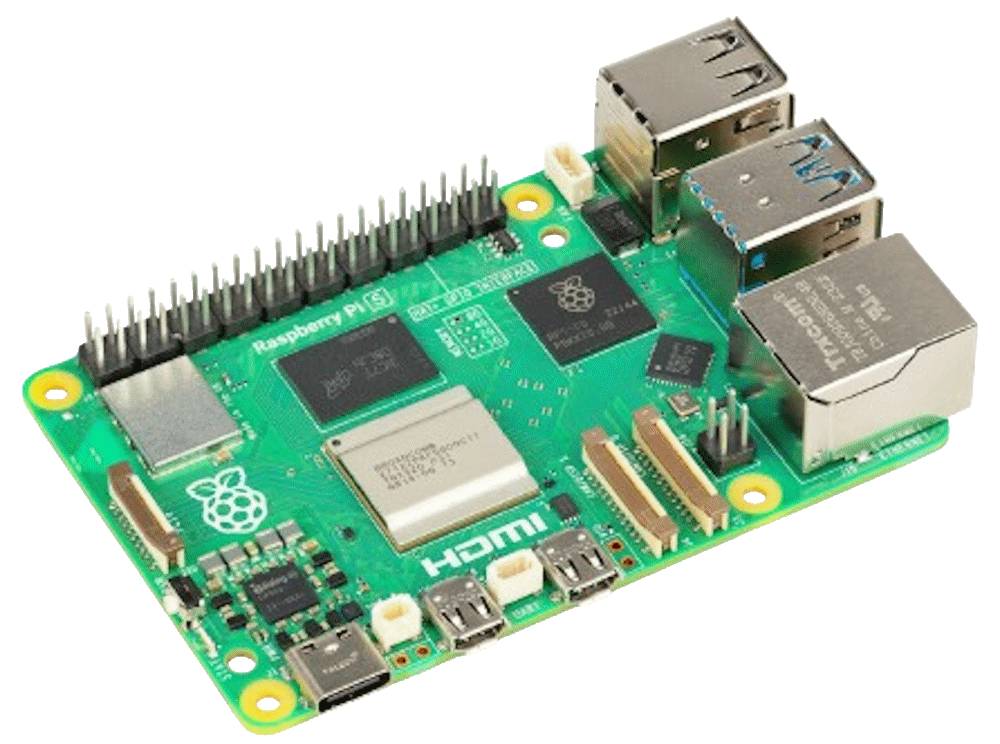

The Raspberry Pi 5 1GB is the latest full-size Raspberry Pi single-board computer, utilising Raspberry Pi’s own BCM2712 system-on-chip and RP1 I/O controller. The device offers a significant performance improvement over previous generations and a substantially faster USB, SD and MIPI bus.

The Raspberry Pi 5 supports two 4K displays, PCIe 2.0 expansions and a real-time clock (RTC). The USB-C power connector supports up to 5 A, allowing the use of more power-hungry peripherals. The 1 GB RAM version is a cost-effective option for projects with limited memory requirements.

Technical specifications

• Manufacturer: Raspberry Pi
• Manufacturer code: SC2162
• Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 @ 2,4 GHz
• Memory: 1 GB LPDDR4X
• Graphics: VideoCore VII (OpenGL ES 3.1, Vulkan 1.2)
• Displays: 2 × micro-HDMI (up to 2 × 4Kp60)
• Wireless connectivity: Wi‑Fi 802.11ac, Bluetooth 5.0 BLE
• USB: 2 × USB 3.0, 2 × USB 2.0
• Ethernet: Gigabit Ethernet (PoE+ HAT)
• Expansion: PCIe 2.0 x1, 40-pin GPIO
• Storage: microSD (SDR104)
• Operating voltage: 5 V DC USB-C (recommendation 5 A)
• Dimensions: approx. 85 × 56 mm
• EAN: 5056561803296

Delivery

• Contents of delivery: Raspberry Pi 5 1GB board
• Operating system not included
• Packaging: manufacturer packaging (bulk)

Links

• https://www.raspberrypi.com/products/raspberry-pi-5/ Raspberry Pi – Raspberry Pi 5
• https://pip.raspberrypi.com/documents/RP-008348-DS-raspberry-pi-5-product-brief.pdf Raspberry Pi 5 Product Brief (PDF)
