Raspberry Pi 5 is more than twice as fast as the previous model, and it uses Broadcom's BCM2712 chip with four 2.4 GHz Arm Cortex-A76 CPU cores and an 800 MHz VideoCore VII GPU capable of OpenGL ES 3.1 and Vulkan 1.2 graphics. It should provide a significant improvement in graphical performance.

In addition, the device can drive two 4K-class 60 Hz displays simultaneously with HDR via the HDMI ports.

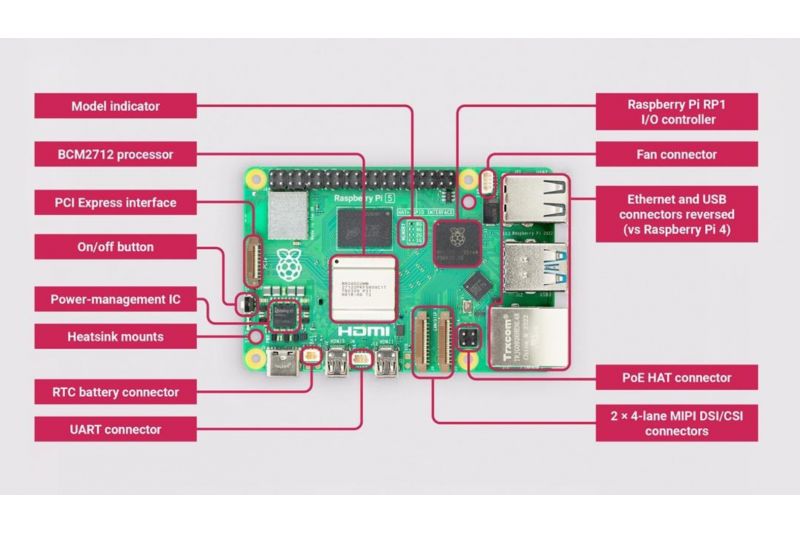

The Raspberry Pi 5 includes a completely new component developed by the Raspberry Pi Foundation called the RP1 southbridge, which is part of the chipset. Its role is to communicate with peripherals. The new component enables faster data transfer between peripherals and the Raspberry Pi.

The motherboard also includes a dedicated power button.

Note: This model is equipped with 16GB of RAM.

Features

• VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.2 graphics
• 2 x 4Kp60 micro HDMI® display connectors with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM 16GB
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot with support for fast SDR104 mode
• 2 × USB 3.0 ports supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet with PoE+ support (requires a separate PoE+ HAT accessory) (Hardware Attached on Top)
• 2 × 4-lane MIPI ports
• PCIe 2.0 x1 connector for fast peripherals (requires a separate M.2 HAT accessory or other adapter)
• 5V/5A DC power via USB-C with Power Delivery support
• Raspberry Pi standard 40 GPIO pins
• Real-time clock (RTC) powered by an external battery
• Power button

Video

Note! Pi5 requires an adapter cable for the camera
