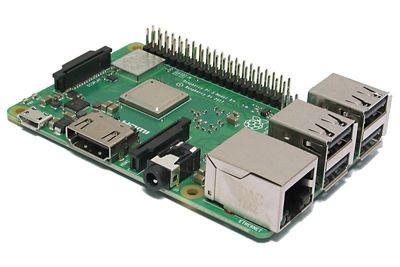

The single-board computer has a 64-bit quad-core processor with a 1.4GHz clock. Improvements have been made to the implementation of wireless connections. Dual-band Wi-Fi with an optional add-on that supports PoE power delivery is available. Additionally, Bluetooth 4.2 with BLE support. The USB implementation has been improved. Includes Gigabit Ethernet (behind a USB bridge). Same mechanical appearance as previous models and the familiar 40-pin GPIO expansion header.

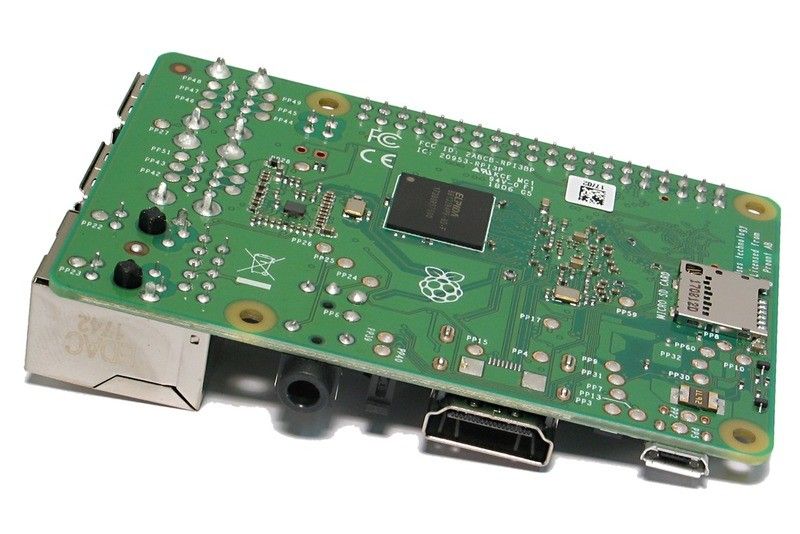

The device is suitable for an even wider range of applications. The PCB with components is the same size as the Pi 2 Model B and Pi 3 Model B. You can use the same power supplies as before. Older cases may not be compatible.

Technical specifications

• Broadcom BCM2837B0 chipset
• 64-bit Cortex-A53 system-on-chip @1.4GHz
• 1GB SDRAM memory, LPDDR2
• Wireless networks:
  • 2.4 and 5 GHz (IEEE 802.11.b/g/n/ac)
  • Bluetooth 4.2, BLE
• Wired networks:
  • Gigabit Ethernet (transfer capacity up to 300Mbps)
• 4 x USB 2.0 ports
• 40-pin GPIO header
• 1 x HDMI connector
• MIPI DSI connector for displays
• MIPI CSI connector for Raspberry camera
• 4-pole stereo output and composite video output
• Micro SD card slot for the operating system
• Power input 1: 5V and 2.5A DC via Micro USB connector
• Power input: 5VDC via the GPIO header
• Supports PoE power delivery (requires a separately purchased add-on)
• Operating temperature: 0 ... 50°C
• Supports H.264 and MPEG-4 decoding (1080p30), H.264 encoding (1080p30) and OpenGL graphics (ES 1.1, 2.0)

Note! For small-package delivery we may need to remove the original packaging.

Also check out our wide selection of add-on boards (Pi Hat). You can find a suitable case, power supply and memory card below.
