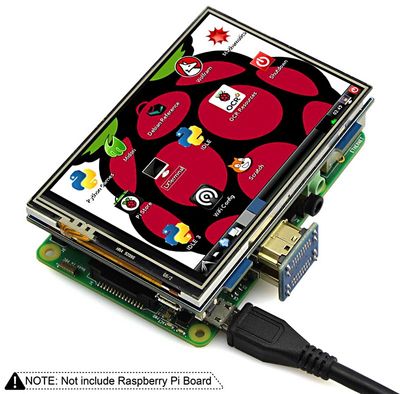

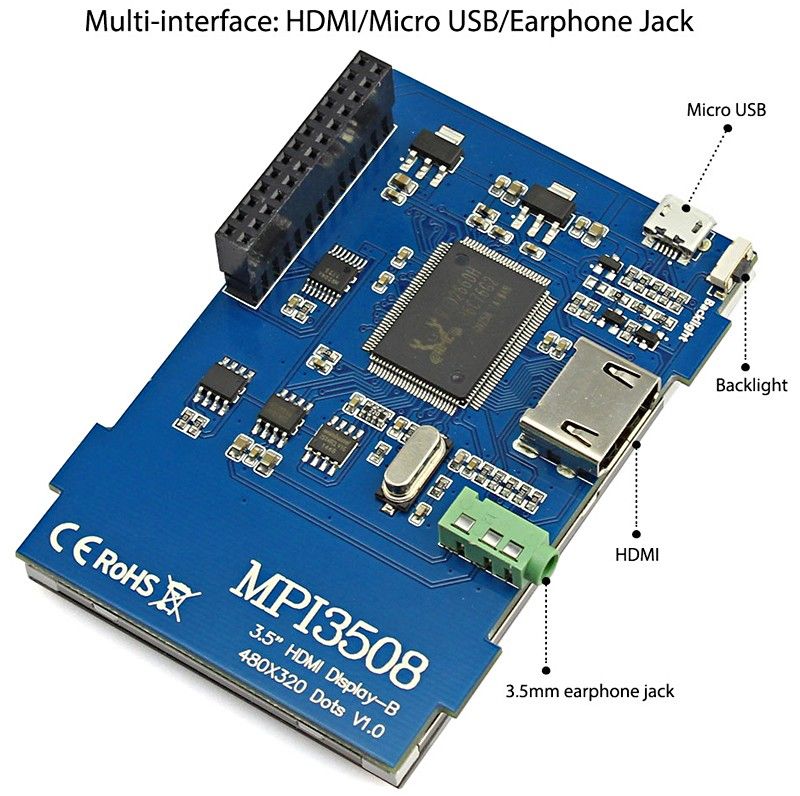

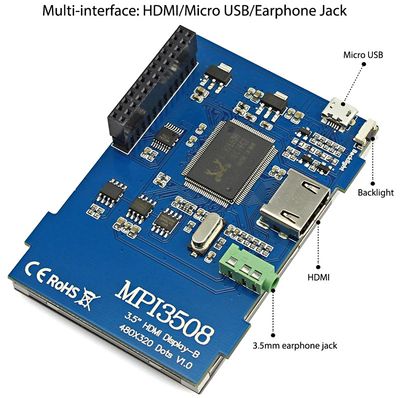

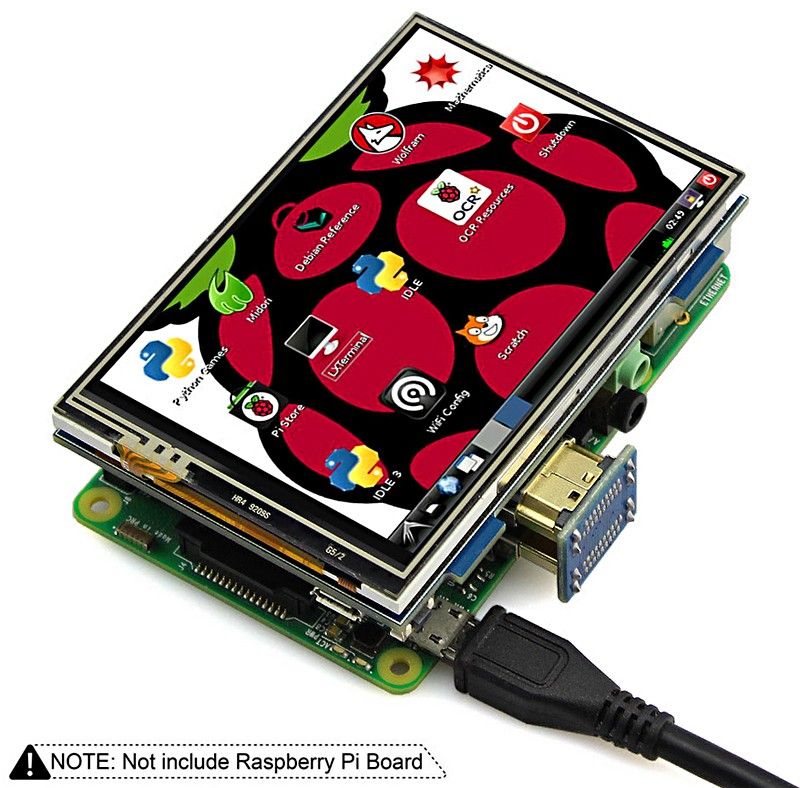

Small, top-mounted TFT display suitable for Raspberry Pi. For Raspberry Pi 4 a different adapter piece is required which is not included. Raspberry Pi 3B+ can be connected directly to the HDMI port with an adapter. Power supply via microUSB or through the GPIO connector (default). Model designation on the circuit board MPI3508.

Specifications

• Connections: HDMI, 3.5mm audio output from amplifier, 26-pin GPIO, microUSB
• Backlight adjustment switch
• Display size: 3.5 inches
• Physical resolution: 480 x 320 pixels, 60FPS, virtual 1920x1080
• Resistive touch surface
• Power consumption: 0,2A
• Dimensions: 85 x 60 mm
• Weight: 480g

Package contents

• Display with touch surface x1
• Touchscreen stylus x1
• HDMI adapter x1
• DVD x1

Links

• http://www.lcdwiki.com/3.5inch_HDMI_Display-B
