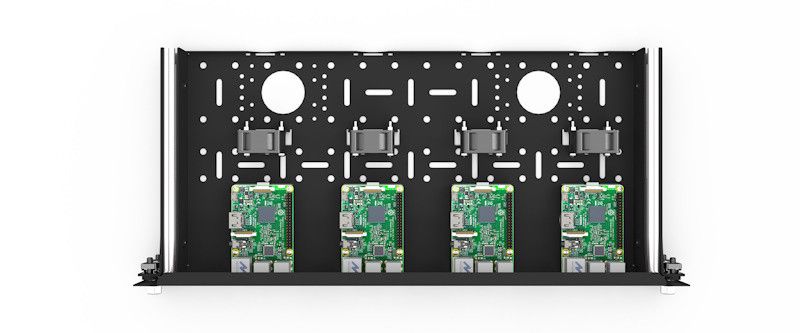

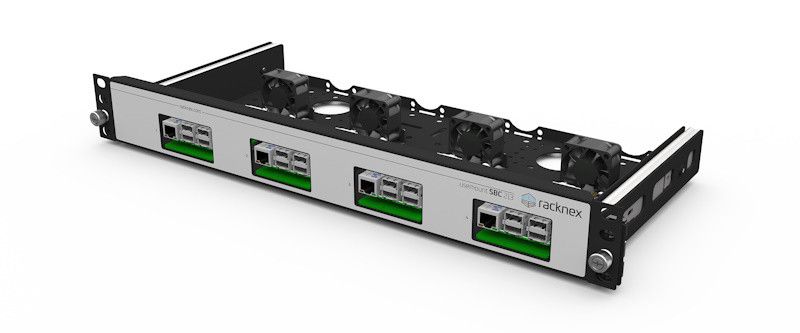

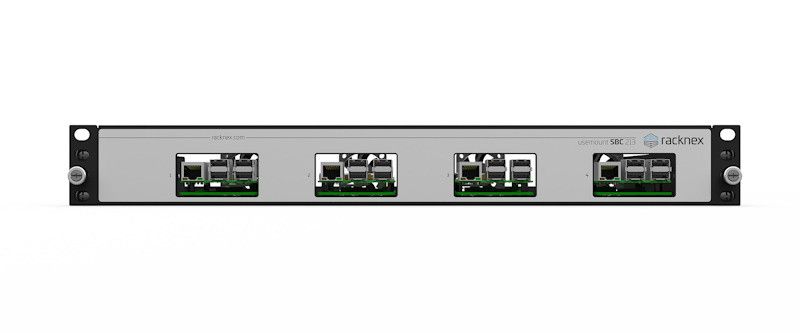

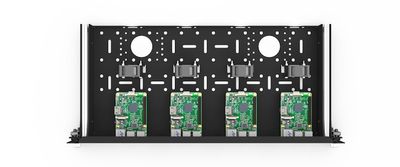

UM-SBC-213 Rackmount Kit is a durable, professional solution that lets you mount up to four Raspberry Pis or similar single-board computers (SBC) in a 19" server rack. With a height of 1.33U it provides extra space for integrating components such as PoE HATs or UPS modules — an excellent choice for advanced server and testing environments.

Features

• Compatibility: Raspberry Pi 2B, 3B, 3B+, 4B, 5 and other Raspi-form-factor SBCs
• Capacity: Slots for four devices in a single 1.33U rack enclosure
• Mounting: Each device is secured with four M2.5 screws (included)
• Extra space: Increased height allows for more extensive add-ons such as cooling and power management solutions
• Cable management: Includes cable ties for neat cable routing

Technical specifications

• Rack size: 19", 1.33U
• Dimensions (L × H × D): 482.6 × 58.2 × 210 mm
• Material: Steel
• Color: Front panel: white aluminum (RAL 9006), chassis: black (RAL 9005)
• Fan compatibility: 4x 40×40 mm (screw spacing 32×32 mm), mounted with two screws per fan
• Telescopic rails (optional): 200 mm extendable rails for easy maintenance

Package contents

• 1x UM-SBC-213 Rackmount Kit
• 4x Rack mounting screw sets
• 10x Cable tie 100 mm
• 5x Cable tie 300 mm
• 20x M2.5 mm screws for device mounting
• 1x Product datasheet
• 1x Installation manual

Note!

• Computers (e.g. Raspberry Pi) are not included

Links

• Product datasheet (PDF)
