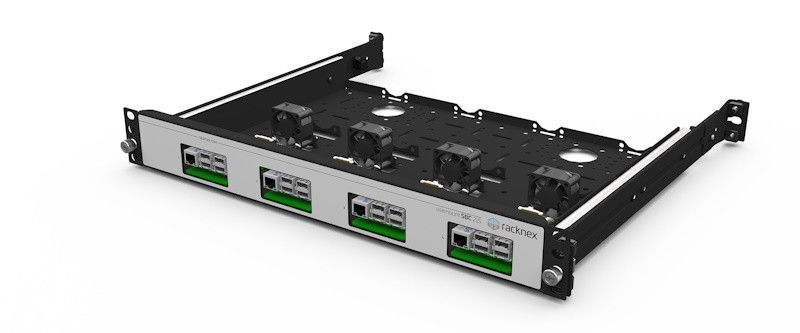

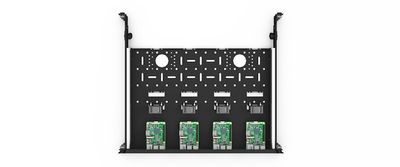

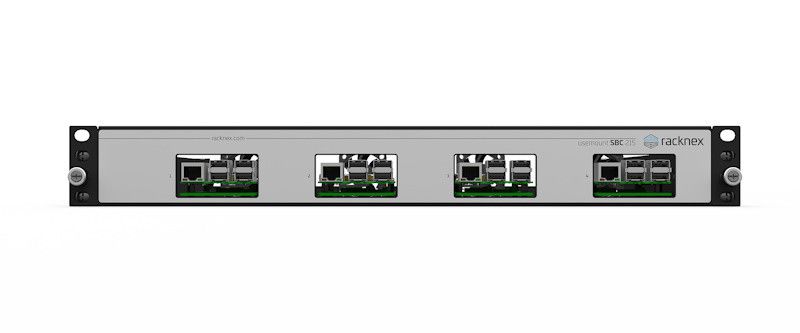

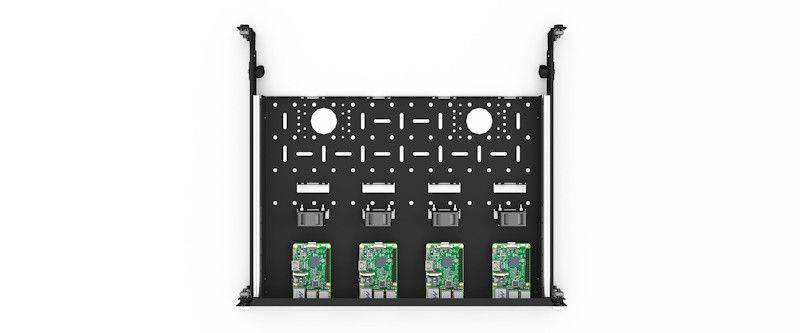

UM-SBC-215 Rackmount Kit is a durable, professional solution that lets you mount up to four Raspberry Pi or similar single-board computers (SBC) in 1.33U of space in a 19" server rack. It also provides room for PCIe expansion cards, allowing you to build powerful file or media servers, routers, or other advanced solutions.

Features

• Compatibility: Raspberry Pi 2B, 3B, 3B+, 4B, 5 and other Raspi-format SBCs
• Capacity: Slots for four devices in a single 1.33U rack enclosure
• PCIe support: Space for PCIe expansion cards under the Raspberry Pi devices (approx. 50 mm height clearance)
• Mounting: Each device is secured with four M2.5 screws (included)
• Cable management: Includes cable ties for neat cable routing
• Cooling: Can accommodate 4x 40×40 mm fans (mounting hole spacing 32×32 mm)
• Expansion options: Display mount, blanking plates, extendable telescopic rail (300 mm), panel cover

Technical specifications

• Rack size: 19", 1.33U
• Dimensions (L × H × D): 482.6 × 58.2 × 310 mm
• Material: Steel
• Color: Front panel: white aluminum (RAL 9006), chassis panels: black (RAL 9005)
• Telescopic rails (optional): 300 mm pull-out rails, compatible with cabinet depths 400–900 mm

Package contents

• 1x UM-SBC-215 Rackmount Kit
• 8x Rack mounting screw sets
• 10x Cable tie 100 mm
• 5x Cable tie 300 mm
• 20x M2.5 mm screws for device mounting
• 1x Product information sheet
• 1x Assembly instructions

Note!

• Computers (e.g. Raspberry Pi) are not included
