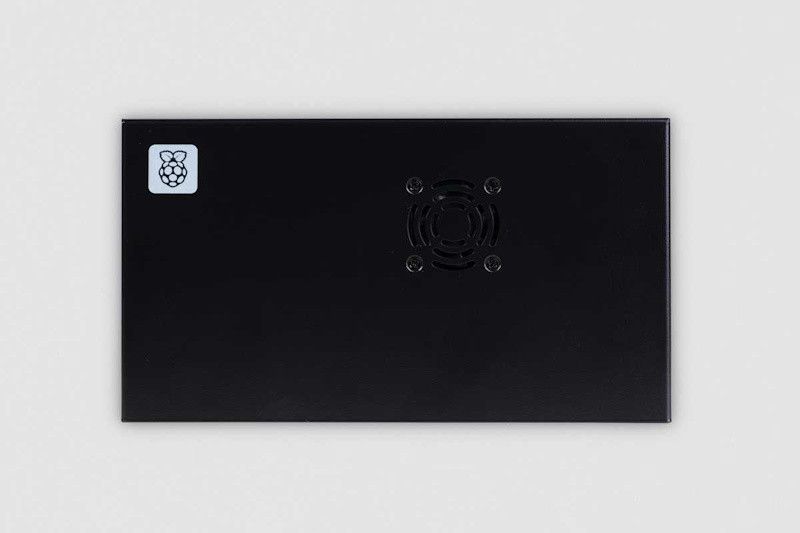

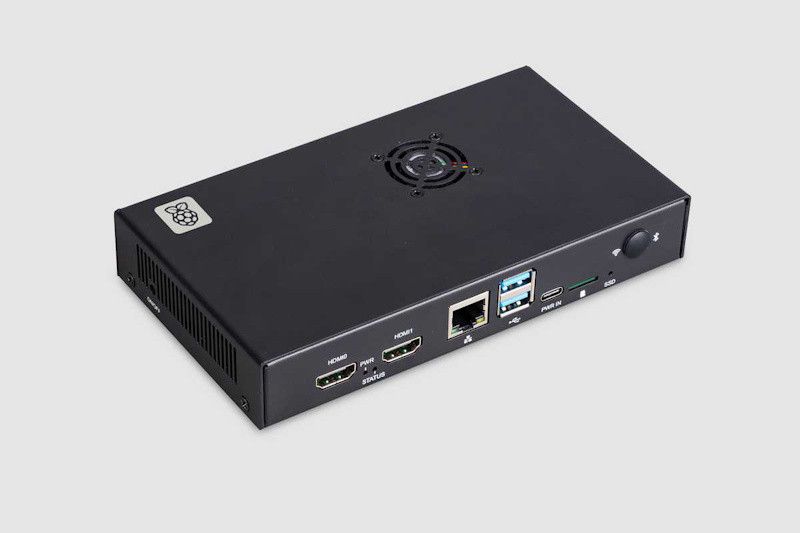

Raspberry Pi Compute Module 5 IO Case -metal enclosure gives the Raspberry Pi Compute Module 5 IO Board a tidy and professional appearance. It protects the hardware from dust, bumps and damage while keeping all important connections easily accessible.

Features

• Enclosure: Metal protective case for the Compute Module 5 IO Board
• Cameras and displays: Cutouts for CSI and DSI connectors
• Fan: Built-in, controllable DC brushless fan

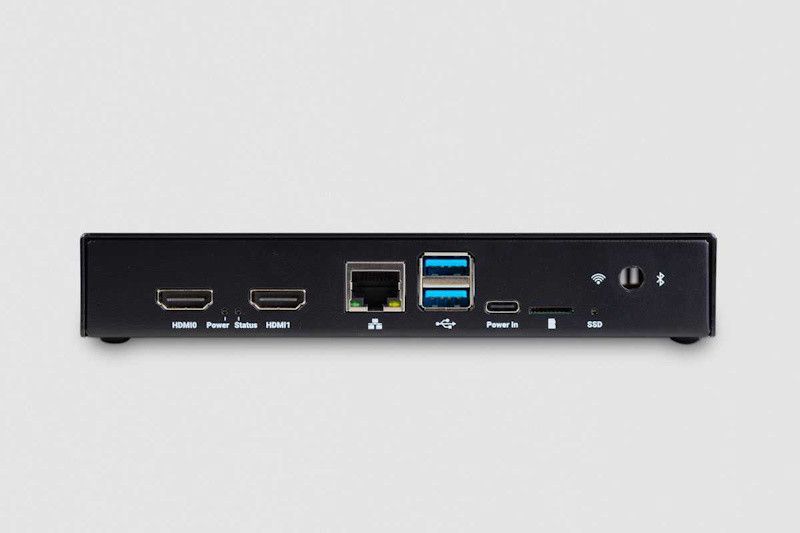

• Connections: Side cutouts for HDMI, Ethernet, USB-A, USB-C and microSD card
• Wireless antenna: Mounting point for an external wireless/Bluetooth antenna

Specifications

• Dimensions: 170 × 94 × 28 mm
• Weight: Approximately 350 g
• Material: Sheet metal construction

Fan

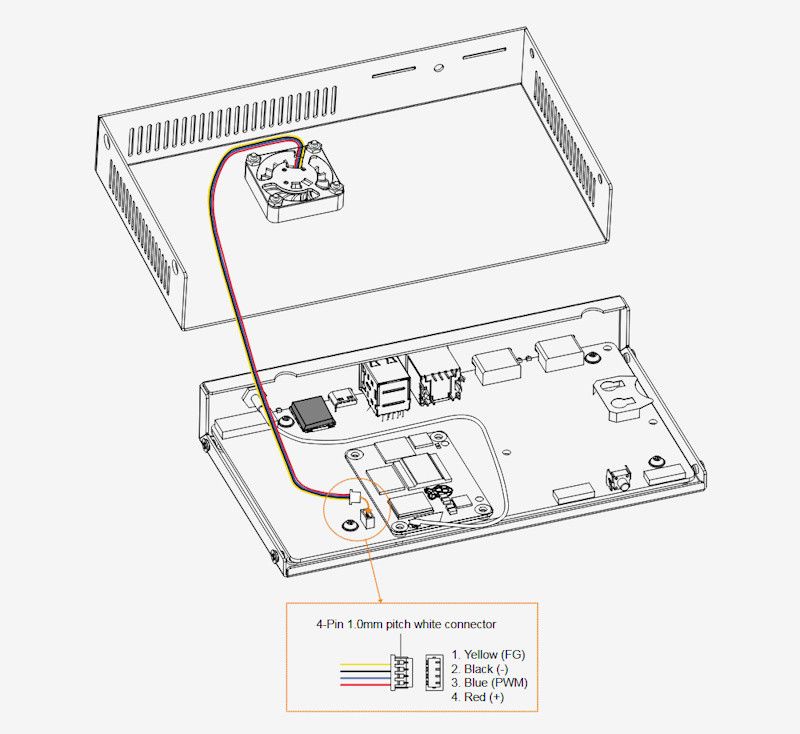

• Voltage: 5V DC (3.5–5.5V) from a 4-pin connector
• Start voltage: ≥ 3.5V
• Power consumption: 0.85W
• Rated current: 0.18 ± 0.02A
• Maximum speed: 8000 RPM ±15% (at 25 °C, after 3–5 minutes)
• Airflow: Max 2.46 CFM
• Noise level: 21.7 dB
• Lead length: 150 mm

Package includes

• 1x Raspberry Pi Compute Module 5 IO Case enclosure
• 1x Brushless DC fan

Links

• Datasheet (PDF)
