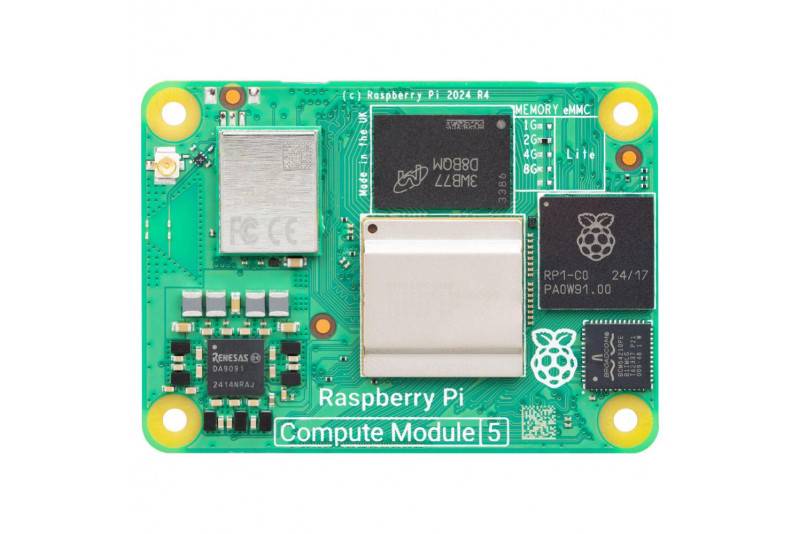

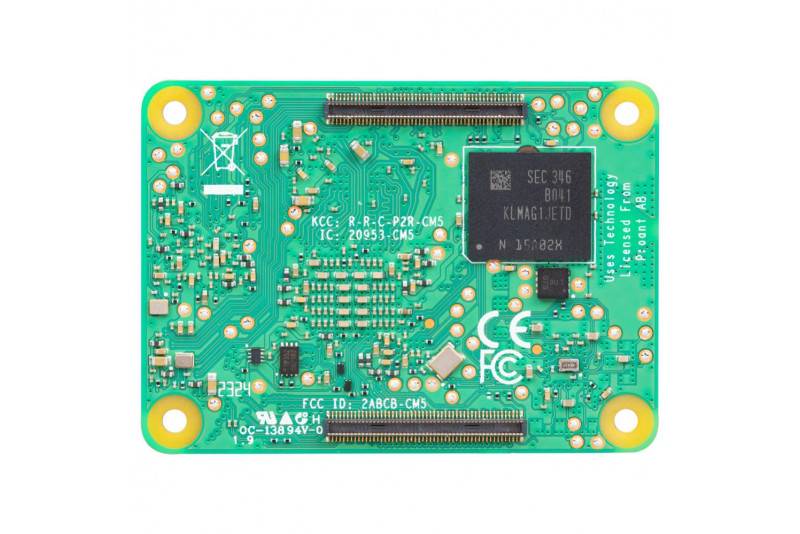

The Raspberry CM5 module board is broadly compatible with CM4 module boards, but check the motherboard designed for CM4 before use. The form factor is the same 55 x 40 mm and the board uses the same 100-pin HD connectors. The BCM2712 SoC on Raspberry Pi 5 boards is more powerful than the BCM2711 used in the Pi 4. One difference is a higher-performance PCIe Gen 2.0 interface.

Technical specifications

• 55 mm × 40 mm × 4.7 mm module
• 4 × M2.5 mounting holes
• Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4 GHz
• Memory options:
  • 1GB, 2GB, 4GB, 8GB LPDDR4-4267 SDRAM with ECC
  • 0GB, 16GB, 32GB or 64GB eMMC flash
• Certified radio module options:
  • 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
  • Bluetooth 5.0, BLE
  • Electrical switch to select on-board trace or external antenna
• Gigabit Ethernet PHY supporting IEEE 1588
• 1 × PCIe x1 root complex, Gen 2 (5Gbps)
• 1 × USB 2.0 port (high-speed)
• 2 × USB 3.0 ports supporting simultaneous 5Gbps operation
• Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripherals:
  • Up to 5 × UART
  • Up to 5 × I2C
  • Up to 5 × SPI
  • 1 × SDIO interface
  • 1 × DPI (parallel RGB display)
  • 1 × I2S
  • Up to 4 × PWM channels
  • Up to 3 × GPCLK outputs
• 2 × HDMI 2.0 ports (supporting up to 4Kp60 on both ports simultaneously)
• 2 × 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port)
• 4Kp60 HEVC decoder
• OpenGL ES 3.1 graphics, Vulkan 1.2
• 1 × SDIO 2.0 (CM5 Lite)

Note! Will be kept in production at least until January 2036

Documents

• Raspberry Pi Compute Module 5 product brief
• Raspberry Pi Compute Module 5 datasheet
• Raspberry Pi Compute Module 5 design files
