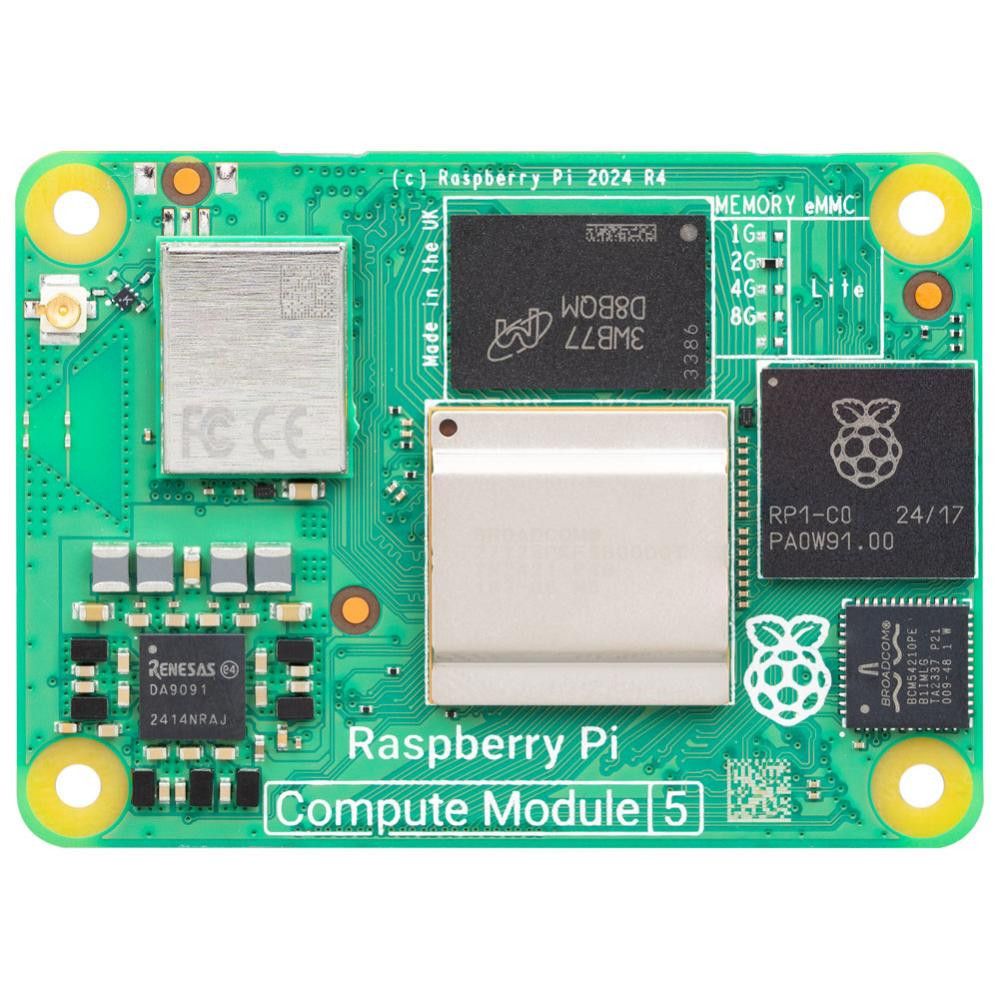

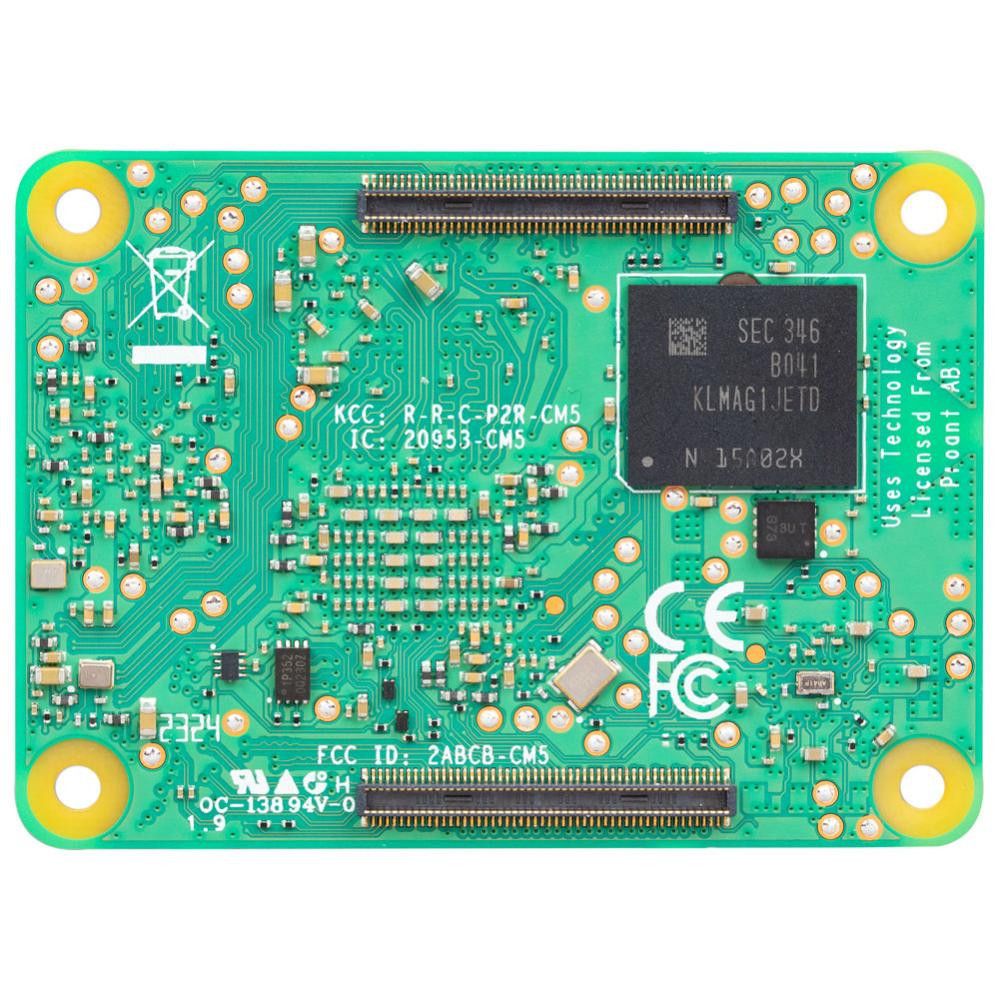

The Raspberry CM5 compute module card is broadly compatible with CM4 compute module carrier boards, but check the carrier board designed for CM4 before use. The form factor is the same 55 x 40 mm and the board uses the same 100-pin HD connectors. The Broadcom BCM2712 SoC found on Raspberry Pi 5 boards is more powerful than its predecessor BCM2711 from the Pi 4. One notable difference is a higher-performance PCIe Gen 2.0 interface.

Technical specifications

• 55 mm × 40 mm × 4.7 mm module
• 4 × M2.5 mounting holes
• Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4 GHz
• Memory options:
  • 1GB, 2GB, 4GB, 8GB LPDDR4-4267 SDRAM with ECC
  • 0GB, 16GB, 32GB or 64GB eMMC flash
• Certified radio module options:
  • 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
  • Bluetooth 5.0, BLE
  • Electrical switch to select between PCB trace or external antenna
• Gigabit Ethernet PHY supporting IEEE 1588
• 1 × PCIe x1 root complex, Gen 2 (5Gbps)
• 1 × USB 2.0 port (high-speed)
• 2 × USB 3.0 ports supporting simultaneous 5Gbps operation
• Up to 30 × GPIO, supporting either 1.8V or 3.3V signalling and peripherals:
  • Up to 5 × UART
  • Up to 5 × I2C
  • Up to 5 × SPI
  • 1 × SDIO interface
  • 1 × DPI (parallel RGB display)
  • 1 × I2S
  • Up to 4 × PWM channels
  • Up to 3 × GPCLK outputs
• 2 × HDMI 2.0 ports (supporting up to 4Kp60 on both ports simultaneously)
• 2 × 4-lane MIPI ports supporting both DSI (display) and CSI-2 (camera)
• 4Kp60 HEVC decoder
• OpenGL ES 3.1 graphics, Vulkan 1.2
• 1 × SDIO 2.0 (CM5 Lite)

Note! Will be kept in production at least until January 2036

Documents

• Raspberry Pi Compute Module 5 product brief
• Raspberry Pi Compute Module 5 datasheet
• Raspberry Pi Compute Module 5 design files
