Description

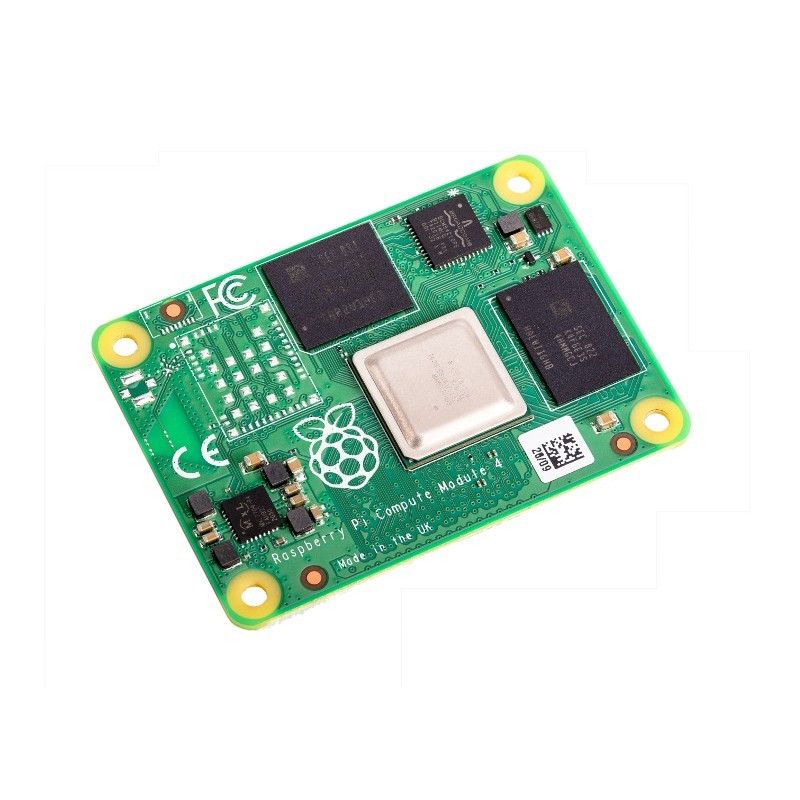

Compute Module 4 (CM4) brings the power of the Raspberry Pi 4 to the popular Compute Module family.

Technical specifications

• Dimensions: 55 mm × 40 mm
• Processor: (ARM v8) 64-bit SoC @ 1.5 GHz.
• Memory: 2 GB LPDDR4
• Connectivity:
  • On-board Gigabit Ethernet PHY with IEEE1588 support.
  • 1 × USB 2.0 port
  • PCIe Gen 2 x1 connector
  • 28 GPIO signals
  • SD card interface for SD card or external eMMC (for use only on Compute Module 4 variants without eMMC).
• Video:
  • HDMI ports: Two HDMI ports (up to 4Kp60 supported).
  • 2-lane MIPI DSI display interface
  • 2-lane MIPI CSI camera interface
  • 4-lane MIPI DSI display interface
  • 4-lane MIPI CSI camera interface
• Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
• Supply voltage: 5V DC
• Operating temperature: 0 - +80°C

Package contents

• 1pc CM4002032 = Compute Module 4 without wireless, 2GB RAM, 32GB eMMC
