Description

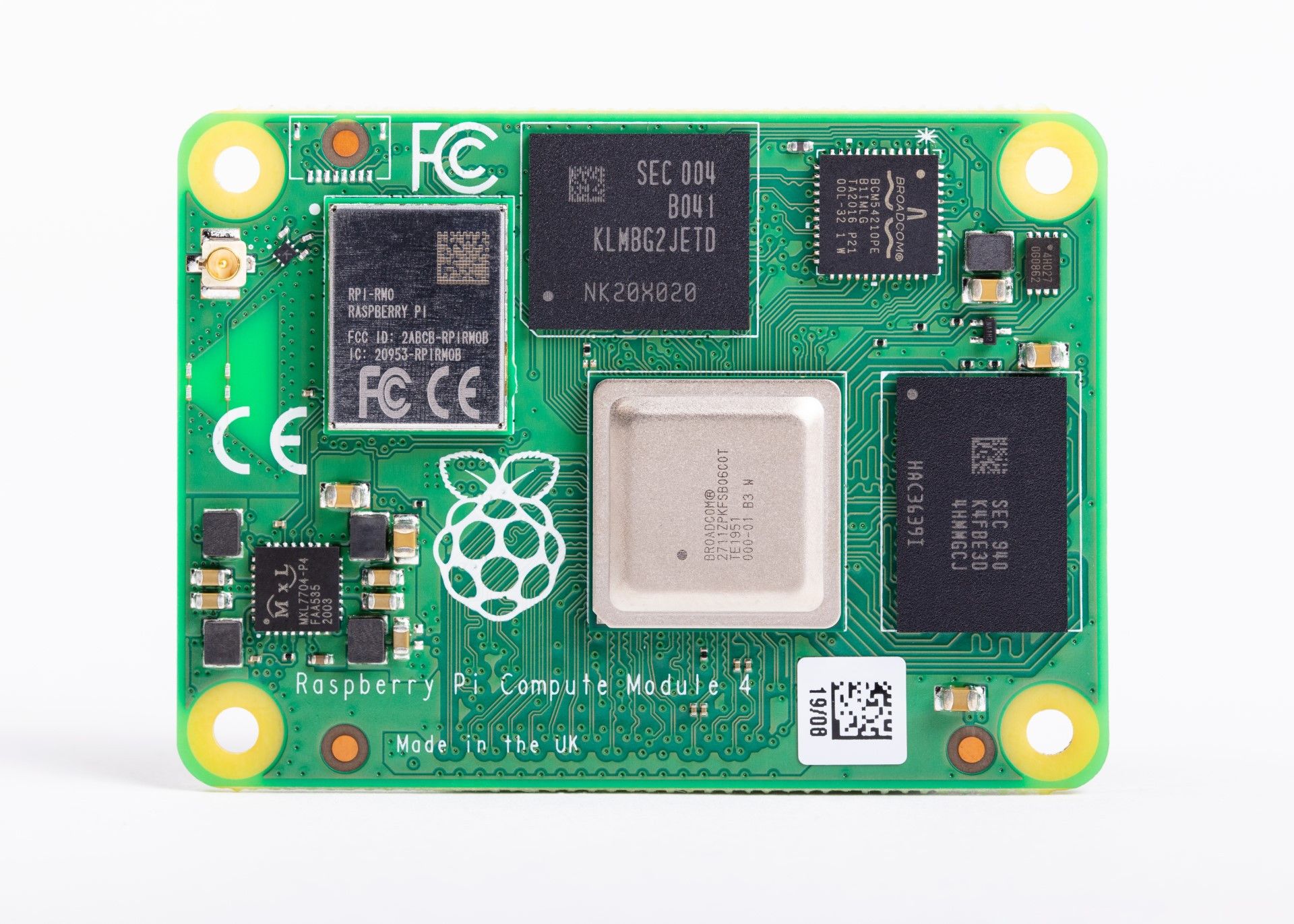

Compute Module 4 (CM4) brings the power of Raspberry Pi 4 to the popular Compute Module family.

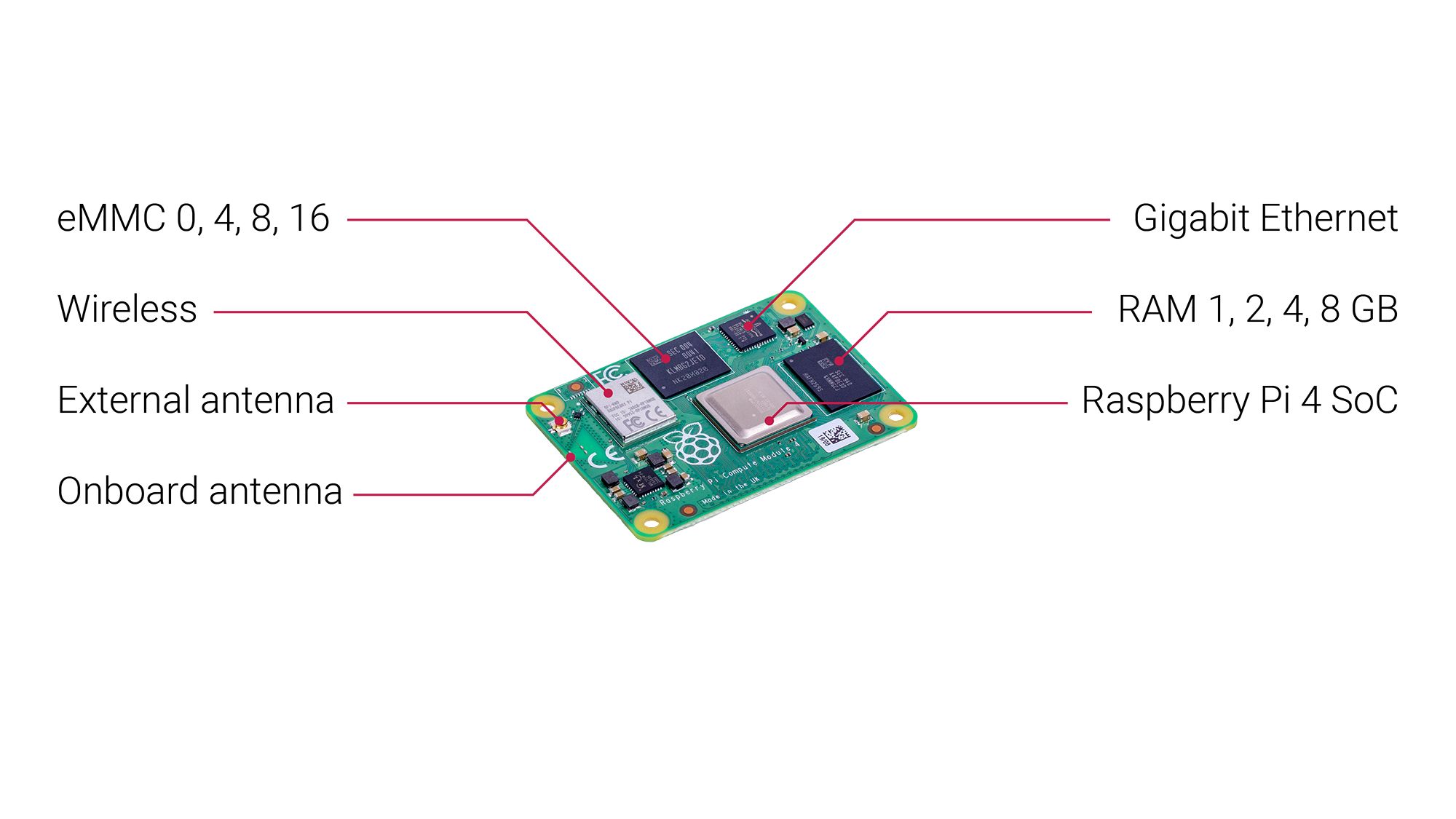

Technical specifications

• Dimensions: 55 mm × 40 mm
• Processor: (ARM v8) 64-bit SoC @ 1.5 GHz.
• Memory: 1 GB, 2 GB, 4 GB or 8 GB LPDDR4 (depending on variant).
• Connectivity:
  • 802.11b/g/n/ac, Bluetooth 5.0, BLE, with onboard and external antenna.
  • Built-in Gigabit Ethernet PHY with IEEE1588 support.
  • 1 × USB 2.0 port
  • PCIe Gen 2 x1 interface
  • 28 GPIO signals
  • SD card interface for SD card or external eMMC (for use only on Compute Module 4 variants without eMMC).
• Video:
  • HDMI ports: Two HDMI ports (up to 4Kp60 supported).
  • 2-lane MIPI DSI display interface
  • 2-lane MIPI CSI camera interface
  • 4-lane MIPI DSI display interface
  • 4-lane MIPI CSI camera interface
• Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
• Operating voltage: 5V DC
• Operating temperature: 0 - +80°C

Package contents

• 1kpl CM4001016 = Compute module 4 ilman langatonta yhteyttä, 1GB RAM, 16GB eMMC
