QuSpot for Teltonika RUTX50

Name: QuSpot for Teltonika RUTX50
Brand: QuWireless
SKU: QWAX50S
Price: 255.05 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWAX50S

QuSpot for Teltonika RUTX50

Temporarily out of stock

SKU#: QWAX50S

QuWireless AX50S - integrated, outdoor multi-band high-power 5G & LTE + Wi-Fi omni-antenna + GPS antenna, mounting location Teltonika RUTX50 (All-in-one)

255,05 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

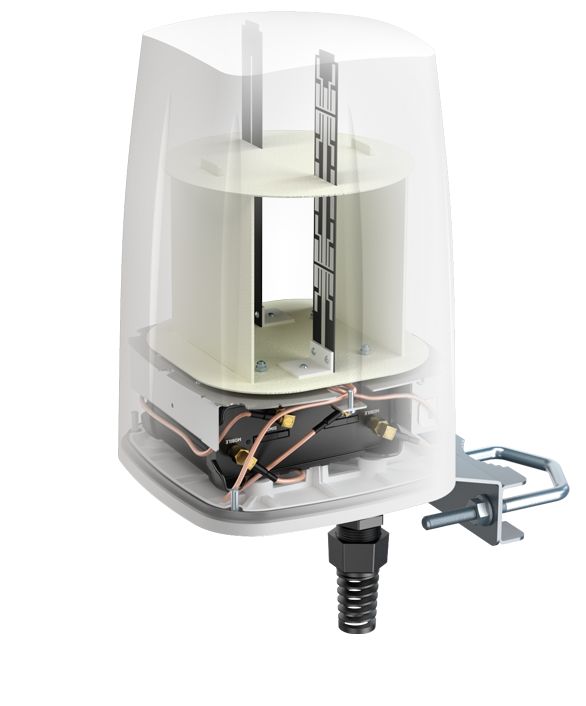

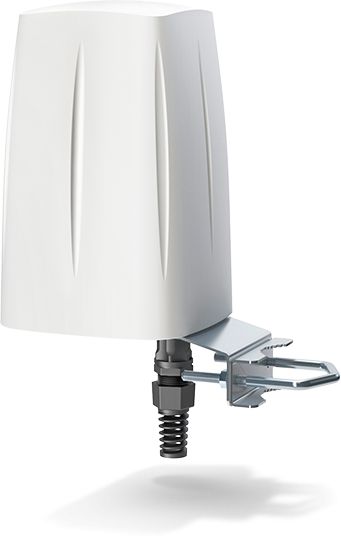

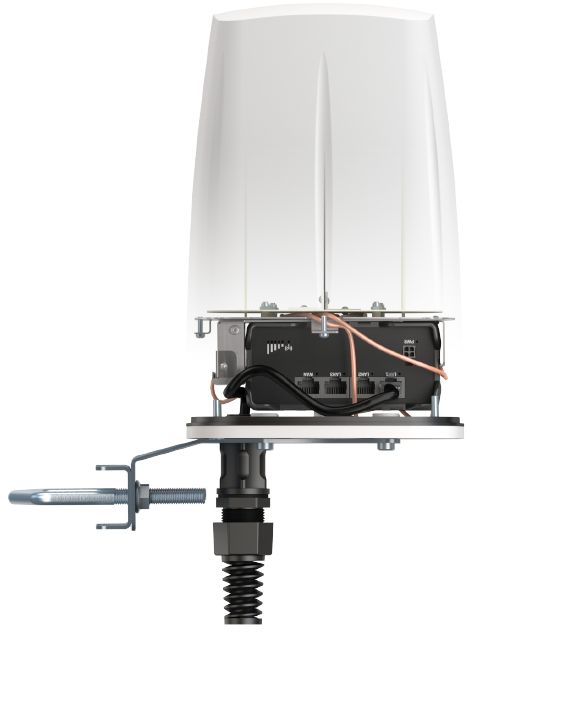

QuSpot for RUTX50 is an outdoor antenna designed to provide a reliable wireless connection in various environments. This product is an all-in-one solution that integrates a high-gain, omnidirectional 5G and Wi-Fi antenna with the RUTX50 into a single IP67 enclosure. Such integration enables new outdoor RUTX50 deployments.

The QuMAX antenna housing is fully weatherproof (IP67) and specifically designed for outdoor use. This allows you to use the QuMax antenna even in extreme weather conditions.

Note! The Teltonika RUTX50 router must be powered via PoE

Features

The outdoor antenna works in all weather conditions, IP67 protected
The antenna is a perfect match for the router
Easy to install

LTE & 5G antenna specifications

Type of Antenna:	4x4 MIMO 4G Omni Antenna
Frequency:	694 - 966 MHz 1710 - 2200 MHz 2200 - 2690 MHz 3300 - 3800 MHz
Gain:	3dBi 3.5dBi 3.5dBi 4dBi
VSWR:	max. 2.0
Polarisation:	Vertical
Beamwidth:	360° Horizontal 25° Vertical
Impedance:	50 Ohm

WLAN antenna specifications

Frequency	2.40 - 2.50 GHz 5.000 - 7.125 GHz
Gain	2.40 - 2.50 GHz : 6 dBi 5.000 - 7.125GHz : 7.5 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications

Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Delivery

1 x QuWireless QuMax AX50MO Antenna
1 x Mounting Equipment

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer QuWireless
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuSpot for Teltonika RUTX50
SKU QWAX50S
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.5kg
- Manufacturer's model AX50S
- Click for more details https://quwireless.com/quspot-rutx50
- Dimensions 160 x 160 x 240 mm
