QuSpot for Teltonika RUTX10

Name: QuSpot for Teltonika RUTX10
Brand: QuWireless
SKU: QWAX10S
Price: 134.61 EUR
Availability: InStock

out of stock

SKU#: QWAX10S

QuSpot for Teltonika RUTX10

out of stock

SKU#: QWAX10S

QuWireless AX10S - Integrated outdoor Wi-Fi dual band 2,4 & 5 GHz omni-antenna + Bluetooth omni-antenna + mounting location for Teltonika RUTX10 (All-in-one)

134,61 €

Order by Request

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

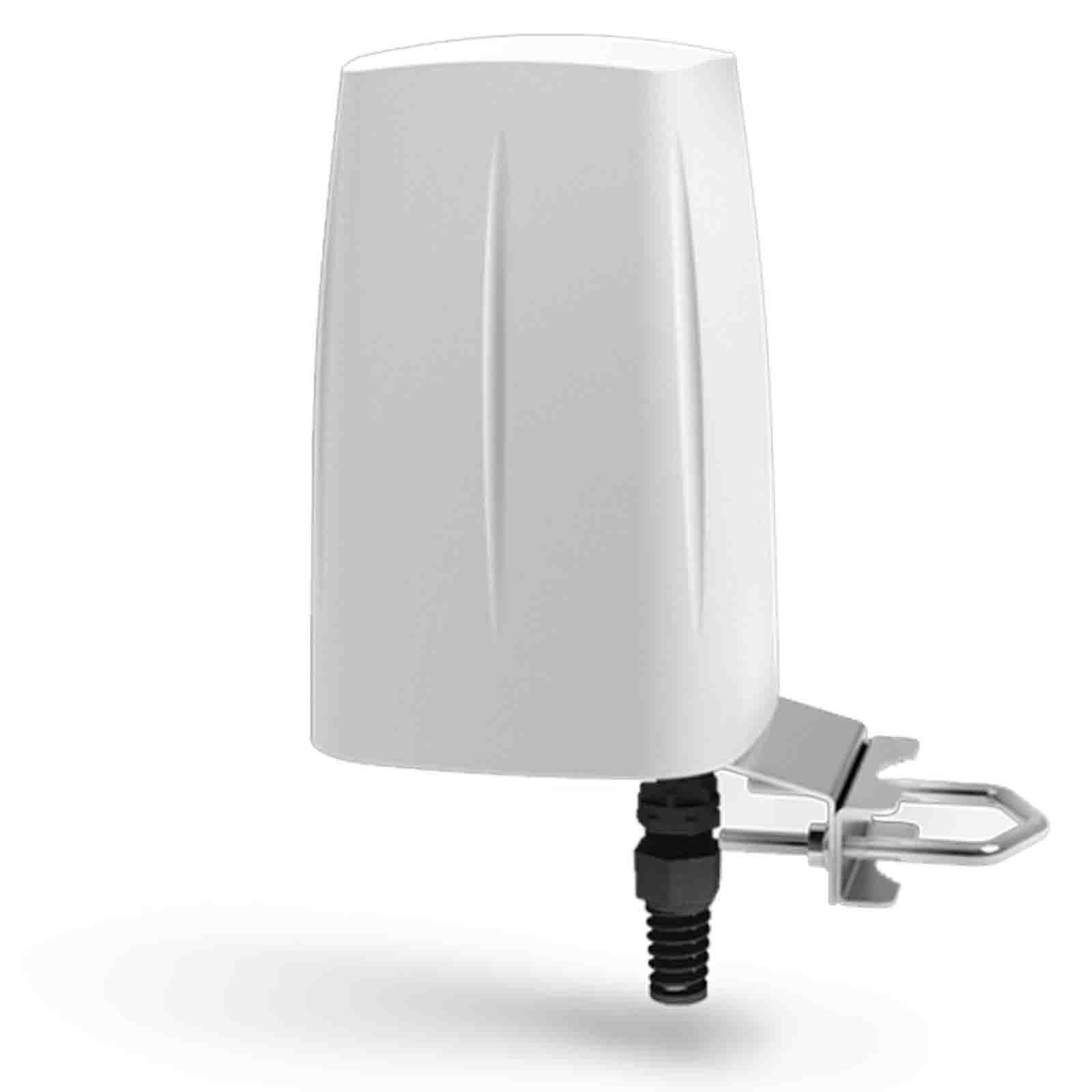

The QuSpot Wi-Fi antenna for the Teltonika RUTX10 router is a perfect outdoor device for mobile and fixed installations such as industrial sites, surveillance cameras, hotspots, yachts, boats, motorhomes, etc. It also features a built-in dual-band Wi-Fi antenna (2.4 and 5 GHz) and a Bluetooth omnidirectional antenna. When you use the RUTX10 router with the QuSpot antenna, you get an integrated solution with a built-in router and multi-band antennas in a single housing.

Wi-Fi antenna specifications
Frequency	2.40 - 2.50 GHz 4.70 - 6.00 GHz
Gain	2.40 - 2.50 GHz : 6 dBi 4.70 - 6.00 GHz : 7 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Bluetooth antenna specifications
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Order by Request
Manufacturer QuWireless
EAN 5907772035054
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuSpot for Teltonika RUTX10
SKU QWAX10S
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.5kg
- Manufacturer's model AX10S
- Click for more details https://quwireless.com/quspot-rutx10
- Dimensions 160 x 160 x 240 mm
- Factory delivery time 2 weeks
