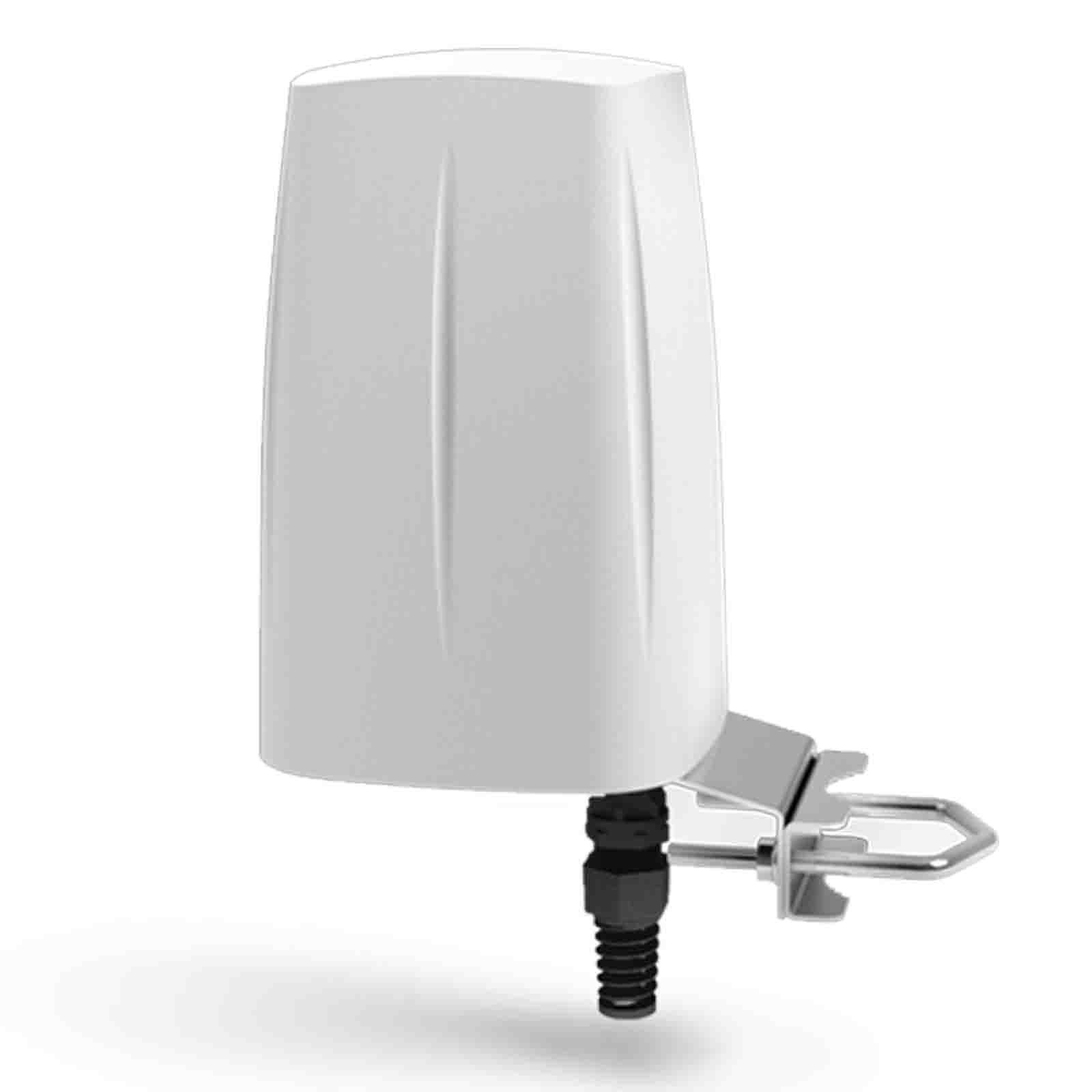

The QuSpot antenna is a perfect outdoor device for the Teltonika RUT956 or RUT955 router. It is ideal for mobile and fixed installations in industry, surveillance cameras, hotspot services, yachts, boats, motorhomes and RVs, etc. The antenna also includes built-in Wi-Fi and GPS antennas. When you use a RUT956 or RUT955 router with the QuSpot antenna, you get an integrated solution with the router and multiband antennas in the same enclosure.

LTE antenna details

Frequency:
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz

Supported LTE/5G bands:
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain:
0.694 - 0.96 GHz: 2 dBi
1.7 - 2.2 GHz: 2 dBi
2.2 - 2.7 GHz: 4 dBi

VSWR:
<1.60, max <2.00

Beamwidth:
360°/35° ±5°

Polarization:
Vertical

Impedance:
50 Ω

Wi‑Fi antenna details

Frequency: 2.40 - 2.50 GHz

Gain: 6 dBi

VSWR: <1.70, max <2.00

Beamwidth: 360°/25° ±5°

Polarization: Vertical

Impedance: 50 Ω

Mechanical details

Materials: ABS, aluminum, PTFE

Connector type: RJ45

Ingress protection: IP67

Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inches)

Weight: 1.5 kg (3.31 lbs)

Operating temperature: From -40°C to 75°C (From -40°F to 167°F)
