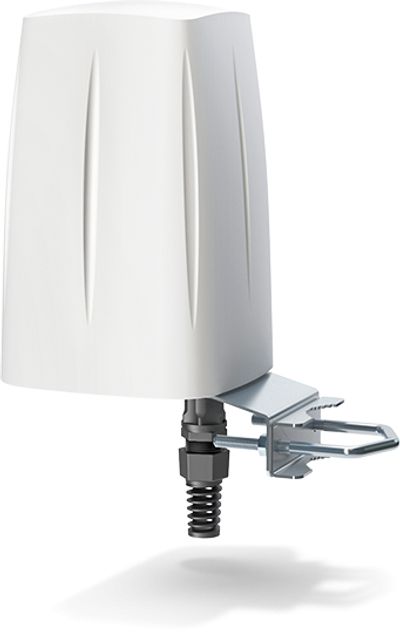

QuSpot for Teltonika RUT901/RUT951/RUT950/RUT900

Name: QuSpot for Teltonika RUT901/RUT951/RUT950/RUT900
Brand: QuWireless
SKU: QWA950S
Price: 154.85 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWA950S

QuSpot for Teltonika RUT901/RUT951/RUT950/RUT900

Temporarily out of stock

SKU#: QWA950S

QuWireless A950S - Integrated multi-band LTE omni antennas + WiFi omni antennas + mounting location for Teltonika RUT901, RUT951, RUT950 or 900 (All-in-one).

154,85 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

QuSpot omnidirectional LTE antenna for Teltonika RUT901, RUT951, RUT950 or RUT900 routers is a perfect device for outdoor use in mobile and fixed installations, such as industry, surveillance cameras, hotspots, yachts, boats, motorhomes, etc. It also features built-in omnidirectional Wi-Fi antennas. If you use a RUT901, RUT951, RUT950 or RUT900 router with the QuSpot antenna, you get an integrated complete solution with a built-in router and multiband antennas in one enclosure.

LTE antenna specs
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi
VSWR	<1.60, max <2.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

WI-FI antenna specs
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer QuWireless
EAN 5907772035023
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuSpot for Teltonika RUT901/RUT951/RUT950/RUT900
SKU QWA950S
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.5kg
- Manufacturer's model A950S
- Click for more details https://quwireless.com/quspot-rut950-rut900
- Dimensions 160 x 160 x 240 mm
- Factory delivery time 2 weeks
