QuSpot for Teltonika RUT360

Name: QuSpot for Teltonika RUT360
Brand: QuWireless
SKU: QWA360S
Price: 154.85 EUR
Availability: InStock

out of stock

SKU#: QWA360S

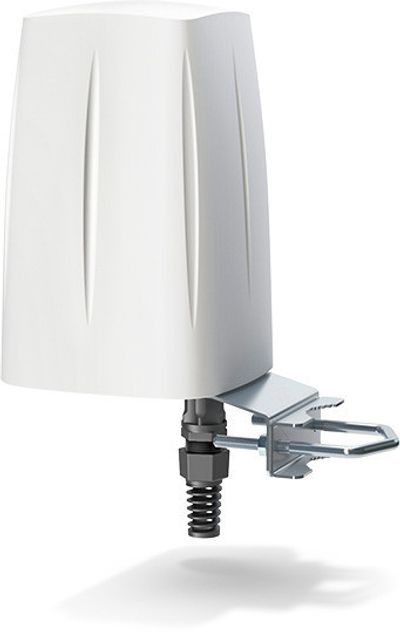

QuSpot for Teltonika RUT360

out of stock

SKU#: QWA360S

QuWireless A360S - Integrated multiband LTE omni-antennas + WiFi omni-antennas + mount for Teltonika RUT360 (All-in-one)

154,85 €

Order by Request

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The QuSpot omni LTE antenna for the Teltonika RUT360 router is the perfect outdoor unit for mobile and fixed installations, such as industrial environments, CCTV systems, hotspots, yachts, boats, motorhomes, caravans, etc. It also features integrated omnidirectional Wi-Fi antennas. If you use the RUT360 router with the QuSpot antenna, you get an integrated complete solution with a built-in router and multiband antennas in a single enclosure.

LTE Antenna specifications
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi
VSWR	<1.60, max <2.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

Wi-Fi antenna specifications
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Order by Request
Manufacturer QuWireless
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuSpot for Teltonika RUT360
SKU QWA360S
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.5kg
- Manufacturer's model A360S
- Click for more details https://quwireless.com/quspot-rut360
- Dimensions 160 x 160 x 240 mm
- Factory delivery time 2 weeks
