QuSpot for Teltonika RUT200/241/240/230

Name: QuSpot for Teltonika RUT200/241/240/230
Brand: QuWireless
SKU: QWA240S
Price: 133.59 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWA240S

QuSpot for Teltonika RUT200/241/240/230

Temporarily out of stock

SKU#: QWA240S

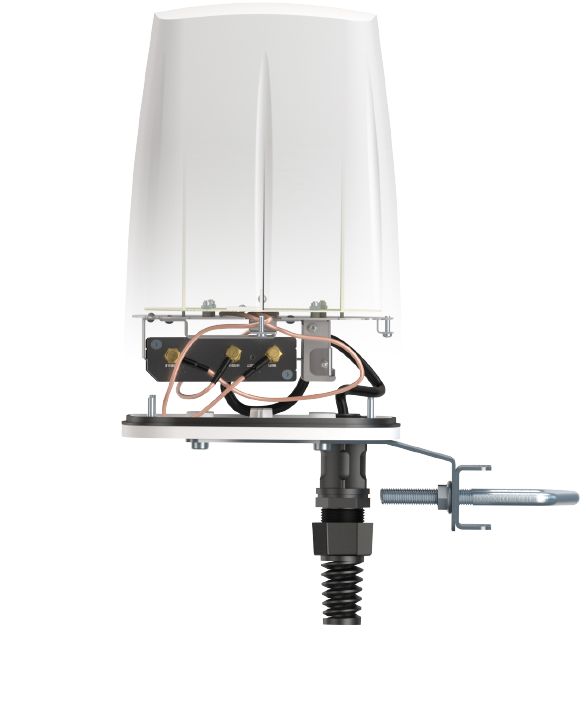

QuWireless A240S - Integrated multiband LTE omni-antenna + WiFi omni-antenna + mounting for Teltonika RUT200, RUT241, RUT240 or 230 (All-in-one)

133,59 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The QuSpot omni LTE antenna for Teltonika RUT200, RUT241, RUT240 or RUT230 routers is a perfect outdoor device for mobile and fixed installations, such as industrial, CCTV, hotspot, pleasure craft, boat, motorhome, caravan, etc. installations. It also has an embedded omni Wi‑Fi antenna. If you use a RUT200, RUT241, RUT240 or RUT230 device with the QuSpot antenna, you get an integrated complete solution with an embedded router and multi‑band antennas in a single enclosure.

LTE Antenna specifications
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi
VSWR	<1.60, max <2.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

Wi‑Fi Antenna specifications
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer QuWireless
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuSpot for Teltonika RUT200/241/240/230
SKU QWA240S
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.5kg
- Manufacturer's model A240S
- Click for more details https://quwireless.com/quspot-rut240-rut230
- Dimensions 160 x 160 x 240 mm
- Factory delivery time 2 weeks
