QuSpot for Teltonika TRB140 with housing

Name: QuSpot for Teltonika TRB140 with housing
Brand: QuWireless
SKU: QWA140SA
Price: 116.40 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWA140SA

QuSpot for Teltonika TRB140 with housing

Temporarily out of stock

SKU#: QWA140SA

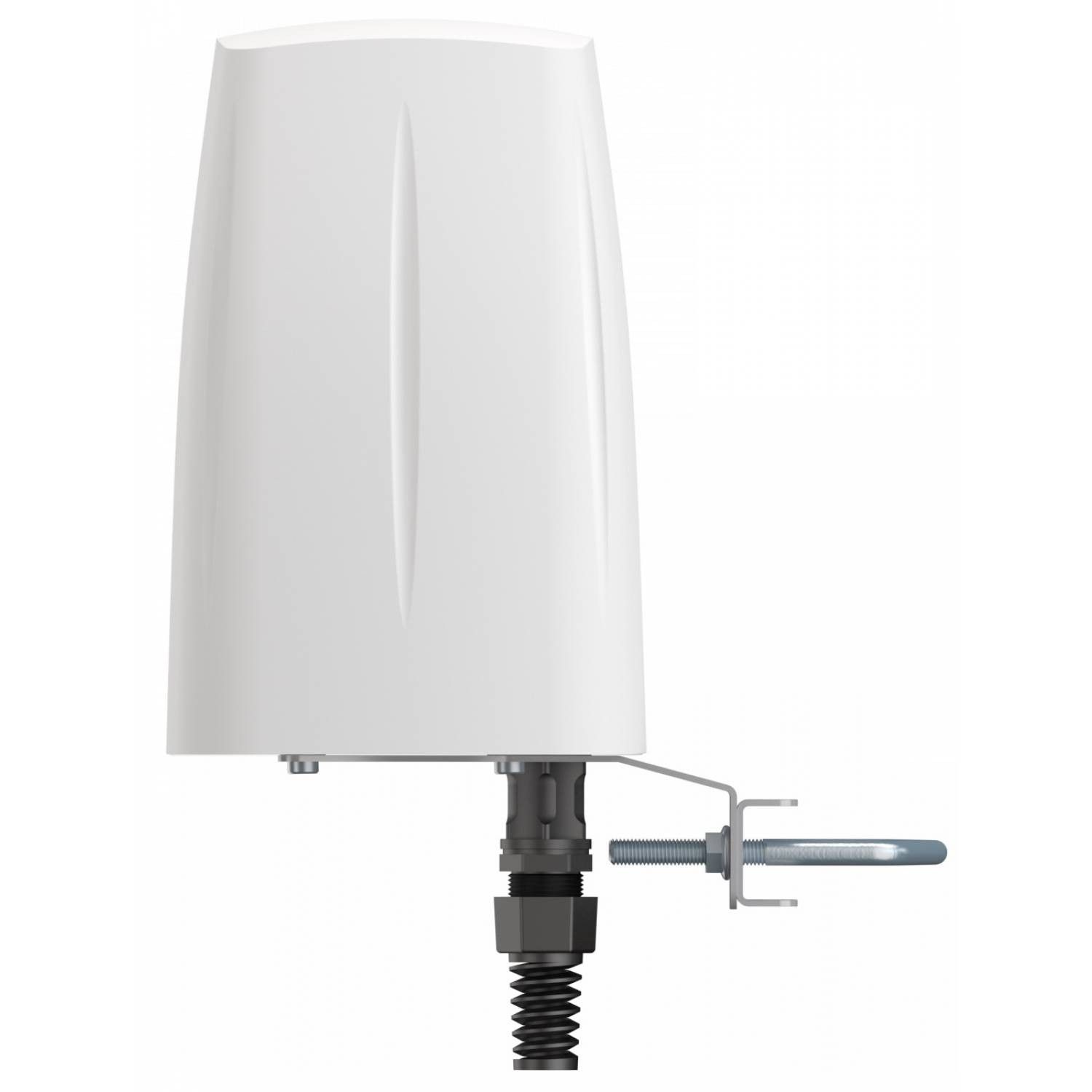

QuWireless A140S-A - Integrated multiband LTE omni antenna + mounting bracket for Teltonika TRB140 (All-in-one).

116,40 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

QuSpot omni LTE antenna for the Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations, such as industrial use, CCTV, hotspots, yachts, boats, motorhomes, caravans, etc. If you use the TRB140 with the QuSpot antenna, you get an integrated complete solution with a built-in router and multi-band antennas in a single enclosure.

LTE antenna specs
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi
VSWR	<1.60, max <2.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Temporarily out of stock in the online store
Manufacturer QuWireless
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuSpot for Teltonika TRB140 with housing
SKU QWA140SA
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.5kg
- Manufacturer's model A140S-A
- Dimensions 160 x 160 x 240 mm
- Factory delivery time 2 weeks
