QuSpot for Teltonika TRB140

Name: QuSpot for Teltonika TRB140
Brand: QuWireless
SKU: QWA140S
Price: 116.40 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWA140S

QuSpot for Teltonika TRB140

Temporarily out of stock

SKU#: QWA140S

QuWireless A140S - Integrated multi-band LTE omni antenna + mounting location for Teltonika TRB140 (All-in-one).

116,40 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

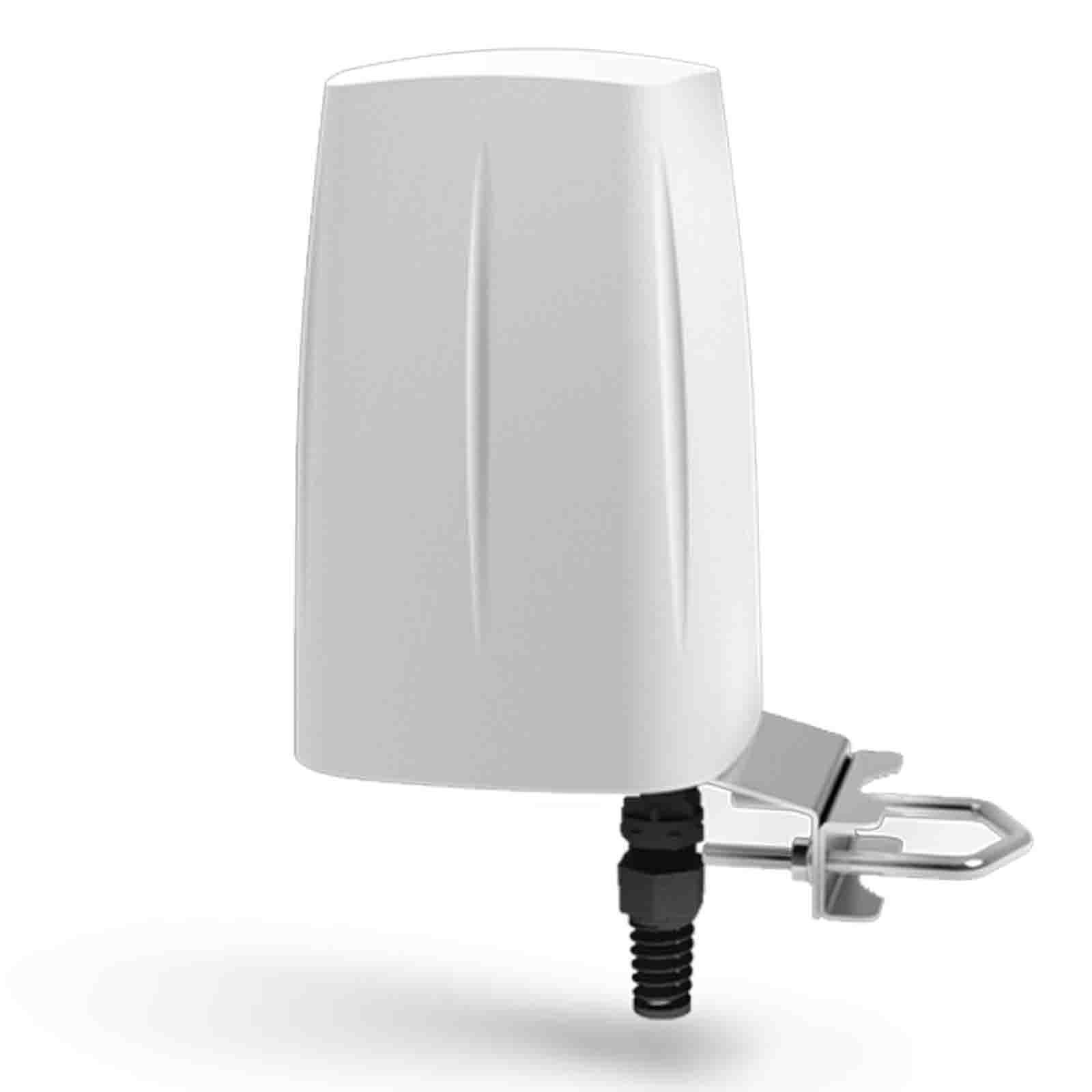

The QuSpot omni LTE antenna for the Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations such as industrial environments, CCTV systems, hotspots, yachts, boats, motorhomes, caravans, etc. If you use the TRB140 router with the QuSpot antenna, you get an integrated complete solution with a built-in router and multi-band antennas in a single enclosure.

LTE antenna specifications
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi
VSWR	<1.60, max <2.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Temporarily out of stock in the online store
Manufacturer QuWireless
EAN 5907772035009
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuSpot for Teltonika TRB140
SKU QWA140S
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.5kg
- Manufacturer's model A140S
- Dimensions 160 x 160 x 240 mm
- Factory delivery time 2 weeks
