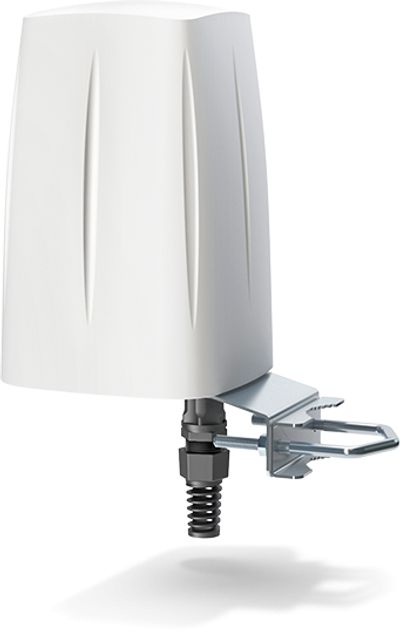

QuSpot MIMO 4x4 antenna is an LTE antenna with 4 SMA connectors for 2 embedded LTE modems or 1 MIMO 4x4 LTE modem. It is a perfect outdoor device for Teltonika RUTX12 and RUTX14 routers, and it can be used for example in industry, video surveillance systems, hotspot areas, yachts, boats, caravans and motorhomes. The antenna also includes embedded Wi‑Fi dual‑band antennas (2.4 and 5 GHz), a GPS antenna and a Bluetooth antenna. When you use a RUTX12 or RUTX14 router with the QuSpot antenna, you get an integrated complete solution where the router and multi-band antennas are housed in the same enclosure.

LTE antenna specs

Frequency:
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.5 - 2.7 GHz

Supported LTE\/5G bands:
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256

Gain:
0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.5 - 2.7 GHz : 3 dBi

VSWR:
<1.50, max <2.50

Beamwidth:
360°\/25° ±5°

Polarization:
Vertical

Impedance:
50 Ω

WI-FI antenna specs

Frequency:
2.40 - 2.50 GHz
4.70 - 6.00 GHz

Gain:
2.40 - 2.50 GHz: 6 dBi
4.70 - 6.00 GHz: 7 dBi

VSWR:
<1.70, max <2.00

Beamwidth:
360°\/25° ±5°

Polarization:
Vertical

Impedance:
50 Ω

Bluetooth antenna specs

Frequency:
2.20 - 2.70 GHz

Gain:
2 dBi

VSWR:
<1.70, max <2.00

Beamwidth:
360°\/25° ±5°

Polarization:
Vertical

Impedance:
50 Ω

Mechanical details

Materials:
ABS, aluminum, PTFE

Connector type:
RJ45

Ingress protection:
IP67

Dimensions:
160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch

Weight:
1.5 kg
3.31 lbs

Operating temperature:
From -40°C to 75°C
From -40°F to 167°F
