QuWireless A140I - If you use the TRB140 with the QuMini antenna, you get an integrated complete solution that combines an embedded router and multiband antennas in a single enclosure.

94,12 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

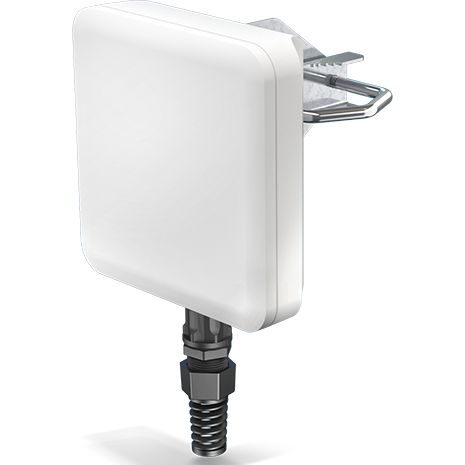

The QuMini omni LTE antenna for the Teltonika TRB140 router is a perfect, compact outdoor device intended for mobile and fixed installations, such as industrial, CCTV, hotspot, hunting, boating, camping, caravan, etc. installations. If you use the TRB140 with the QuMini antenna, you get an integrated complete solution with an embedded router and multiband antennas in a single enclosure.

* The TRB140 supports passive Power over Ethernet from version 4 onward (Teltonika now ships the TRB140 from version 7 or newer). If you have an older version of the TRB140, inform us before placing your order because the RJ-45 power supply must be replaced with a different version.

LTE antenna specifications
Frequency	0.7 - 1 GHz 1.7 - 2.2 GHz 2.5 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 69, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256
Gain	0.7 - 1 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.5 - 2.7 GHz : 3 dBi
VSWR	<1.50, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical details
Materials	ABS, polycarbonate, FR4
Connector type	RJ45
Ingress protection	IP67
Dimensions	165 x 165 x 54 mm 6.50 x 6.50 x 2.12 inch
Weight	0.8 kg 1.76 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Temporarily out of stock in the online store
Manufacturer QuWireless
EAN 5907772035290
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuMini for Teltonika TRB140
SKU QWA140I
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 0.8kg
- Manufacturer's model A140I
- Click for more details https://quwireless.com/qumini-trb140
- Dimensions 165 x 165 x 54 mm
- Factory delivery time 2 weeks
