QuMax XR2 bi-directional kit for Teltonika RUTX12

Name: QuMax XR2 bi-directional kit for Teltonika RUTX12
Brand: QuWireless
SKU: QWAXR12
Price: 323.88 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWAXR12

QuMax XR2 bi-directional kit for Teltonika RUTX12

Temporarily out of stock

SKU#: QWAXR12

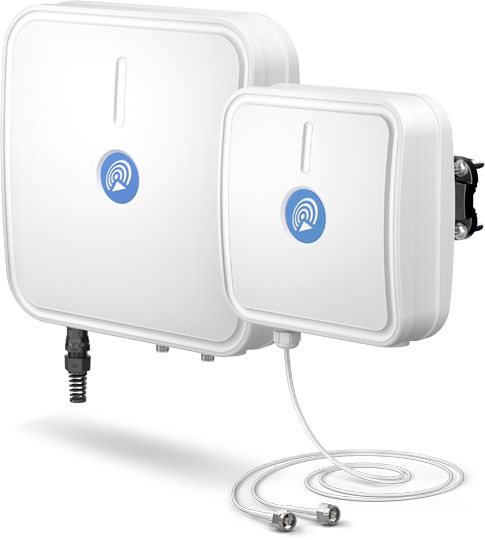

QuWireless AXR12 - A set of two separate eXtra Range LTE directional antennas for a two-way connection to two different LTE base stations. The main antenna also integrates dual-band Wi-Fi, GPS and Bluetooth antennas and has space for mounting a Teltonika RUTX12. The other antenna is a directional LTE XR antenna only.

323,88 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

QuMax XR2 is a bi-directional LTE eXtra Range antenna set (two separate antennas) that can be connected to two different LTE base stations (it can also be connected to a single base station to achieve a larger throughput share from that base station). The main antenna additionally includes built-in Wi-Fi dual band, GPS and Bluetooth antennas, 2x Nf connectors for the second LTE antenna and space to install a RUTX12 router inside the antenna enclosure. The second antenna is a simple LTE Extra Range directional antenna and is housed in a smaller enclosure. The QuMax XR2 series is designed for long-range connections to LTE base stations, including connections to two different base stations, which provides optimal usability for operations.

LTE antenna specs (master & slave)
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7 dBi
Front-to-Back	>10 dB
VSWR	<1.70, max <2.00
Beamwidth	70°/70° ±15°
Polarization	Dual polarized X-Pol
Impedance	50 Ω

WI-FI antenna specs
Frequency	2.40 - 2.50 GHz 4.70 - 6.00 GHz
Gain	2.40 - 2.50 GHz : 6 dBi 5.00 - 6.00 GHz : 4 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

BLUETOOTH antenna specs
Frequency	2.40 - 2.50 GHz
Gain	2.40 - 2.50 GHz : 3 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications (master)
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45 + 2x Nf
Ingress protection	IP67
Dimensions	392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch
Weight	3.7 kg 8.16 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Mechanical specifications (slave)
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress protection	IP67
Dimensions	272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch
Weight	1.8 kg 3.97 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F
Cable length	70cm
Cable type	LMR195 white
Connector type	2x Nm plug

Product Information

Availability Temporarily out of stock in the online store
Manufacturer QuWireless
EAN 5907772035481
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuMax XR2 bi-directional kit for Teltonika RUTX12
SKU QWAXR12
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.8kg
- Manufacturer's model AXR12
- Click for more details https://quwireless.com/qumax-xr2-rutx12
- Dimensions 272 x 276 x 96 mm
- Factory delivery time 2 weeks
