QuMax XR LTE for RUT240/950/955/X09/X11

Name: QuMax XR LTE for RUT240/950/955/X09/X11
Brand: QuWireless
SKU: QWAXRL
Price: 163.97 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWAXRL

QuMax XR LTE for RUT240/950/955/X09/X11

Temporarily out of stock

SKU#: QWAXRL

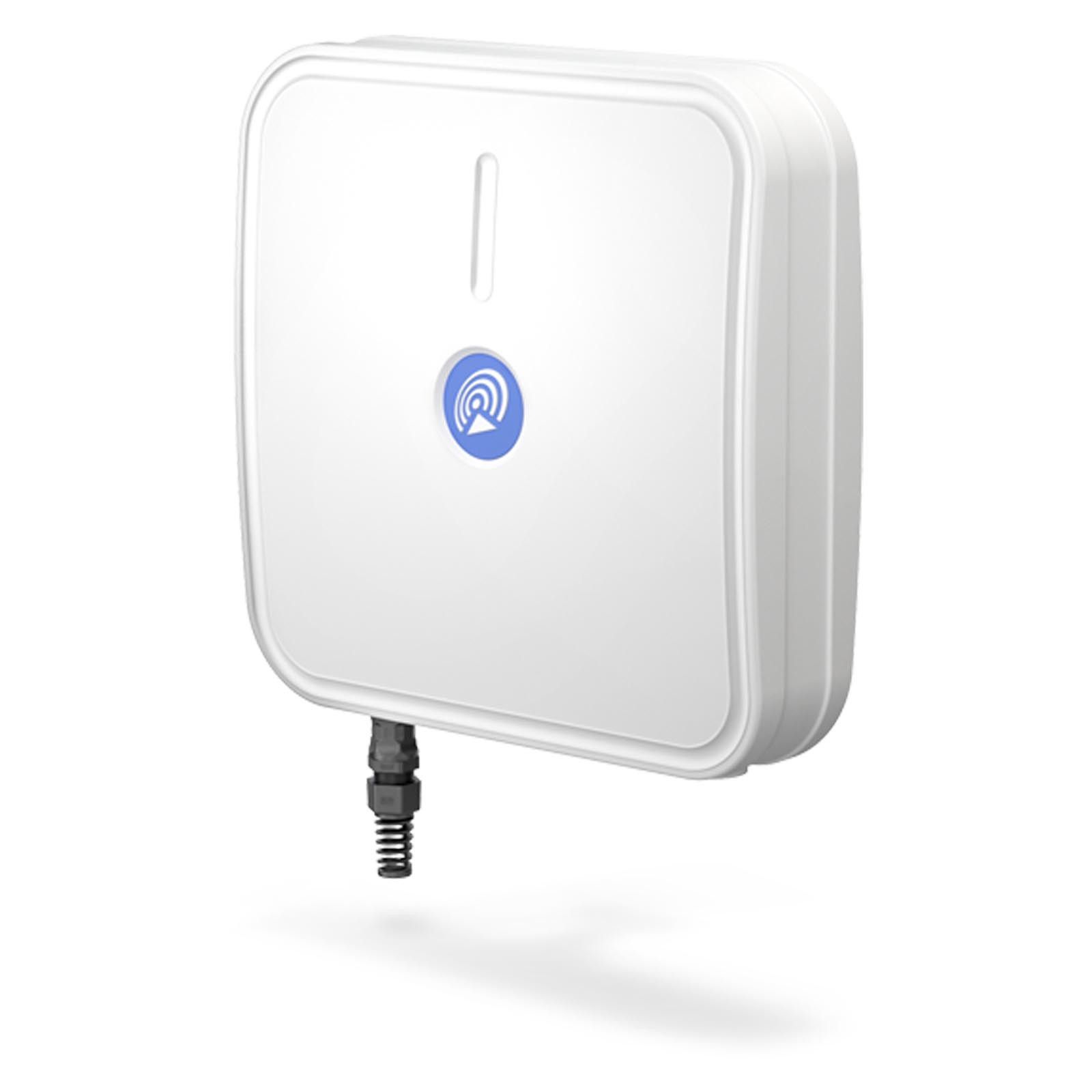

QuWireless AXRL - Integrated outdoor multi-band eXtra Range LTE directional antenna + mounting bracket for Teltonika RUT200/240/241/901/950/951/955/956/X09/X11 antenna.

163,97 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distances to the base station. It is designed for installing a Teltonika router into an IP67 enclosure. It is the preferred choice for fixed installations in industrial environments. The antenna enclosure also accommodates Teltonika's internal GPS and Wi-Fi antennas.

Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.

LTE antenna specifications
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7 dBi
Front-to-Back	>10 dB
VSWR	<1.70, max <2.00
Beamwidth	70°/70° ±15°
Polarization	Dual polarized X-Pol
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45
Ingress protection	IP67
Dimensions	392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch
Weight	3.7 kg 8.16 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Temporarily out of stock in the online store
Manufacturer QuWireless
EAN 5907772035450
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuMax XR LTE for RUT240/950/955/X09/X11
SKU QWAXRL
Attributes
- IP protection class IP67
- Weight 3.7kg
- Manufacturer's model AXRL
- Dimensions 392 x 392 x 99 mm
- Factory delivery time 2 weeks
