QuMax XR All In

Name: QuMax XR All In
Brand: QuWireless
SKU: QWAXRA
Price: 207.48 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWAXRA

QuMax XR All In

Temporarily out of stock

SKU#: QWAXRA

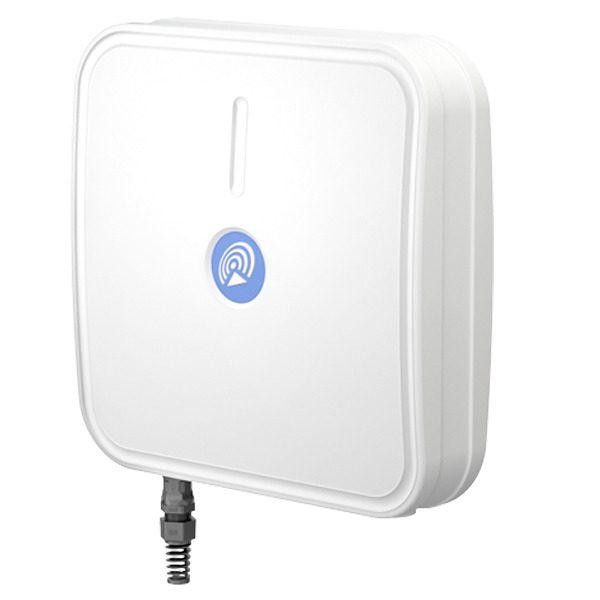

QuWireless AXRA - Integrated outdoor multi-band eXtra Range LTE directional antenna + Wi-Fi dual-band 2,4 & 5 GHz omni-antenna + Bluetooth antenna + GPS antenna + mounting for Teltonika RUT200/240/241/901/950/951/955/956/X09/X11 (All-in-one)

207,48 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

QuMAX eXtra Range All In offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with a long distance to the base station. It also features built-in dual-band Wi-Fi (2.4 and 5 GHz) omnidirectional antennas, a GPS antenna and a Bluetooth antenna. It is designed to be installed inside the Teltonika RUT200/240/241/901/950/951/955/956/X09/X11 router's IP67 enclosure. It is the primary choice for fixed installations in industrial environments.

LTE antenna specifications
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7 dBi
Front-to-Back	>10 dB
VSWR	<1.70, max <2.00
Beamwidth	70°/70° ±15°
Polarization	Dual polarized X-Pol
Impedance	50 Ω

Wi-Fi antenna specifications
Frequency	2.40 - 2.50 GHz 4.70 - 6.00 GHz
Gain	2.40 - 2.50 GHz : 6 dBi 4.70 - 6.00 GHz : 7 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Bluetooth antenna specifications
Frequency	2.30 - 2.60 GHz
Gain	3 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45
Ingress protection	IP67
Dimensions	392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch
Weight	3.7 kg 8.16 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Temporarily out of stock in the online store
Manufacturer QuWireless
EAN 5907772035474
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuMax XR All In
SKU QWAXRA
Attributes
- IP protection class IP67
- Weight 3.7kg
- Manufacturer's model AXRA
- Dimensions 392 x 392 x 99 mm
- Factory delivery time 2 weeks
