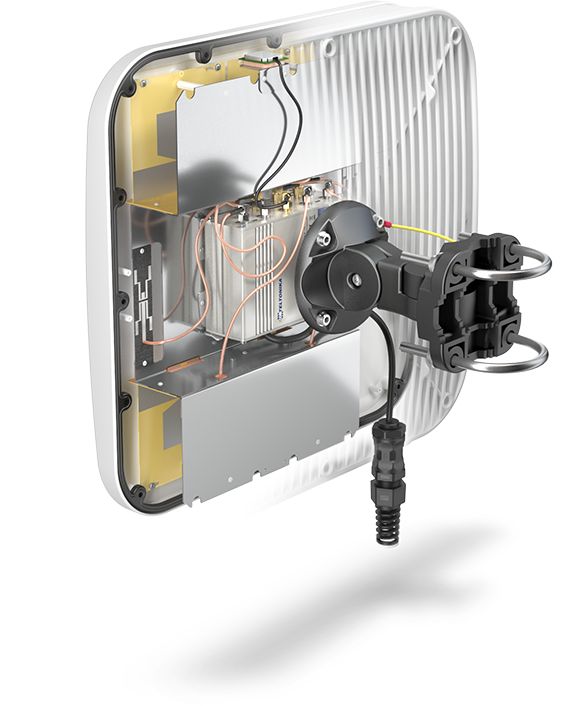

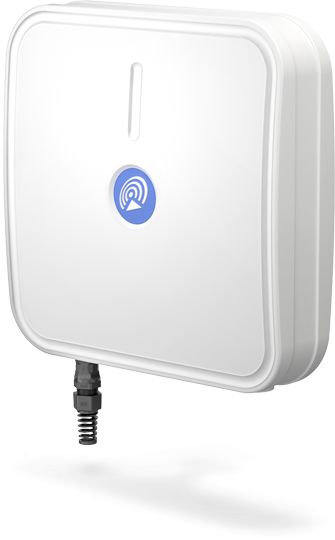

QuMAX antenna is an integrated solution that includes a Multi-Band 4G LTE MIMO 4x4 directional antenna, GPS antenna, Bluetooth antenna, two integrated WiFi antennas and a weatherproof enclosure for TELTONIKA RUTX12 or RUTX14 router.
With the QuMAX antenna you can achieve full performance for your 4G connection. The integrated 6dBi 4G directional antenna (4x4 MIMO) connects directly to the TELTONIKA router antenna connector. When the QuMAX antenna is properly aligned, it provides a stable 4G connection. The QuMAX 4G antenna covers all 4G frequency bands (LTE 800, LTE 1800, LTE 2600).
The QuMAX antenna enclosure is fully weatherproof (IP67) and is designed specifically for outdoor use. This allows you to use the QuMax antenna even in extreme weather conditions.
Note! The TELTONIKA RUTX12 or RUTX14 router must be powered via PoE
Features
- Outdoor antenna works in all weather conditions, IP67 protected
- Antenna is perfectly matched with the router
- Passive PoE support
- Easy to install
4G antenna specs
| Antenna type: |
4x4 MIMO 4G Directional Antenna |
| Frequency range: |
694 - 966MHz
1710 - 2200MHz
2200 - 2690MHz |
| Power gain: |
4dBi
5dBi
6dBi |
| VSWR: |
max. 2.0
max. 1.6
max. 1.6 |
| Polarisation: |
Vertical |
| Beam width: |
90° Horizontal
90° Vertical |
| Impedance: |
50 Ohm |
WLAN antenna specs
| Antenna type: |
WLAN omnidirectional |
| Frequency range: |
2.4 - 2.5 GHz
4.7 - 6.0 GHz |
| Power gain: |
6dBi
7dBi |
| VSWR: |
max. 2.0
max. 2.0 |
| Polarisation: |
Vertical |
| Signal aperture angle: |
360° Horizontal
25° Vertical |
| Impedance: |
50 Ohm |
BT antenna specs
| Frequency range: |
2.4 - 2.5 GHz |
| Power gain: |
3dBi |
| VSWR: |
max. 2.0 |
| Polarisation: |
Vertical |
| Signal aperture angle: |
360° Horizontal
25° Vertical |
| Impedance: |
50 Ohm |
Mechanical details
| Material: |
ABS, aluminium, PTFE, Fiberglass |
| Application area: |
Indoor and outdoor (IP67) |
| Connector type |
RJ45 |
| Operating temperature: |
-40° ... 75° C |
| Dimensions: |
39.2 x 29.2 x 9.9 cm |
| Weight: |
3.7 kg |
Delivery
| 1 x QuMAX Antenna for TELTONIKA RUTX12 / RUTX14 |
| 1 x Mounting Equipment |
