QuMax for Teltonika RUTX11

Temporarily out of stock

SKU#: QWAX11M

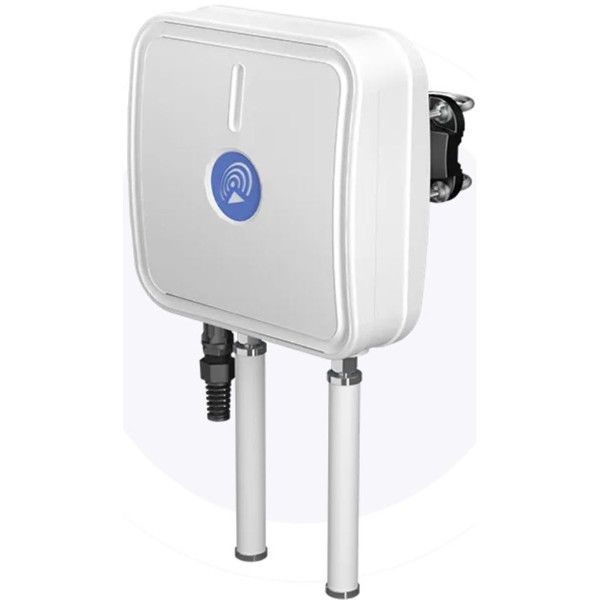

QuWireless AX11M - Integrated high-power LTE directional antenna intended for outdoor use + outdoor Wi‑Fi dual-band 2,4 and 5 GHz omni antenna + Bluetooth antenna + GPS antenna + mounting location for Teltonika RUTX11 (All-in-one).

195,34 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to the base station. It is designed to be installed with the Teltonika RUTX11 router in an IP67 enclosure. It is the primary choice for fixed installations in industrial environments. It also features a built-in GPS antenna, a Bluetooth antenna, and external dual‑power Wi-Fi 2.4 and 5 GHz omni antennas.

LTE Antenna specs
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi
Front-to-Back	>8 dB
VSWR	<1.30, max <1.80
Beamwidth	90°/90° ±30°
Polarization	Vertical
Impedance	50 Ω

WI-FI Antenna specs
Frequency	2.40 - 2.50 GHz 4.70 - 6.00 GHz
Gain	2.40 - 2.50 GHz : 6 dBi 4.70 - 6.00 GHz : 7 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

BLUETOOTH Antenna specs
Frequency	2.30 - 2.60 GHz
Gain	3 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection	IP67
Dimensions	272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch
Weight	1.8 kg 3.97 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Made to order, delivery time usually 7-14 days
Manufacturer QuWireless
EAN 5907772035139
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuMax for Teltonika RUTX11
SKU QWAX11M
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.8kg
- Manufacturer's model AX11M
- Click for more details https://quwireless.com/qumax-rutx11
- Dimensions 272 x 276 x 96 mm
- Factory delivery time 2 weeks
