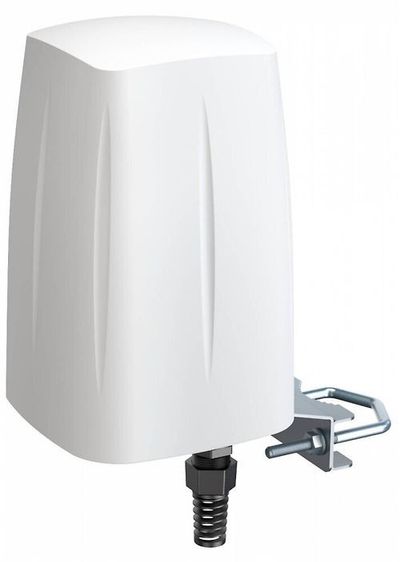

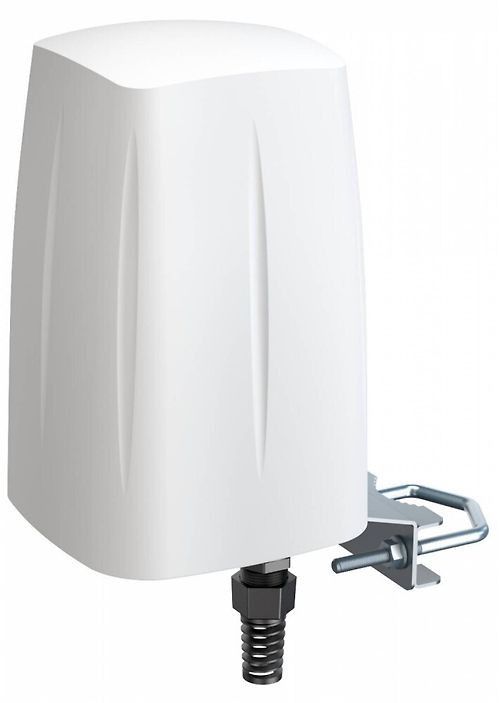

The QuSpot omni LTE antenna for the Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations such as industrial sites, video surveillance systems, hotspot areas, hunting lodges, boats, motorhomes and caravans. It includes an embedded GPS antenna. If you use the RUTX09 router with the QuSpot antenna, you get an integrated solution with the router and multiband antennas housed in the same enclosure.

LTE antenna specifications

Frequency:
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz

Supported LTE/5G bands:
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain:
0.694 - 0.96 GHz: 2 dBi
1.7 - 2.2 GHz: 2 dBi
2.2 - 2.7 GHz: 4 dBi

VSWR:
<1.60, max <2.00

Beamwidth:
360°/35° ±5°

Polarization:
Vertical

Impedance:
50 Ω

Mechanical specifications

Materials:
ABS, aluminum, PTFE

Connector type:
RJ45

Ingress protection:
IP67

Dimensions:
160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch

Weight:
1.5 kg
3.31 lbs

Operating temperature:
From -40°C to 75°C
From -40°F to 167°F
