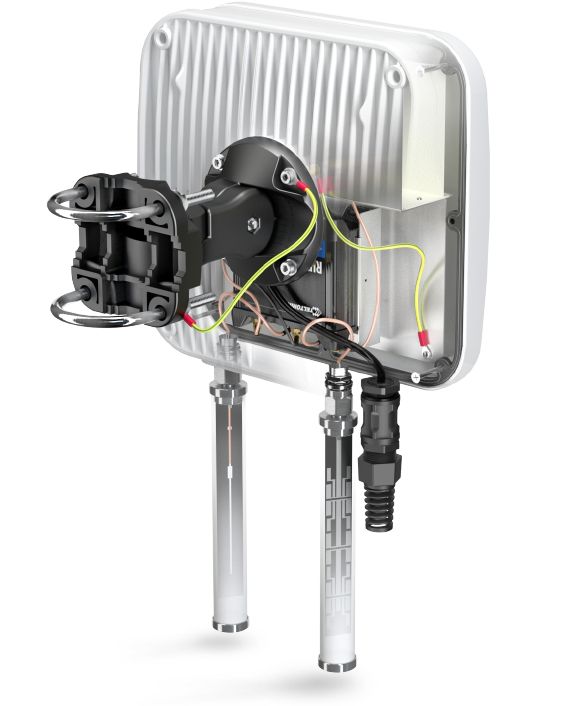

The QuMAX antenna is an integrated solution that includes a Multi-Band 4G directional antenna and a weatherproof enclosure for mounting a TELTONIKA RUT955 or RUT956 router and a weatherproof WiFi directional antenna.
The QuMAX antenna allows you to get full performance from your 4G connection. The integrated 6dBi 4G directional antenna connects directly to the TELTONIKA router antenna connector. When the QuMAX antenna is correctly aligned, it provides a stable 4G connection. The QuMAX 4G antenna covers all 4G frequency bands (LTE 800, LTE 1800, LTE 2600). The delivery also includes a weatherproof WiFi directional antenna, which is also connected to the Teltonika router with minimal loss. This gives you good reception and enables you to provide your WiFi devices with a reliable WiFi and Internet signal.
The QuMAX antenna enclosure is fully weatherproof (IP67) and is specifically designed for outdoor use. This allows you to use the QuMAX antenna even in extreme weather conditions.
Note! Power must be supplied to the TELTONIKA RUT955 and RUT956 router using PoE
Features
- The external antenna works in all weather conditions, IP67 protected
- The antenna pairs perfectly with the router
- Passive PoE support
- Easy to install
4G antenna specifications
| Antenna type: |
4G Directional Antenna |
| Frequency range: |
694 - 966MHz
1710 - 2200MHz
2200 - 2690MHz |
| Power gain: |
4dBi
5dBi
6dBi |
| VSWR: |
max. 2.0
max. 1.6
max. 1.6 |
| Polarisation: |
Vertical |
| Beam width: |
90° Horizontal
90° Vertical |
| Impedance: |
50 Ohm |
WLAN antenna specifications
| Antenna type: |
WLAN omnidirectional |
| Frequency range: |
2.4 - 2.5 GHz
4.7 - 6.0 GHz |
| Power gain: |
6dBi
7dBi |
| VSWR: |
max. 2.0
max. 2.0 |
| Polarisation: |
Vertical |
| Signal aperture angle: |
360° Horizontal
25° Vertical |
| Impedance: |
50 Ohm |
Mechanical details
| Material: |
ABS, aluminium, PTFE, Fiberglass |
| Application area: |
Indoor and outdoor (IP67) |
| Operating temperature: |
-40° ... 75° C |
| Dimensions: |
27.2 x 27.6 x 9.6 cm |
| Weight: |
1.8 kg |
Delivery
| 1 x QuMAX Antenna for TELTONIKA RUT955 / RUT956 |
| 2 x Wi-Fi Omni Antenna |
| 1 x Mounting Equipment |
