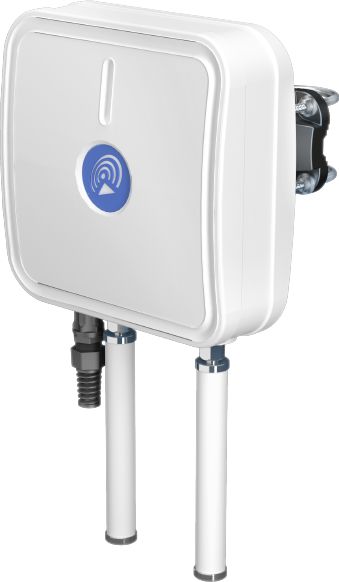

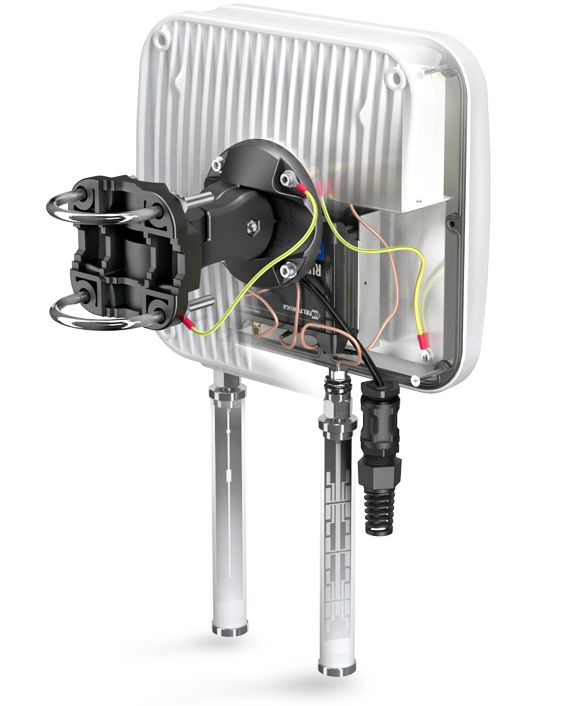

QuMAX antenna is an integrated solution that includes a Multi-Band 4G directional antenna and a weatherproof enclosure for mounting a TELTONIKA RUT901, RUT950, RUT951 or RUT900 router and a weatherproof WiFi directional antenna.
With the QuMAX antenna you can get full performance from your 4G connection. The integrated 6dBi 4G directional antenna connects directly to the TELTONIKA router's antenna connector. When the QuMAX antenna is properly aligned, it provides a stable 4G connection. The QuMAX 4G antenna covers all 4G frequency bands (LTE 800, LTE 1800, LTE 2600). The delivery also includes a weatherproof WiFi antenna that is connected to the Teltonika router with almost no loss. This gives you good reception and allows you to provide your WiFi devices with a reliable WiFi and Internet signal.
The QuMAX antenna enclosure is fully weatherproof (IP67) and is specifically designed for outdoor use. This allows you to use the QuMAX antenna even in extreme weather conditions.
Note! Power for TELTONIKA RUT900, RUT950 and RUT951 routers must be supplied via PoE
Features
- Outdoor antenna works in all weather conditions, IP67 protected
- Antenna is a perfect match for the router
- Passive PoE support
- Easy to install
4G antenna specifications
| Antenna type: |
4G Directional Antenna |
| Frequency range: |
694 - 966MHz
1710 - 2200MHz
2200 - 2690MHz |
| Power gain: |
4dBi
5dBi
6dBi |
| VSWR: |
max. 2.0
max. 1.6
max. 1.6 |
| Polarisation: |
Vertical |
| Beam width: |
90° Horizontal
90° Vertical |
| Impedance: |
50 Ohm |
WLAN antenna specifications
| Antenna type: |
WLAN omnidirectional |
| Frequency range: |
2.4 GHz
5 GHz |
| Power gain: |
6dBi
7dBi |
| VSWR: |
max. 2.0
max. 2.0 |
| Polarisation: |
Vertical |
| Signal aperture angle: |
360° Horizontal
25° Vertical |
| Impedance: |
50 Ohm |
Mechanical details
| Material: |
ABS, aluminium, PTFE, Fiberglass |
| Application area: |
Indoor and outdoor (IP67) |
| Operating temperature: |
-40° ... 75° C |
| Dimensions: |
27.2 x 27.6 x 9.6 cm |
| Weight: |
1.8 kg |
Package contents
| 1 x QuMAX Antenna for TELTONIKA RUT900 / RUT901 / RUT950 / RUT951 |
| 2 x Wi-Fi Omni Antenna |
| 1 x Mounting Equipment |
