QuMax for Teltonika RUT360

Name: QuMax for Teltonika RUT360
Brand: QuWireless
SKU: QWA360M
Price: 175.10 EUR
Availability: InStock

Temporarily out of stock

SKU#: QWA360M

QuMax for Teltonika RUT360

Temporarily out of stock

SKU#: QWA360M

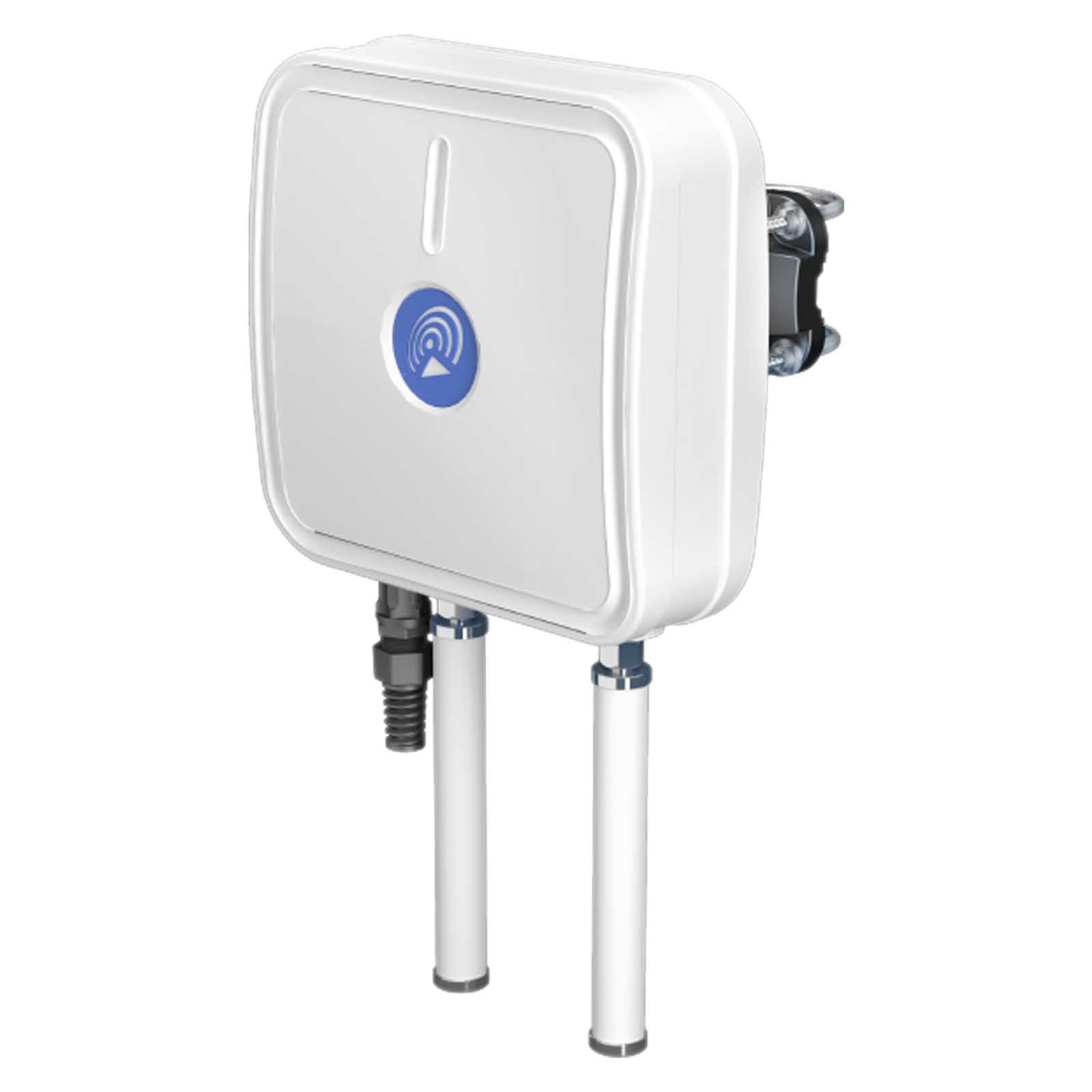

QuWireless A360M - Integrated multi-band high-power LTE directional antenna for outdoor use + outdoor Wi-Fi omni antenna + mounting location for Teltonika RUT360 (All-in-one).

175,10 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

QuMAX offers the most powerful directional LTE antenna among all QuWireless antennas. It is dedicated to connections with long distance to the base station. It is designed for mounting the Teltonika RUT360 router into an IP67 protective enclosure. It is the preferred choice for fixed installations in industrial environments. It also features built-in external Wi‑Fi omni antennas.

LTE Antenna specifications
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi
Front-to-Back	>8 dB
VSWR	<1.30, max <1.80
Beamwidth	90°/90° ±30°
Polarization	Vertical
Impedance	50 Ω

Wi‑Fi Antenna specifications
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

Mechanical specifications
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection	IP67
Dimensions	272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch
Weight	1.8 kg 3.97 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

Product Information

Availability Temporarily out of stock in the online store
Manufacturer QuWireless
Product path Home Telecommunications Telecommunication Antennas Mobile Network Antennas QuMax for Teltonika RUT360
SKU QWA360M
Attributes
- Operating temperature -40...+75°C
- IP protection class IP67
- Weight 1.8kg
- Manufacturer's model A360M
- Click for more details https://quwireless.com/qumax-rut360
- Dimensions 272 x 276 x 96 mm
- Factory delivery time 2 weeks
