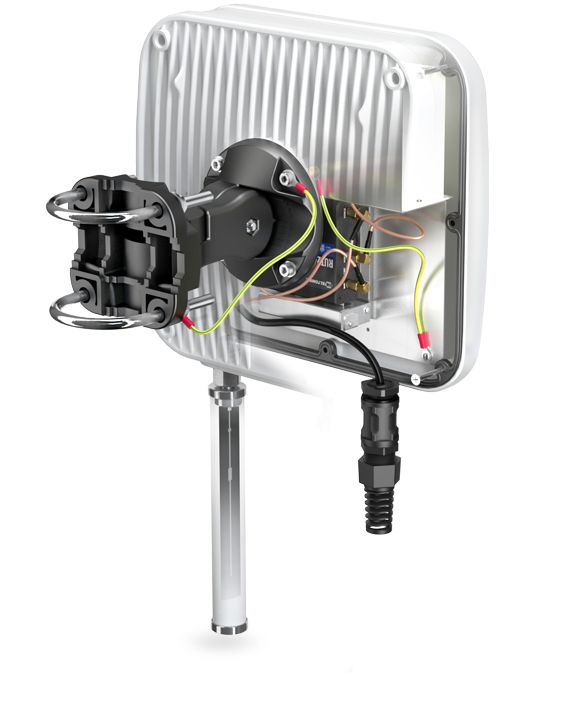

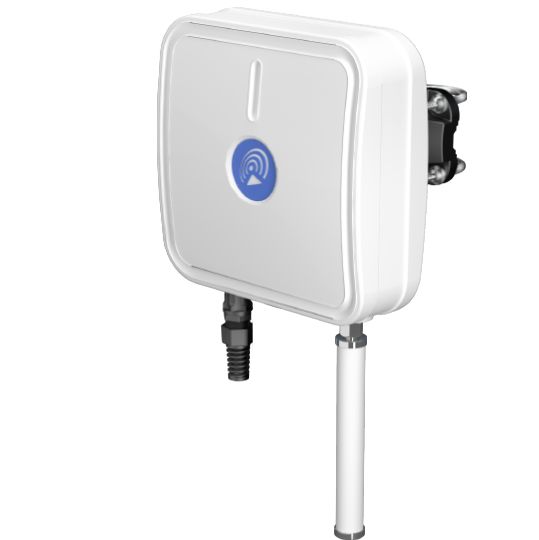

QuMAX antenna is an integrated solution that includes a Multi-Band 4G directional antenna, a weatherproof enclosure for installing a TELTONIKA RUT200, RUT230, RUT240 or RUT241 router and a weatherproof WiFi directional antenna.
With the QuMAX antenna you can unlock full performance for your 4G connection. The integrated 6dBi 4G directional antenna connects directly to the TELTONIKA router antenna connector. When the QuMAX antenna is correctly aligned, it provides a stable 4G connection. The QuMAX 4G antenna covers all 4G frequency bands (LTE 800, LTE 1800, LTE 2600). The delivery also includes a weatherproof WiFi directional antenna, which is also connected to the Teltonika router with virtually no loss. This gives you good reception and allows you to provide your WiFi devices with a reliable WiFi and Internet signal.
The QuMAX antenna housing is fully weatherproof (IP67) and is specifically designed for outdoor use. This lets you use the QuMax antenna even in extreme weather conditions.
Note! Power supply for TELTONIKA RUT200, RUT230, RUT240 and RUT241 routers must be provided via PoE
Features
- The external antenna operates in all weather conditions, IP67 protected
- The antenna fits perfectly with the router
- Passive PoE support
- Easy to install
4G antenna specifications
| Antenna type: |
4G Directional Antenna |
| Frequency range: |
694 - 966MHz
1710 - 2200MHz
2200 - 2690MHz |
| Power gain: |
4dBi
5dBi
6dBi |
| VSWR: |
max. 2.0
max. 1.6
max. 1.6 |
| Polarisation: |
Vertical |
| Beam width: |
90° Horizontal
90° Vertical |
| Impedance: |
50 Ohm |
WLAN antenna specifications
| Antenna type: |
WLAN omnidirectional |
| Frequency range: |
2.4 GHz
5 GHz |
| Power gain: |
6dBi
7dBi |
| VSWR: |
max. 2.0
max. 2.0 |
| Polarisation: |
Vertical |
| Signal aperture angle: |
360° Horizontal
25° Vertical |
| Impedance: |
50 Ohm |
Mechanical details
| Material: |
ABS, aluminium, PTFE, Fiberglass |
| Application area: |
Indoor and outdoor (IP67) |
| Operating temperature: |
-40° ... 75° C |
| Dimensions: |
27.2 x 27.6 x 9.6 cm |
| Weight: |
1.8 kg |
Delivery contents
| 1 x QuWireless QuMax A240M Antenna for TELTONIKA RUT200 / RUT230 / RUT240 / RUT241 |
| 1 x Wi-Fi Omni Antenna |
| 1 x Mounting accessories |
