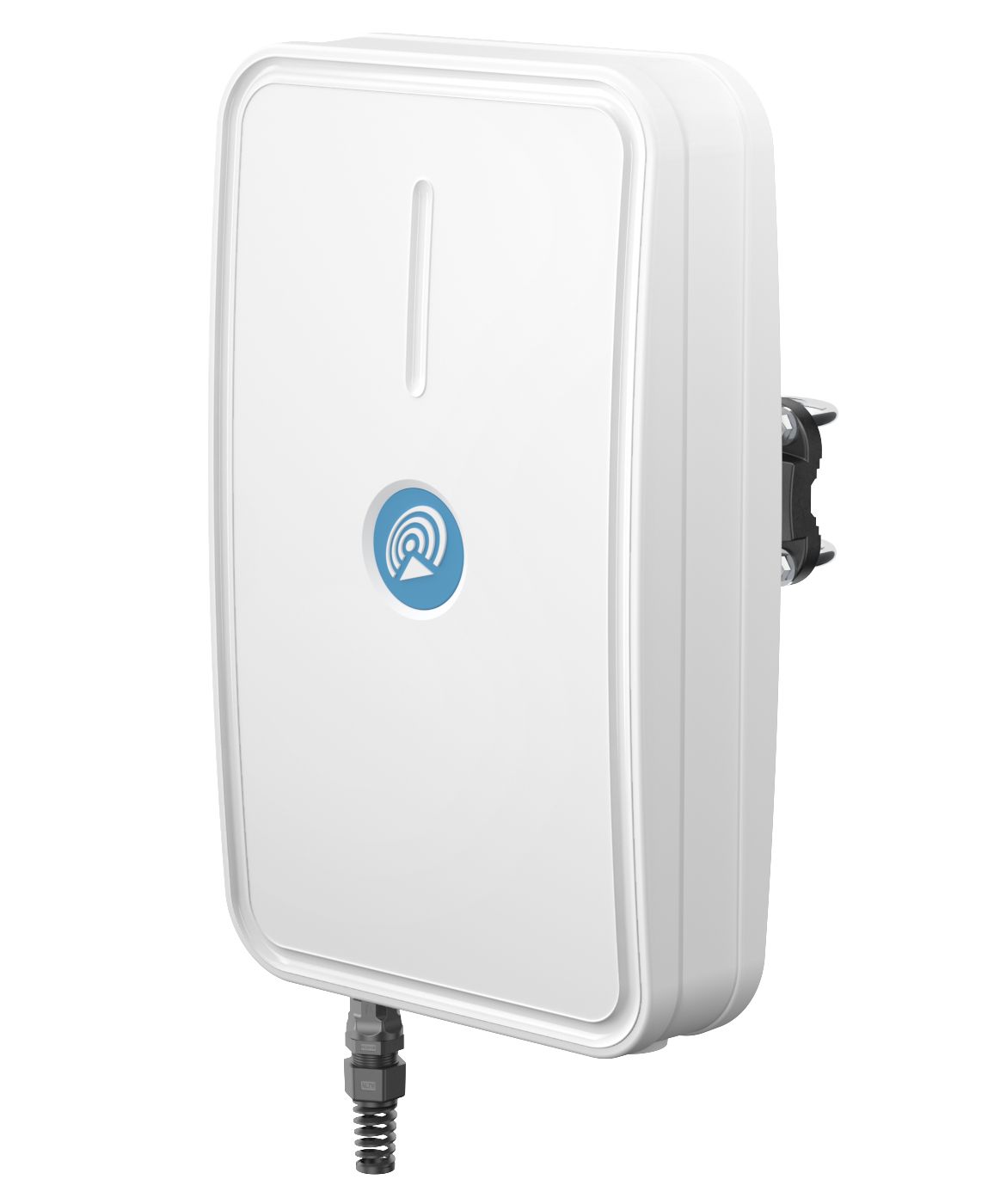

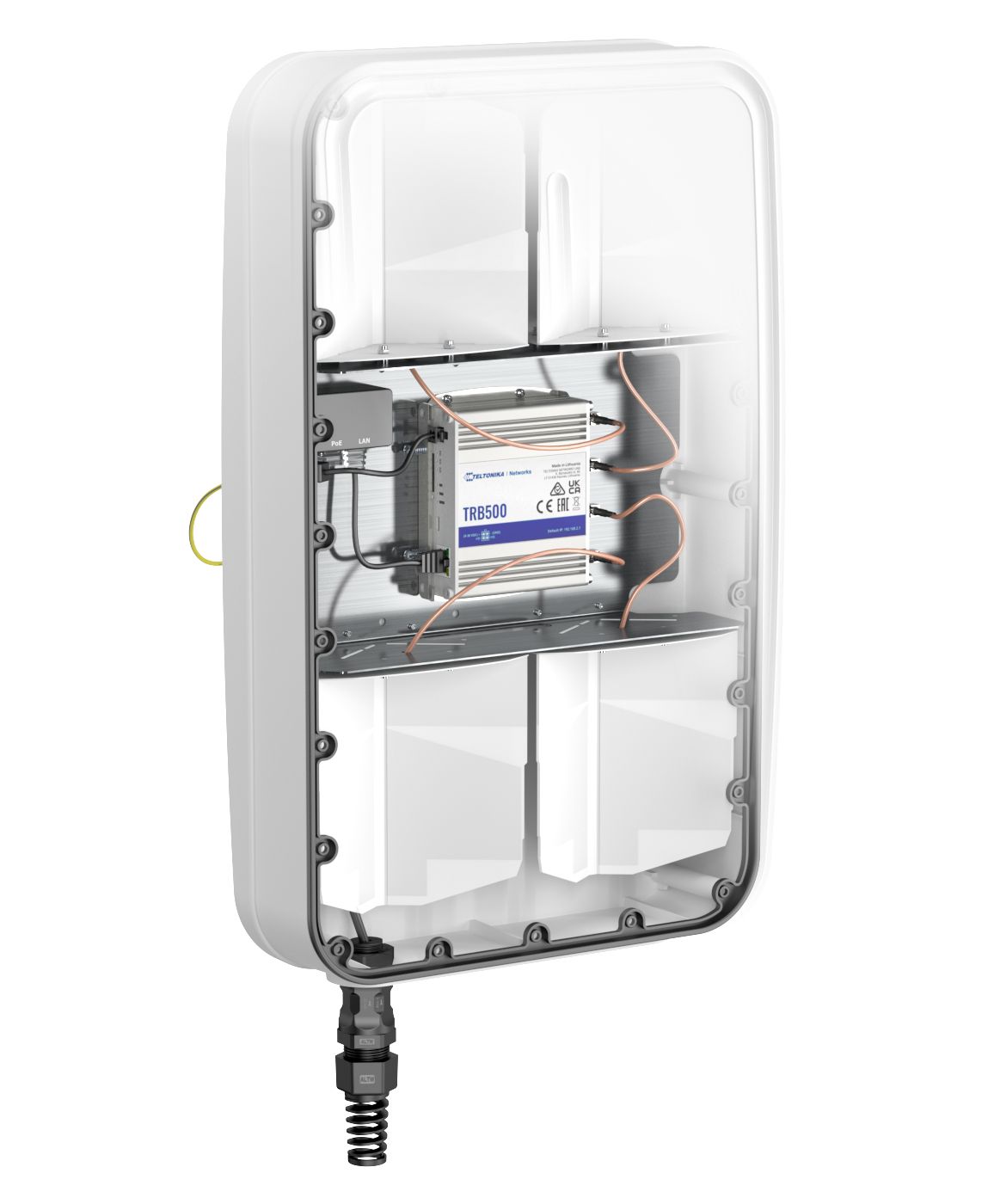

QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika TRB500 router. The antenna covers a wide frequency range from 617 MHz (Band 71) up to 3.8 GHz. Additionally, the enclosure inside the router enables many new outdoor (IP67) scenarios. It is recommended for improving signal quality in mobile applications such as trains, buses, yachts, or motorhomes, as well as in rural areas. NOTE! The antenna does not support B32 or n77 frequency bands (above 3800 MHz)!

LTE & 5G antennin speksit

FREQUENCY:
0.617 - 0.96 GHz
1.7 - 2.2 GHz
2.3 - 2.7 GHz
3.3 – 3.8 GHz

GAIN:
0.617 - 0.96 GHz: 3 dBi
1.7 - 2.2 GHz: 3.5 dBi
2.3 - 2.7 GHz: 3.5 dBi
3.3 – 3.8 GHz: 4 dBi

Supported LTE/5G bands:
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 71, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR: <1.80, max <2.00
BEAMWIDTH: 360°/35° ±5°
POLARIZATION: Vertical
IMPEDANCE: 50 Ω

Mechanical specifications

MATERIALS: ABS, aluminum, PTFE, Fiberglass
INGRESS PROTECTION: IP67
CONNECTOR TYPE: RJ45
DIMENSIONS: 486.0 x 292.2 x 105.6 mm (19.13 x 11.50 x 4.16 inch)
WEIGHT: 2.5 kg (5.51 lbs)
OPERATING TEMPERATURE: From -40°C to 70°C (From -40°F to 167°F)
