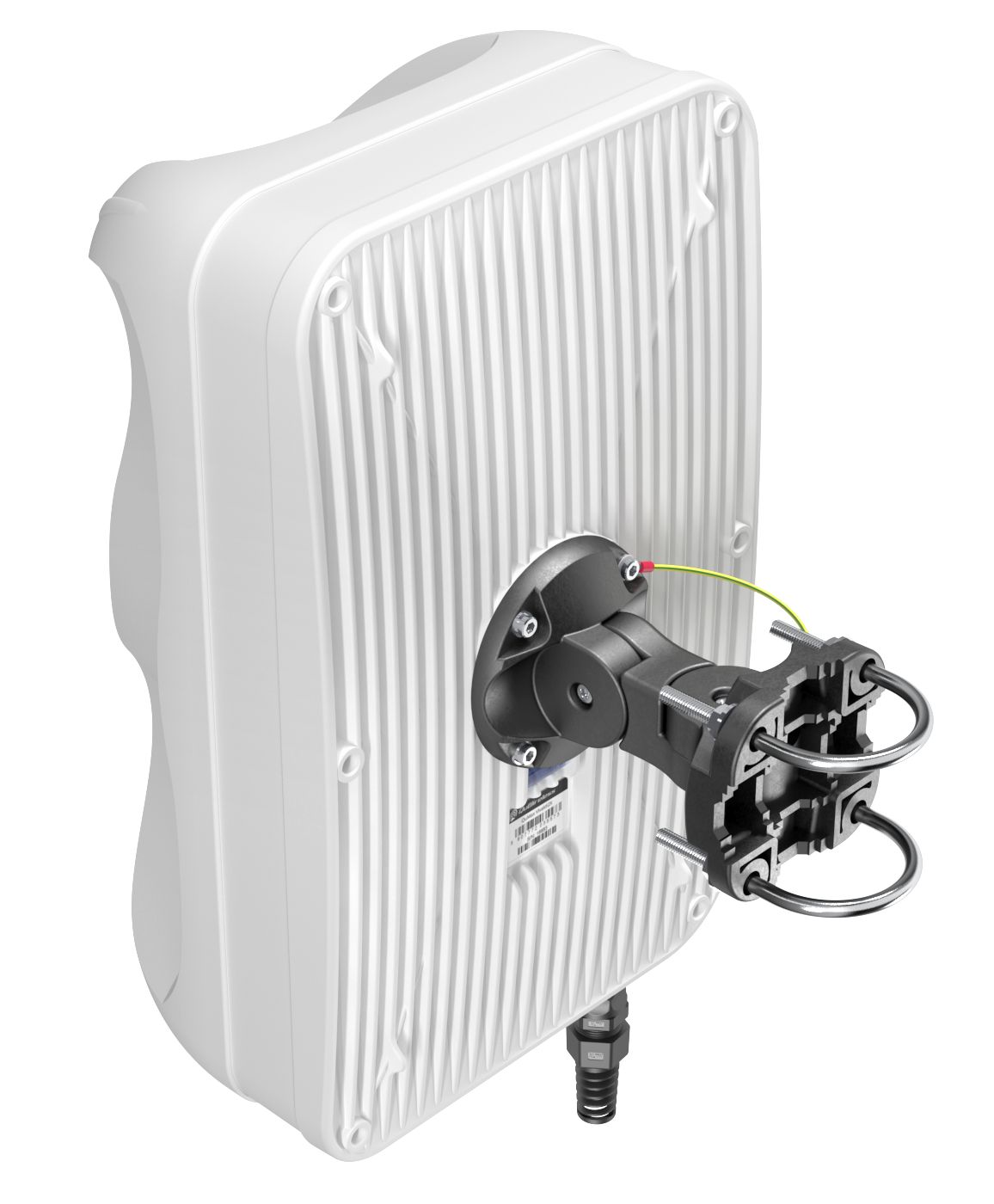

QuMax for RUTX50 is a high-performance directional antenna designed for use in various wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi, and GPS antennas integrated into an IP67 enclosure. It provides 7.5 dBi gain and a wide radiation angle, making it suitable for both urban and rural environments.

When combined with the QuMax and RUTX50, you get a complete outdoor solution for many different use cases such as transportation, public sector, energy, mining, IoT and much more.

LTE antenna specs

Frequency:
0.617 - 0.96 GHz
1.7 - 2.7 GHz
3.3 - 6.0 GHz

Supported LTE/5G bands:
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n79, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain:
0.617 - 0.96 GHz: 6 dBi
1.7 - 2.7 GHz: 7 dBi
3.3 - 4.6 GHz: 7 dBi
4.7 - 6.0 GHz: 5.5 dBi

VSWR:
<2.00, max <3.00

Beamwidth:
80°/80° ±15°

Polarization:
X (±45°)

Impedance:
50 Ω

WI-FI antenna specs

Frequency:
2.40 - 2.50 GHz
5.000 - 7.125 GHz

Gain:
2.40 - 2.50 GHz: 6 dBi
5.000 - 7.125 GHz: 7.5 dBi

VSWR:
<1.70, max <2.00

Beamwidth:
360°/25° ±5°

Polarization:
Vertical

Impedance:
50 Ω

Mechanical details

Materials:
ABS, aluminum, PTFE, Fiberglass

Connector type:
RJ45

Ingress protection:
IP67

Dimensions:
486 x 292.2 x 210 mm
19.13 x 11.50 x 8.27 inch

Weight:
2.8 kg
6.17 lbs

Operating temperature:
From -40°C to 75°C
From -40°F to 167°F
