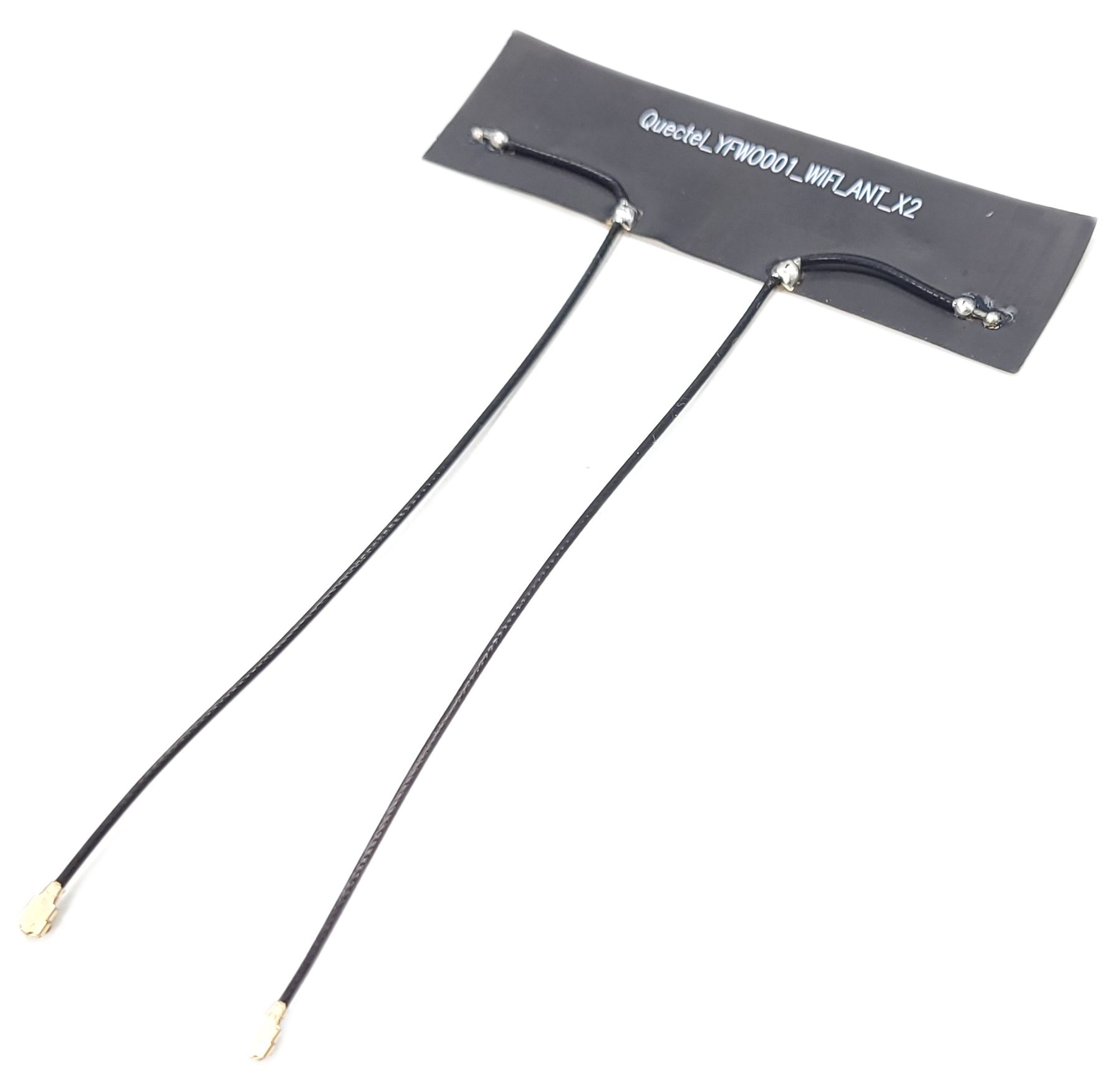

This adhesive-mounted combination antenna supports Wi‑Fi/BT connectivity. The YFWO001AA is designed to operate with various sizes of GND planes or in free space so it can be easily integrated with a connection cable terminating in an IPEX connector. The YFWO001AA includes an FPC housing, making it suitable for space-constrained applications. The YFWO001AA is compatible with Quectel's Wi‑Fi/BT modules.

Specs

• Frequency ranges – Wi‑Fi: 2400-2500 MHz; 5150-7150 MHz
• Dimensions: 78.6mm x 21.4mm
• Weight: 1.5 g
• Impedance: 50 Ω
• VSWR ≤ 2.2
• Gain ≤ 4.7 dBi
• 3M 300LSE double-sided tape
