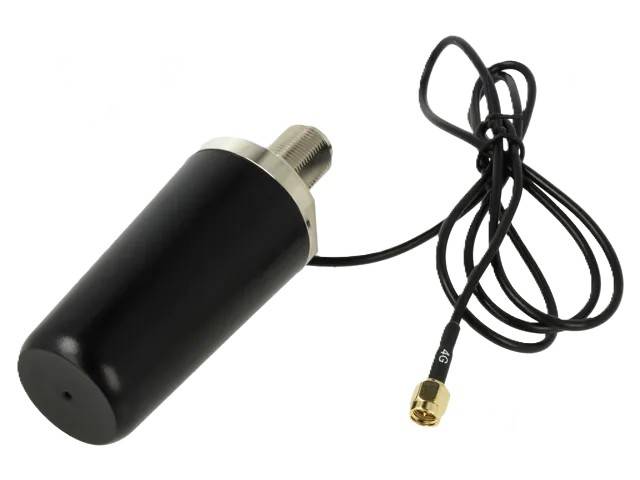

Quectel YECN001L1A 4G external antenna

The Quectel YECN001L1A is a broadband external 4G antenna that supports 2G, 3G, 4G LTE, LTE Cat-M and NB-IoT networks. The screw-mounted, omnidirectional PIFA antenna is suitable for industrial, vehicle and IoT applications that require reliable connectivity in demanding operating environments.

Features

• Broadband support for LTE, Cat-M and NB-IoT networks
• Frequency bands: 450-470 MHz, 698-960 MHz and 1710-2690 MHz
• Omnidirectional radiation pattern
• Screw-mounted installation
• SMA male connector
• 1 m RG174 cable
• PIFA design with high efficiency
• Enclosure ratings IP67 and IP69K when installed
• IK10 impact resistance
• RoHS and REACH compliant

Technical specifications

• Manufacturer: Quectel
• Model: YECN001L1A
• Antenna type: External PIFA antenna
• Impedance: 50 Ω
• Polarization: Linear
• Connector: SMA male
• Cable: RG174, 1000 mm
• Dimensions: Ø40,6 × 104 mm
• Weight: approximately 200 g
• Operating temperature: -40...+85 °C
• Storage temperature: -40...+85 °C

Applications

• IoT and M2M devices
• Industrial automation
• Remote monitoring and telemetry systems
• Vehicle and fleet tracking
• Smart city and infrastructure applications
• Security and surveillance systems
