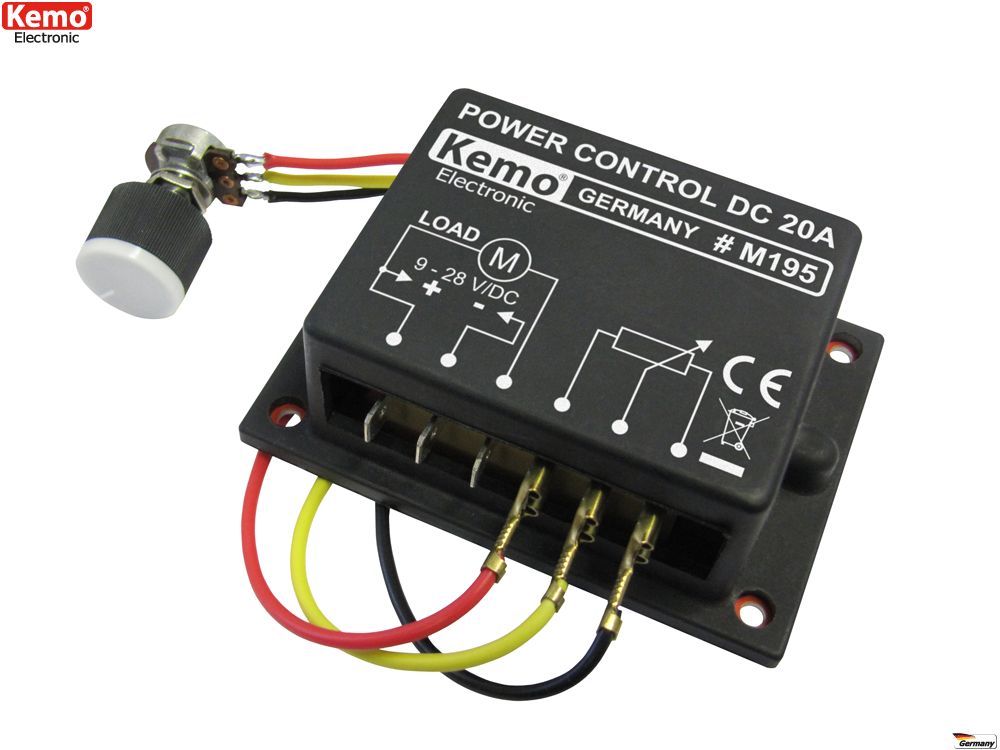

PWM POWER CONTROLLER 9-28VDC 20A
PWM POWER CONTROLLER 9-28VDC 20A
Product Description
Features
- PWM power control is done with a potentiometer or 0-5V control voltage
- Easy speed control for battery-powered motors or dimming for 12V LED strips
- Connections with 6.3mm spade terminals
Read the installation instructions carefully. Ensure adequate cooling.
Animation
Technical data
|
Operating voltage |
9 - 28 V/DC |
|
Max. current delivery capability |
20 A (if the module is connected to a heatsink) |
|
PWM Duty Cycle range |
0 - 100% |
|
Control method |
PWM pulse-width modulation in the frequency range 300 - 600 Hz |
|
Potentiometer |
4.7 kOhm linear (included) |
|
Suitable loads |
DC motors, incandescent lamps, halogen lamps, heating resistors, LEDs with series resistors. |
|
Dimensions |
approx. 87 x 60 x 33 mm (base plate dimensions included) |
Installation instructions
Always use a fuse between the Kemo M195 and the battery; do not connect directly to the battery terminals. Recommended fuse 20A.
If the product becomes hot during use, provide adequate cooling. Heat is conducted away through the aluminum surface on the back of the device. Mount it against a heatsink or other metal surface. Use thermal paste to maximise heat transfer. Be careful when fastening so the device is not twisted in any way. Use four M3 metal screws. Do not drill larger mounting holes or make other modifications. Ensure that cooling is sufficient.
Video
Product Information
- Availability In stock
- Manufacturer Kemo Electronic
- EAN 4024028031958
- Product path Home Do It YourselfBuilding KitsKemo ready-made modules PWM POWER CONTROLLER 9-28VDC 20A
- SKU KEMO-M195
- Attributes
- Manufacturer's model M195
- Click for more details https://www.kemo-electronic.de/en/Transformer-Dimmer/Controller/Modules/M195-PWM-Power-control-9-28-V-DC-max-20-A.php
- Dimensions 87 x 60 x 33 mm
