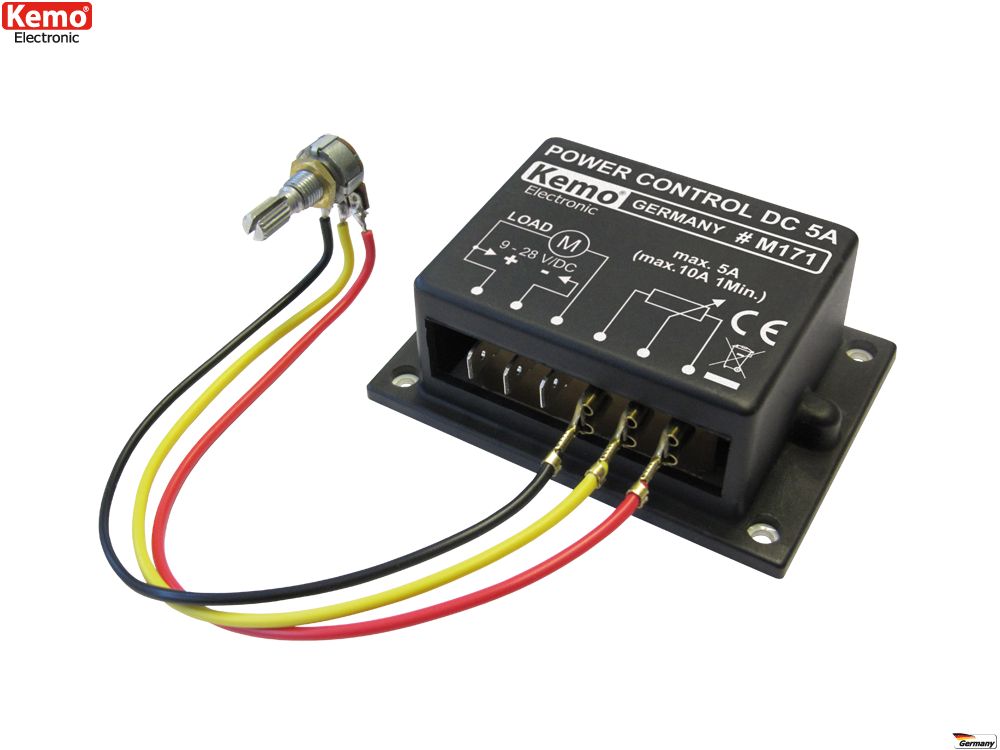

PWM POWER CONTROLLER 9-28VDC 10A
PWM POWER CONTROLLER 9-28VDC 10A
Product Description
Features
- PWM power control is done with a potentiometer or 0-5V control voltage
- Easy speed control for battery-powered motors or dimming for 12V LED strips
- For loads under 5A without additional cooling
- Connections with 6.3mm blade terminals
Read the installation instructions carefully. Ensure sufficient cooling.
Animation
Technical specifications
|
Operating voltage |
9 - 28 V/DC |
|
Max. current delivery capability |
5 A or 10 A (if the module is connected to a heatsink) |
|
PWM Duty Cycle range |
approx. < 5% to > 95% |
|
Control method |
PWM pulse-width modulation in the frequency range 10 kHz - 20 kHz |
|
Potentiometer |
4.7 kOhm linear (included) |
|
Suitable loads |
DC motors, incandescent lamps, halogen lamps, heating resistors, LEDs with series resistors. |
|

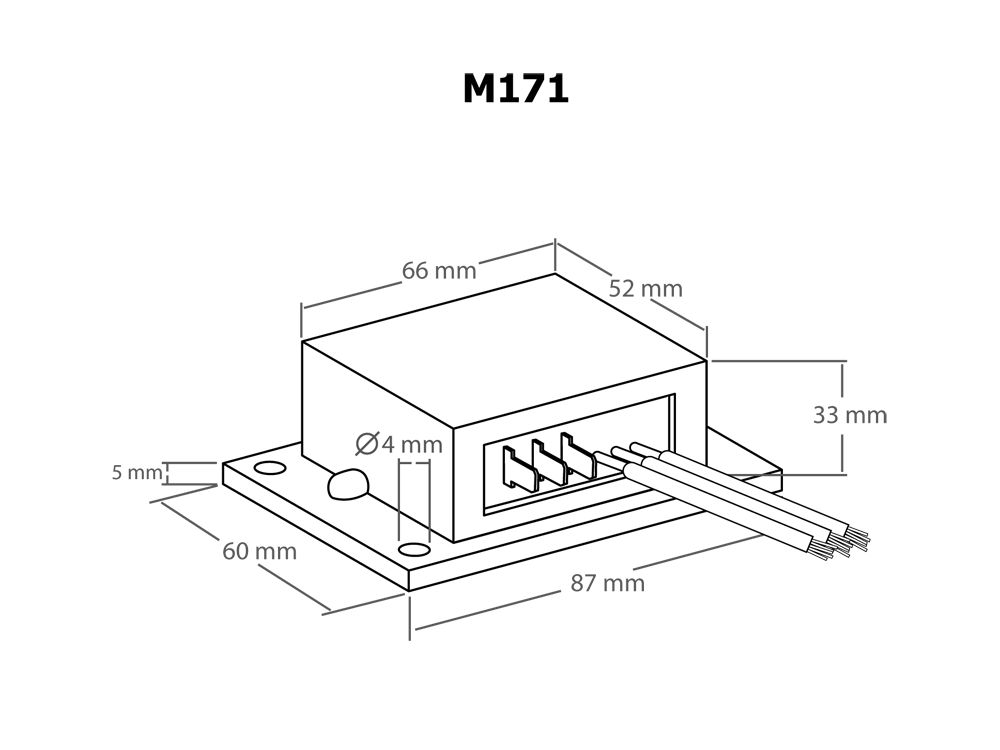

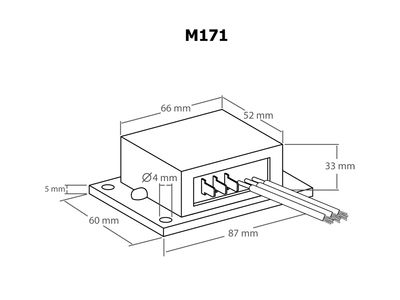

Dimensions |
approx. 87 x 60 x 33 mm (including base) |

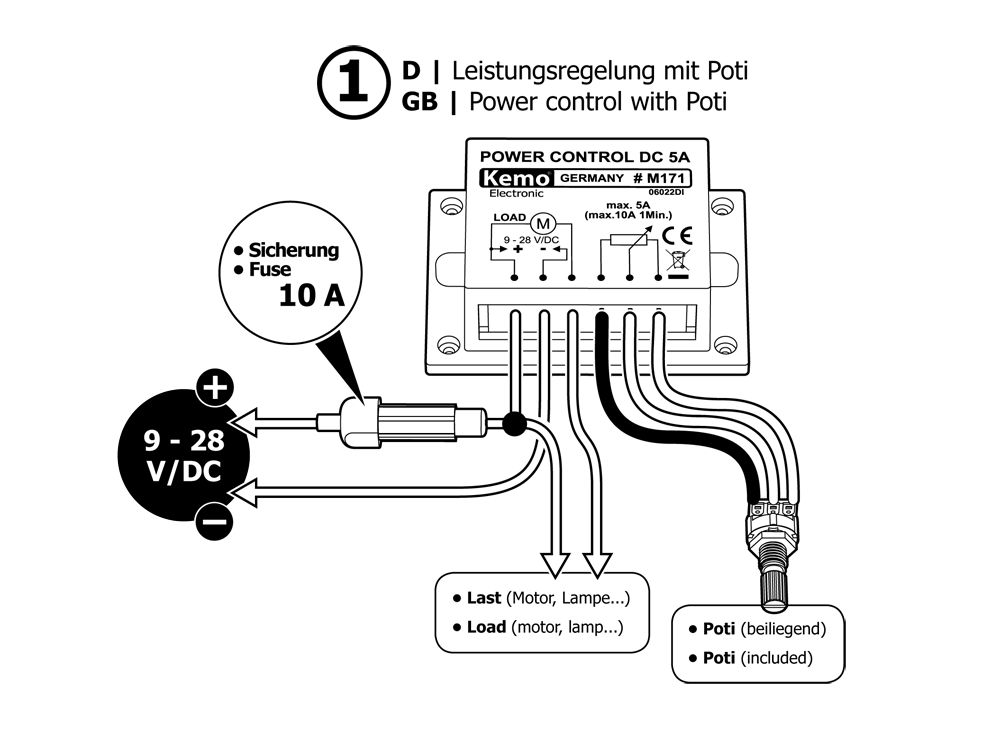

Installation instructions
Always use a fuse between the Kemo M171 and the battery; do not connect directly to the battery terminals. Recommended fuse 10A.
If the product heats up during use, provide adequate cooling. Heat is conducted away through the aluminum surface on the rear of the device. Mount it against a heatsink or other metal surface. Use thermal paste to maximize heat transfer. Be careful when fastening so the device does not become warped in any way. Use four M3 metal screws. Do not drill larger mounting holes or make other modifications. Ensure that cooling is sufficient.
Video
Product Information
- Availability In stock
- Manufacturer Kemo Electronic
- EAN 4024028031712
- Product path Home Do It YourselfBuilding KitsKemo ready-made modules PWM POWER CONTROLLER 9-28VDC 10A
- SKU KEMO-M171
- Attributes
- Manufacturer's model M171
- Click for more details https://www.kemo-electronic.de/en/Transformer-Dimmer/Controller/Modules/M171-PWM-Power-control-9-28-V-DC-max-10-A.php
- Dimensions 87 x 60 x 33 mm
