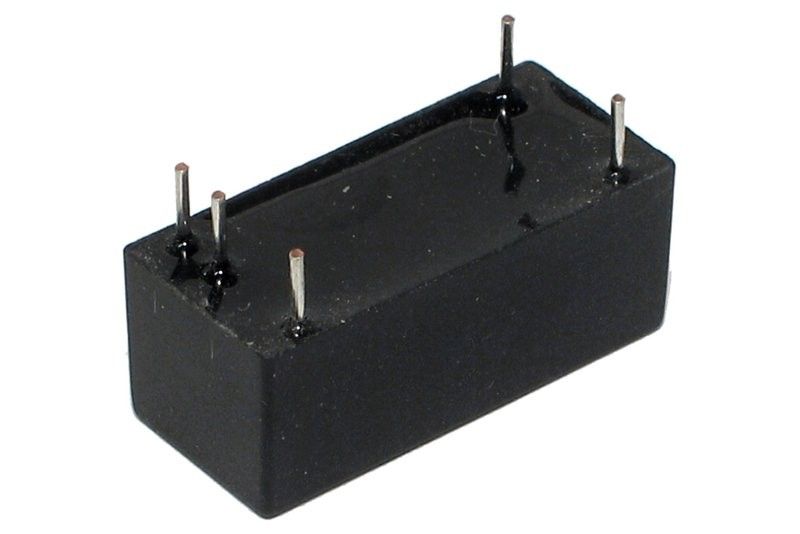

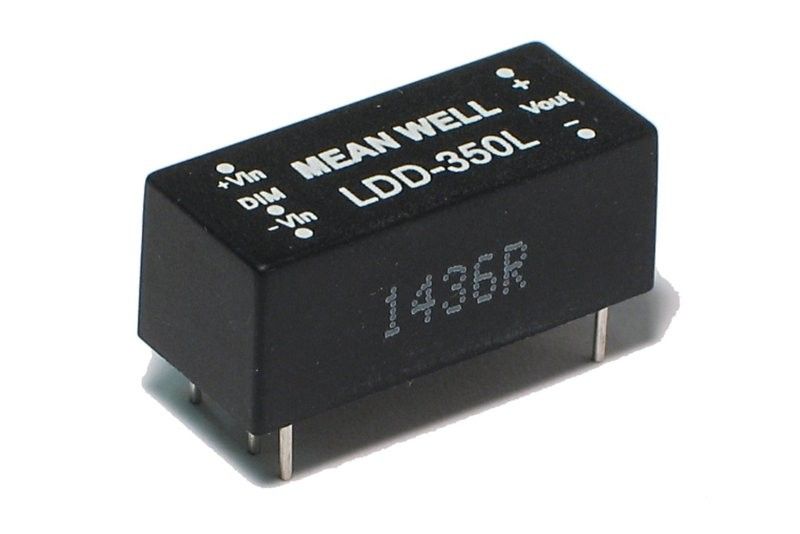

PWM DIMMABLE POWER LED CC-SOURCE 350mA 9-36V

Name: PWM DIMMABLE POWER LED CC-SOURCE 350mA 9-36V
Brand: MeanWell
SKU: MW-LDD-350L
Price: 6.48 EUR
Availability: InStock

In stock 6 pcs

SKU#: MW-LDD-350L

In stock 6 pcs

SKU#: MW-LDD-350L

Quantity discount

Quantity (kpl)		Price
10+	undefined%	5,89 € / pcs

6,48 €

In stock

Add a comment about the product to my order

Product Description

technology: DC/DC step-down
input voltage range: 9...36VDC
output voltage range: 2...32VDC
PWM dimming = in practice 100-1000Hz full-power on/off switching
- PWM control voltage 3,5..8VDC
- by connecting the control pin to ground you can turn the output off (OFF switch)
output protected against short circuit and overload
operating temperature range: -40...+70°C

Note! You always need a higher supply voltage than the load LEDs.

Availability In stock
Manufacturer MeanWell
Product path Home Components Optical Components LEDs LED Controllers PWM DIMMABLE POWER LED CC-SOURCE 350mA 9-36V
SKU MW-LDD-350L
Attributes
- Dimensions 32 x 20.5 x 12 mm
