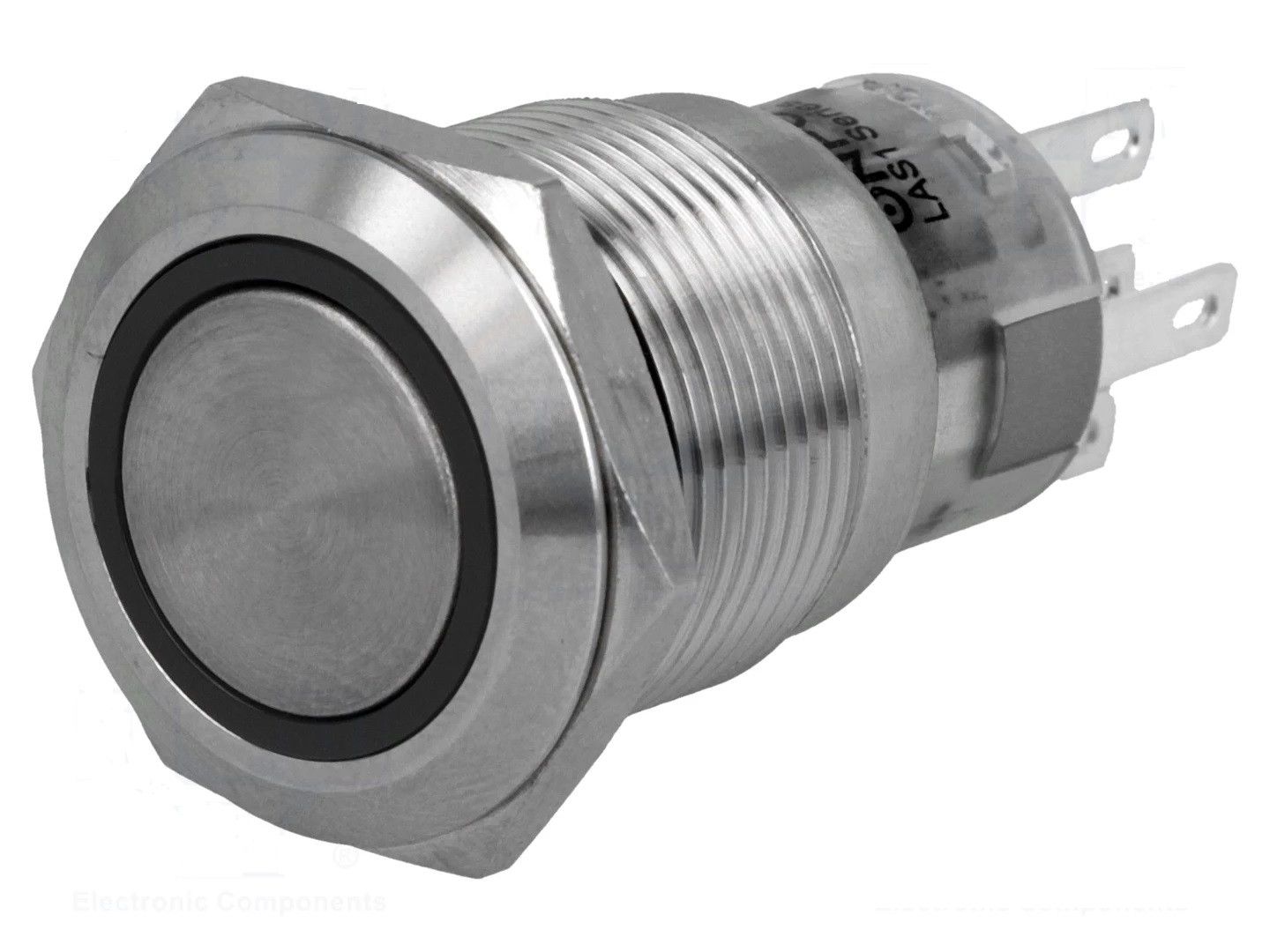

PUSH-BUTTON SWITCH WITH RED LED
In stock under 5 pcs
SKU#: KYT-V1911R24-PUN
PUSH-BUTTON SWITCH WITH RED LED
In stock under 5 pcs
SKU#: KYT-V1911R24-PUN
- Breaking capacity: 0,5A 250VAC / 1A 24VDC
- Body material: stainless steel
- Protection class: IP67 (front)
- Indicator light: red LED ring
- Indicator light voltage: 24V
- Operating temperature: -20...+70°C
- Switch function: ON - (ON)

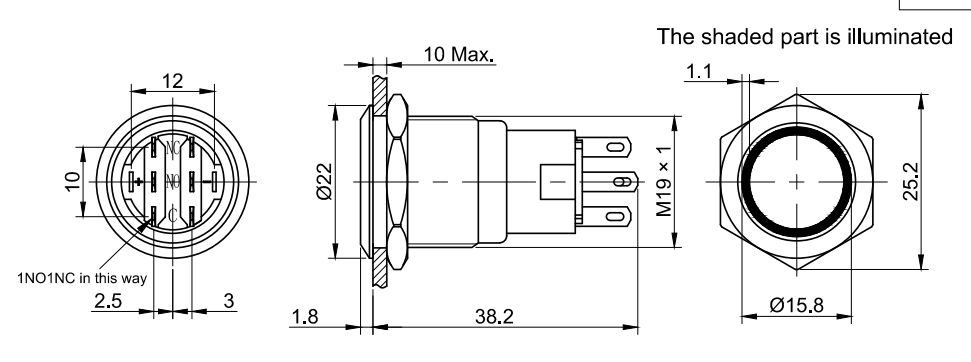

- Mounting hole: 19mm
- Diameter: 22mm
Quantity discount
| Quantity (kpl) | Price | |
|---|---|---|
| 10+ | undefined% | 16,13 € |
| 250+ | undefined% | 10,22 € |
17,92 €
In stock
Product Description
Product Information
- Availability In stock
- Product path Home ComponentsElectromechanical ComponentsSwitchesVandal-proof push buttons PUSH-BUTTON SWITCH WITH RED LED
- SKU KYT-V1911R24-PUN
- Attributes
- Power Class 2A
- Control voltage 24V
- IP protection class IP67
- Installation hole size Ø19mm
- Number of contacts 1 vaihtokosketin
- Contact surface material AgNi
- Material ruostumaton teräs
- Pins 5
- Manufacturer's model Onpow LAS1-AGQ-11E/R/24V
