• produces a measurement signal compliant with DIN EN 60751
• measurement range: -50°C ... +300°C Class A F 0.15
• nominal resistance at 0°C: 1000ohm@0°C
• temperature coefficient: 3850ppm/K
• dimensions: 2,3 x 2,1 mm
• 10mm leads
• sensor element without enclosure

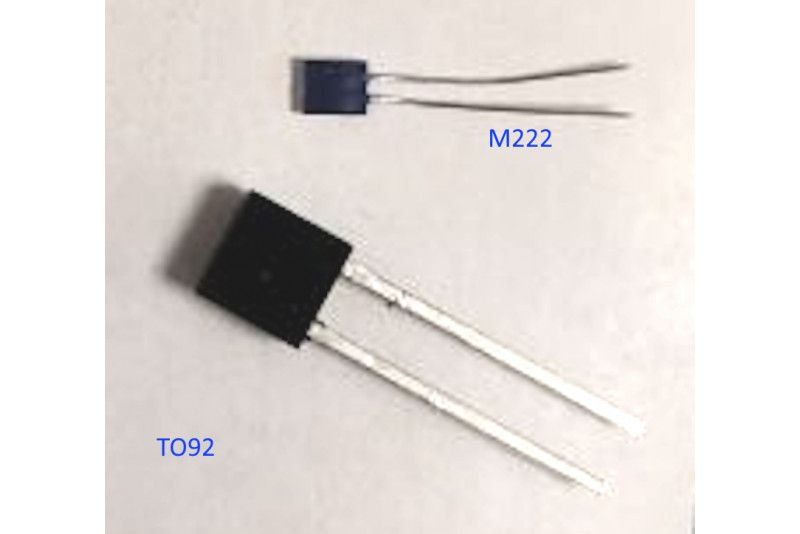

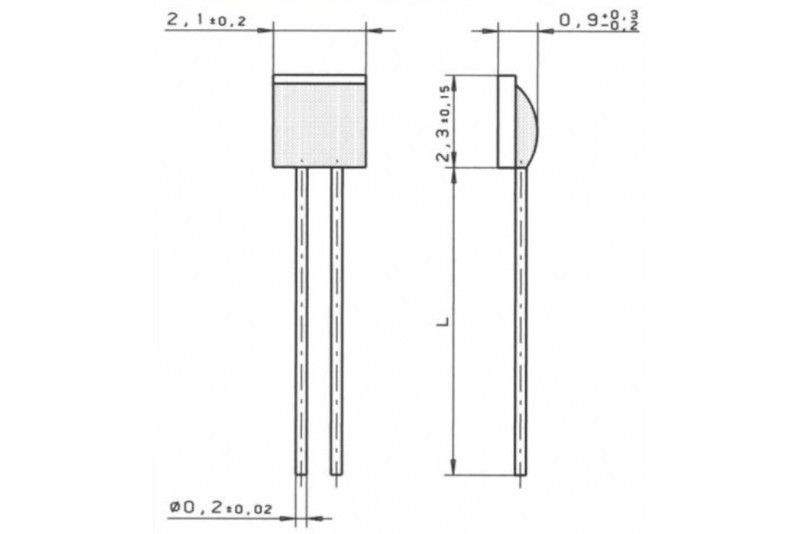

Note! The M222 sensor is significantly smaller than the traditional TO92 package size; see the additional image for dimensions.
