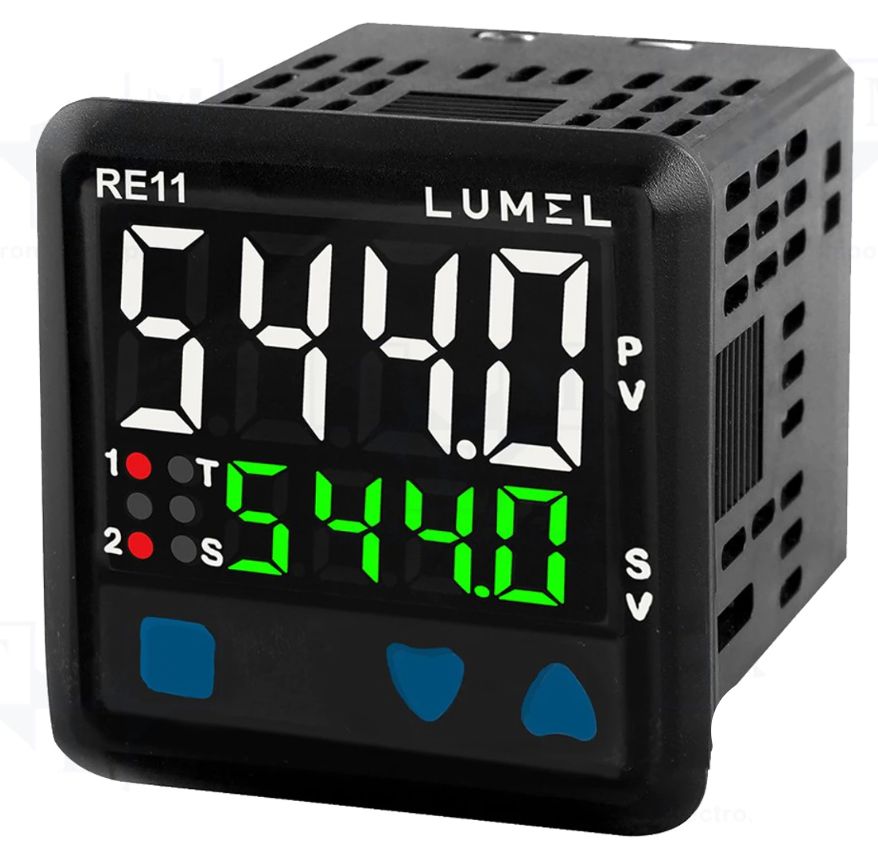

LUMEL RE11 is a general-purpose and versatile temperature controller with 2 relay outputs, a bright LED dual display and user-friendly configuration.

96,43 €

Temporarily out of stock

Add a comment about the product to my order

Product Description

4 + 4 digit display
accuracy:
- thermocouple (J, K, T) input: 0.25% of F.S. ± 1°
- thermocouple (R, S) input: 0.5% of F.S. ±2° (20 min warm-up time)
- PT100 input: 0.1% of F.S ±1°
input measurement range -199 to 1350°C (K-type thermocouple)
Resolution: 0.1/1° for TC/RTD (fixed 1° for R and S TC)
Output: relay or solid-state relay
Output 2: relay
Control modes:
- Auto-tune
- Self-tune
- PID / ON-OFF
features:
- heat-cool PID,
- dwell timer,
- selectable 2nd set point
Supply voltage: 90 - 270V AC/DC (max 6 VA @ 230V AC)
Size: 52 x 52 x 76 mm
Panel mountable (cutout size 46 x 46 mm)

The product also requires a temperature sensor (K-type thermocouple is recommended)

Availability Temporarily out of stock
Product path Home components electromechanical-components Thermostats PROGRAMMABLE TEMPERATURE CONTROLLER WITH 2 OUTPUT
SKU RE11
Attributes
- Connector type Ruuviliitos
- Manufacturer's model RE11
- Click for more details https://www.lumel.com.pl/en/catalogue/product/controller-2-outputs
- Instructions for use only in English
