Belden 70007NH PROFINET cable Cat5e – Type B, LSZH

Belden 70007NH is an industrial PROFINET Type B class Cat5e Ethernet cable, which is particularly suitable for factory automation, process industry and IIoT solutions. The cable is designed to withstand harsh conditions and provide reliable data transmission.

Key features

• PROFINET Type B – suitable for moderate bending
• Cat5e – 100 Mbit/s data transmission
• 1 quad (4 conductors), AWG22 tinned copper
• Shielded construction: foil + braid (SF/UTP)
• LSZH / FRNC jacket (halogen-free, low smoke)
• Diameter approximately 6.5 mm
• Impedance 100 Ω

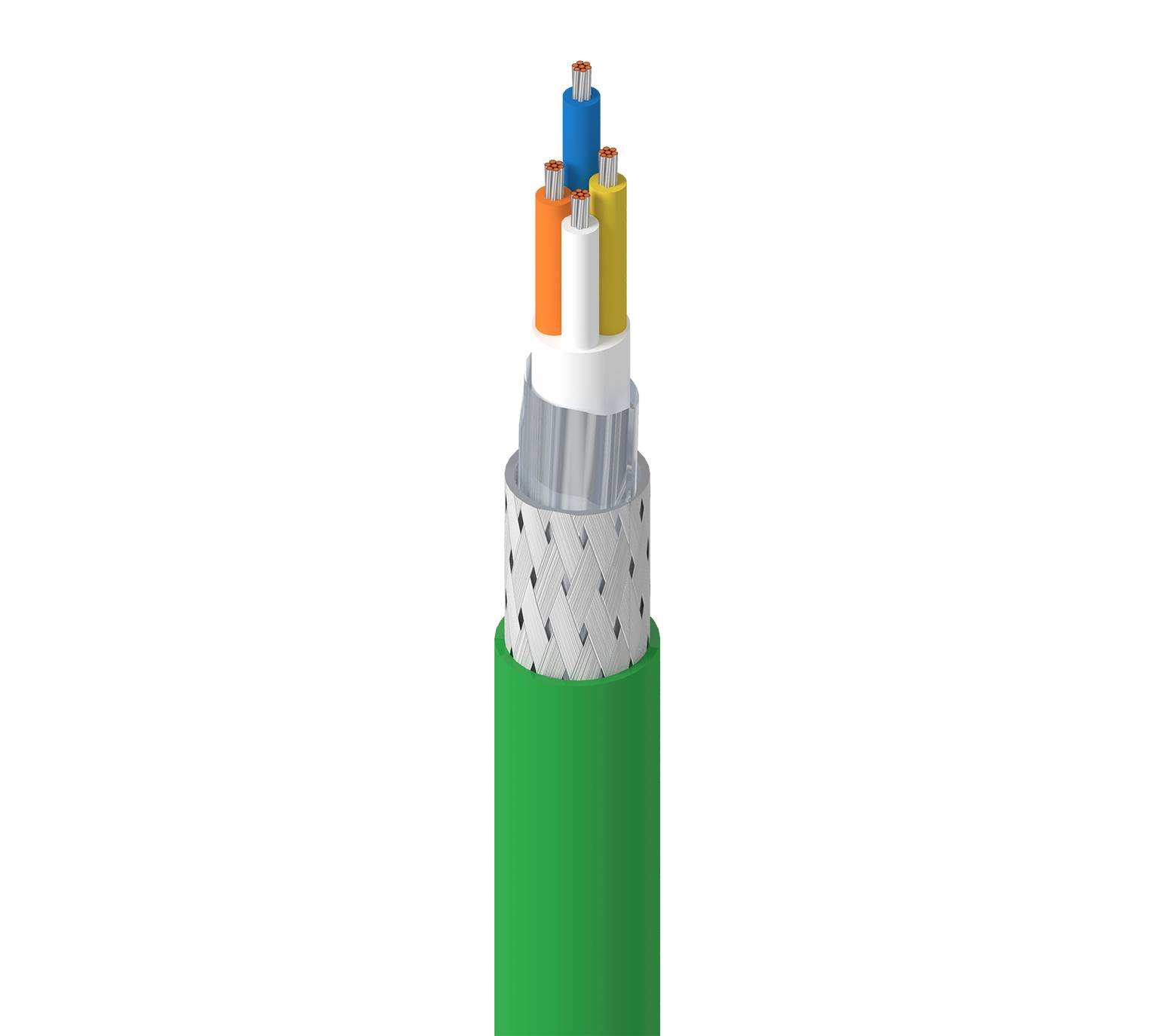

Construction

• Conductor: tinned copper, stranded
• Insulation: polyethylene (PE)
• Shielding: aluminum foil + tinned copper braid
• Outer jacket: green LSZH (halogen-free)

Applications

• PROFINET industrial networks
• Automation systems
• Factory and process equipment
• IP cameras and industrial data transmission

Standards and compliance

• ISO/IEC 11801 Cat5e
• EN 50173-1
• Halogen Free (IEC 60754)
• CPR Euroclass: Eca

Additional information

Belden 70007NH is part of the DataTuff® series and is optimized for use in demanding environments where mechanical durability, interference protection and a reliable PROFINET connection are required.
