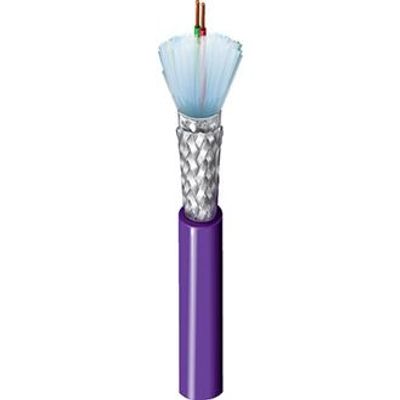

profibus dp Cable 1x2xAWG22 150 Ohm
In stock over 100 pcs
SKU#: 40110149
profibus dp Cable 1x2xAWG22 150 Ohm
In stock over 100 pcs
SKU#: 40110149
- Capacitance 29 pF/m
- Sheath diameter 8 mm
- Interference protection SF/TP
- Conductor colours Green-red
- Operating temperature, max. 75 °C
- Operating temperature, min. -30 °C
- Conductor resistance 52,5 Ohm/km
- Tensile strength 222,4 N
- Class Profibus
- Insulation material FPE
- Sheath material PVC
- Operating voltage, max. 300 V
- Cross-section 0,32 mm² (AWG) 22 AWG
Quantity discount
| Quantity (kpl) | Price | |
|---|---|---|
| 20+ | undefined% | 4,49 € |
| 100+ | undefined% | 3,76 € |
5,32 €
In stock
Product Description
Product Information
- Availability In stock
- Manufacturer Belden
- Product path Home CablesRaw CablesData Transfer Raw CablesGeneral Data Cables profibus dp Cable 1x2xAWG22 150 Ohm
- SKU 40110149
- Attributes
- Operating temperature -30...+75°C
- Color violetti
- Nap lock 2
- Diameter 8mm
- Manufacturer's model 3079A
- Click for more details https://www.belden.com/products/cable/electronic-wire-cable/multi-pair-cable/3079a
- Impedance 150 Ohm
- Approvals EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- Approvals EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
