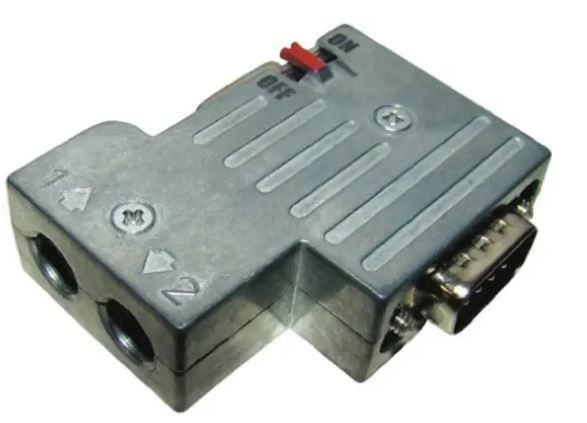

Profibus connector D9 male 90deg

Name: Profibus connector D9 male 90deg
Brand: PROVERTHA
SKU: 40420532
Price: 26.30 EUR
Availability: InStock

In stock 86 pcs

SKU#: 40420532

In stock 86 pcs

SKU#: 40420532

Quantity discount

Quantity (kpl)		Price
5+	undefined%	24,50 €

26,30 €

In stock

Add a comment about the product

Product Description

360° EMI/RFI protection
Fault-tolerant PROFIBUS interface with colored quick connectors
Vibration-resistant and fast connection
Easy installation without special expertise
Cable connection: relative to a 90° D-Sub connector.
Fully shielded die-cast zinc housing for EMC/RFI protection; special shielding geometry of the housing.
The switch can be used externally to activate the bus terminator (the switch can be used internally for an EMC/RFI-shielded solution).
Switch ON/OFF position is visible from the front
Programming/diagnosis option via the 2nd D-Sub.
Locking: Ring screw UNC 4-40
100-percent tested bus connectors ensure high operational reliability

Availability In stock
Manufacturer PROVERTHA
Product path Home Connectors Data Connectors Channel Connectors Profibus connector D9 male 90deg
SKU 40420532
Attributes
- Connector-A DE-9
- Manufacturer's model 40-1391132
