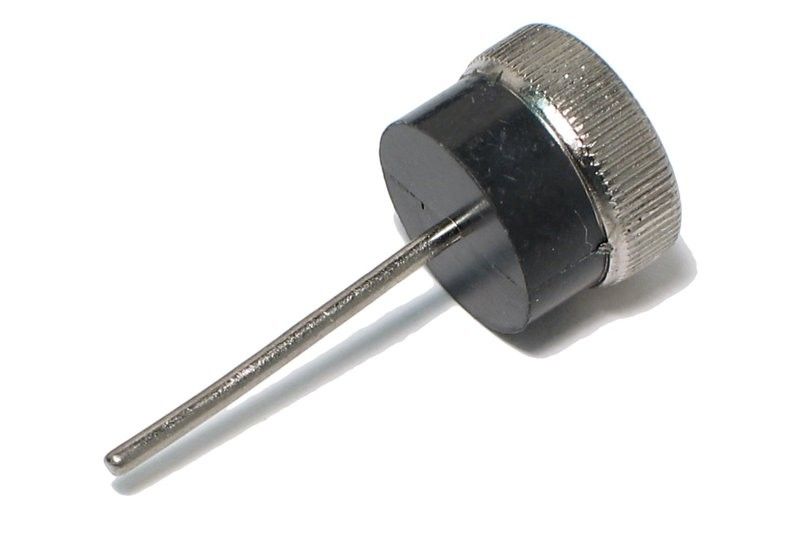

BYP60A6 – Press-Fit rectifier diode 60A 600V

BYP60A6 is a silicon rectifier diode intended for high-current rectification applications in a metal Press-Fit package.

• Type: Rectifier diode (Standard Recovery)
• Average rectified current: 60 A
• Repetitive peak reverse voltage (VRRM): 600 V
• Forward voltage (VF): max. 1.1 V @ 60 A
• Reverse recovery time (trr): 1.5 µs
• Package: Press-Fit, DO-208 / DO-208AA
• Terminals: 1
• Semiconductor material: silicon (Si)

Suitable for, among others: power rectifiers, power supplies, chargers and other high-current rectification applications.
