KAmod BMP390 – precise pressure and temperature sensor module

KAmod BMP390 is a precise air pressure and temperature sensor module based on Bosch Sensortec's BMP390 sensor. The module is suitable for weather stations, IoT devices, environmental measurements, altitude measurements, and navigation and automation applications. Data transfer is possible via both I²C and SPI buses. The module has built-in voltage level translators, so it can be used in 2–5 V systems.

Features

• Bosch Sensortec BMP390 pressure and temperature sensor
• Pressure measurement range: 300 ... 1100 hPa
• Temperature measurement range: -40 ... +85 °C
• I²C and SPI interfaces
• Operating voltage: 2 ... 5 V
• Integrated voltage level translation for logic signals
• All signals brought out to a 2.54 mm header
• Compact size: 15 × 24 mm

Technical specifications

• Sensor: Bosch BMP390
• Measured quantities: air pressure, temperature
• Interfaces: I²C, SPI
• Operating voltage: 2–5 V DC
• Pressure range: 300–1100 hPa
• Temperature range: -40...+85 °C
• PCB size: 15 × 24 mm

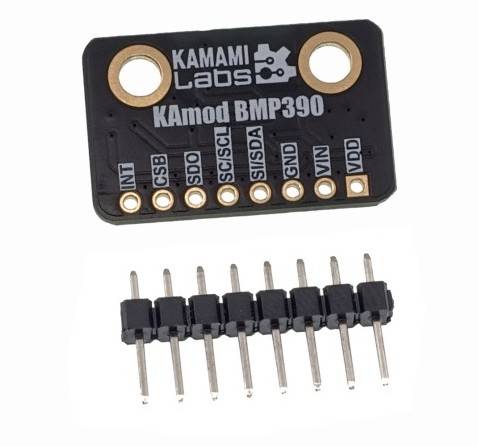

• Connector: 8-pin 2.54 mm pin header

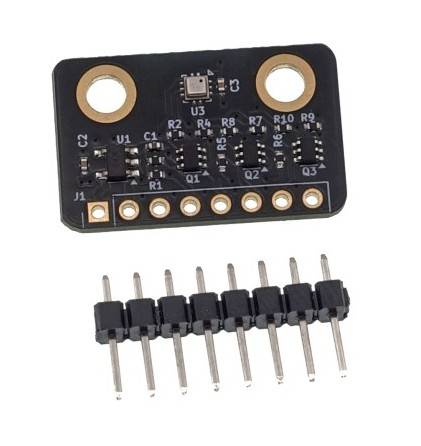

Package contents

• KAmod BMP390 module
• 8-pin 2.54 mm pin header

The module is suitable for use, for example, with Arduino, ESP32, STM32 and Raspberry Pi systems for measuring pressure, altitude and temperature.
