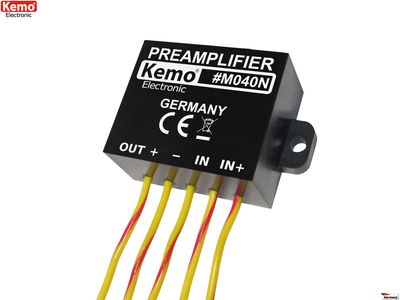

Kemo M040N - general-purpose mono preamplifier.

16,60 €

In stock

Add a comment about the product

Product Description

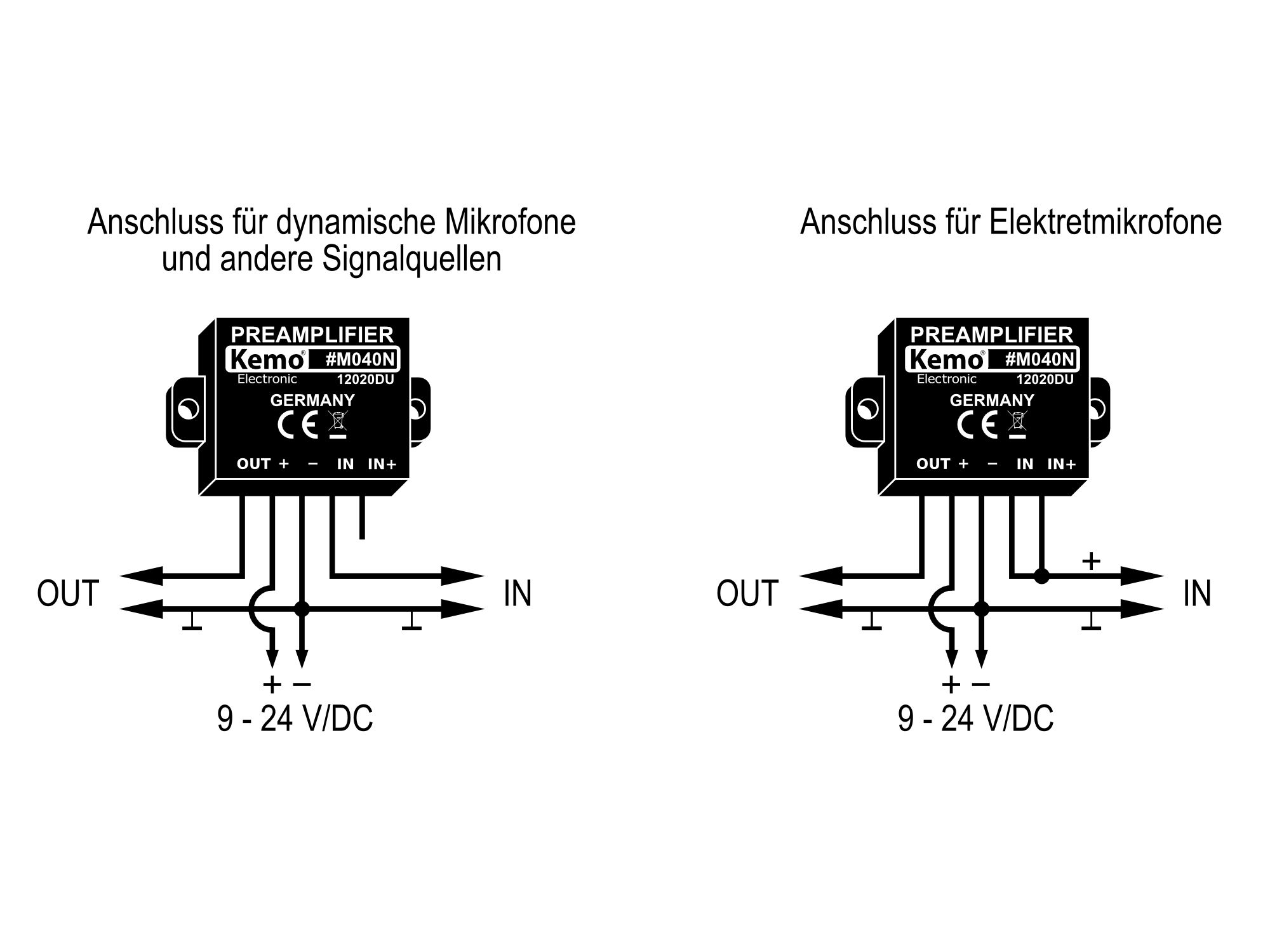

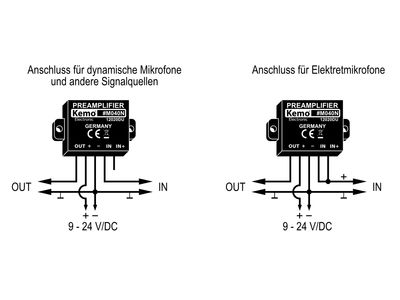

This module is suitable for amplifying a weak microphone signal for a power amplifier.

Operating voltage	approx. 9 - 24 V/DC
Frequency range	approx. 20 - 20.000 Hz ±3 dB
Input voltage	approx. 2 - 50 mV
Output voltage	approx. 0,2 - 5 V
Input impedance	approx. 50 kΩ
Output impedance	approx. <1 kΩ
Gain	approx. 40 dB (100 x) ±10%
Distortion	<0,02%
Current consumption	<5 mA

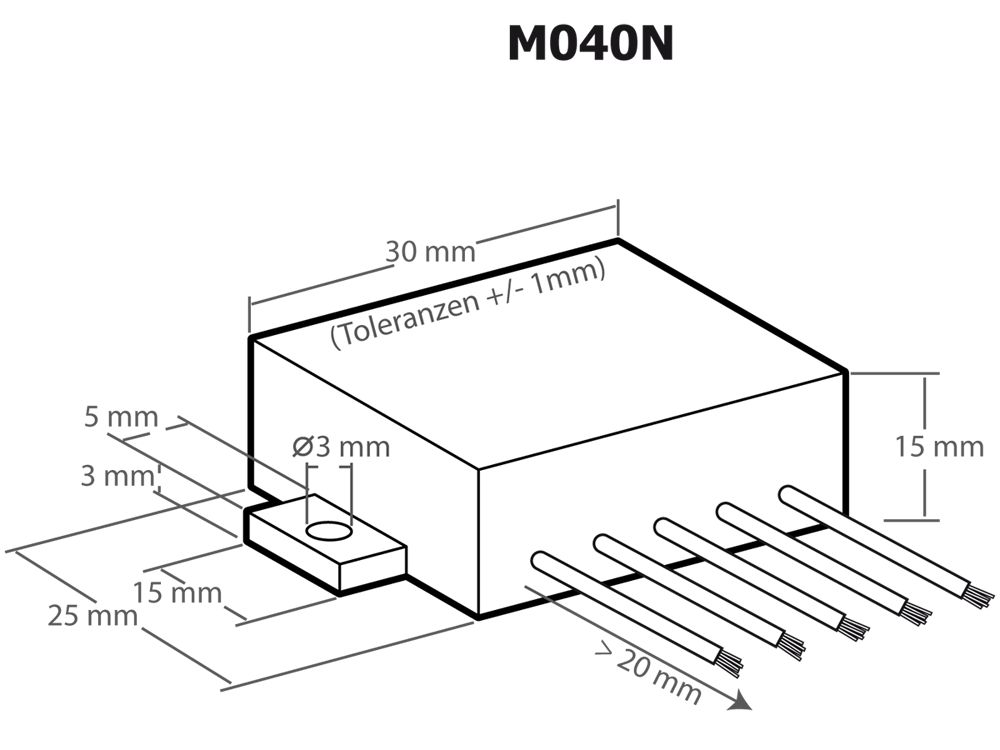

Dimensions	approx. 30 x 25 x 15 mm (without mounting ears)

Availability In stock
Manufacturer Kemo Electronic
EAN 4024028030401
Product path Home Do It Yourself Building Kits Kemo ready-made modules UNIVERSAL AMPLIFIER
SKU KEMO-M040N
Attributes
- Manufacturer's model M040N
- Click for more details https://www.kemo-electronic.de/en/Light-Sound/Amplifier-Splitter/Modules/M040N-Universal-preamplifier.php
