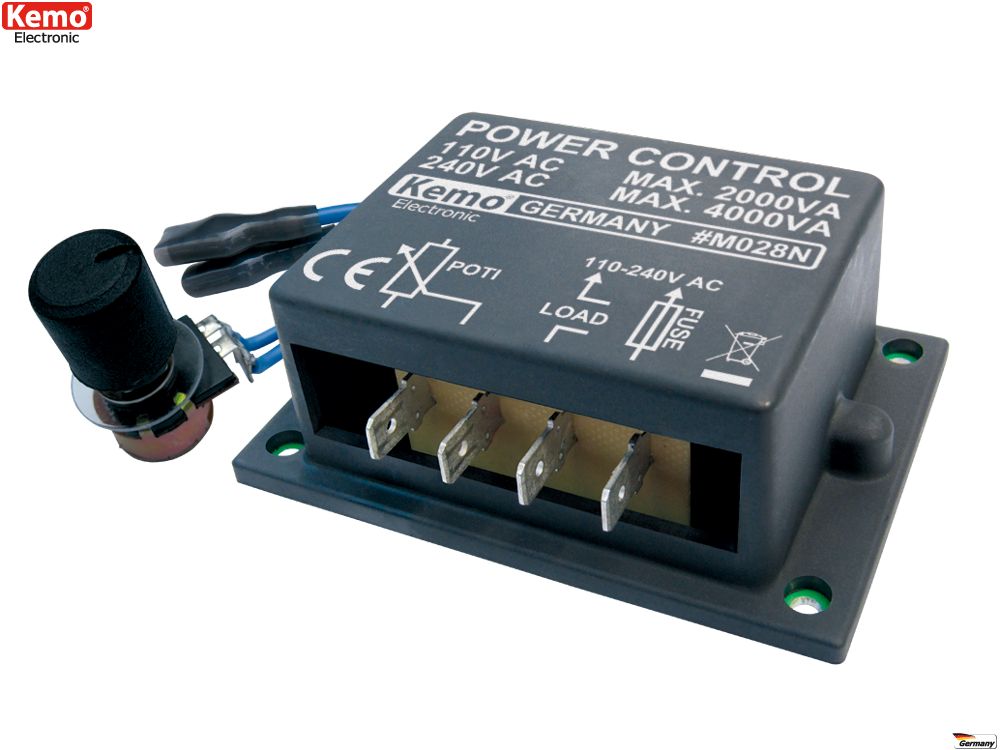

POWER CONTROL MODULE 240VAC/4000VA
POWER CONTROL MODULE 240VAC/4000VA
Product Description
Features
For controlling resistive and inductive loads, such as motors or heating elements, provided they are phase-controllable.

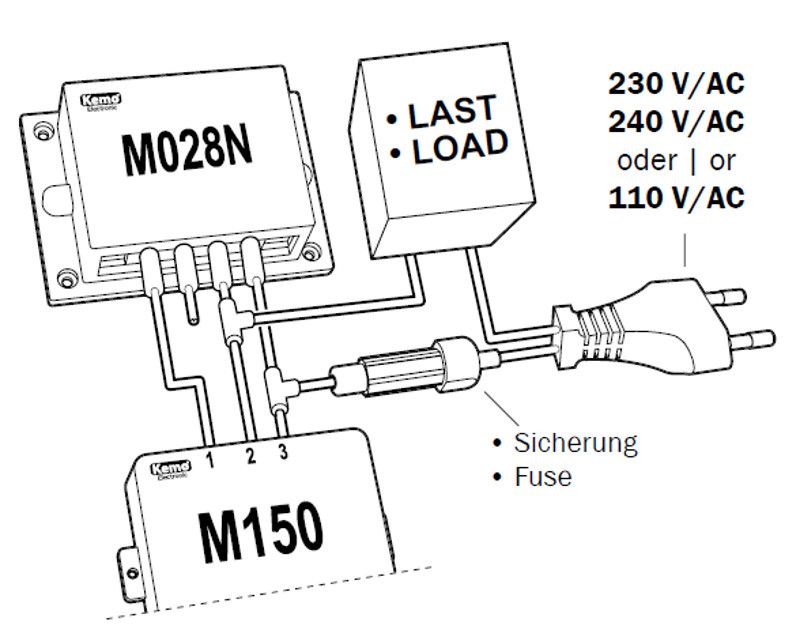

Auxiliary module: KEMO M150 - DC + pulse converter
The auxiliary module allows control using voltages 1-5VDC or 3-12VDC or 6-24VDC or TTL pulses.
Technical specifications
| Supply voltage | 110 - 240 V/AC |
| Load | max. 4000 VA @ 230 V/AC |
| Maximum load | 18 A when the module is mounted to a sufficient heatsink |
| Max. load without cooling | max. 6 A (peak 25 A / 10 sec.) |
| Control method | phase control |
| Connectable loads | resistive + inductive (see manual) |

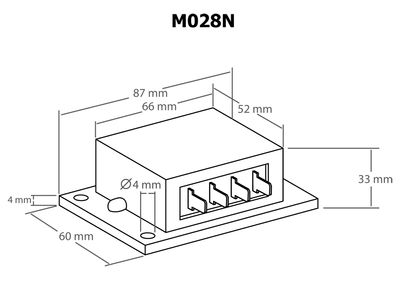

| Dimensions | 87 x 60 x 33 mm (without base) |
Animation
Note! Always remember to use the fuse required by the connection. Leave installation work to professionals.
Installation instructions

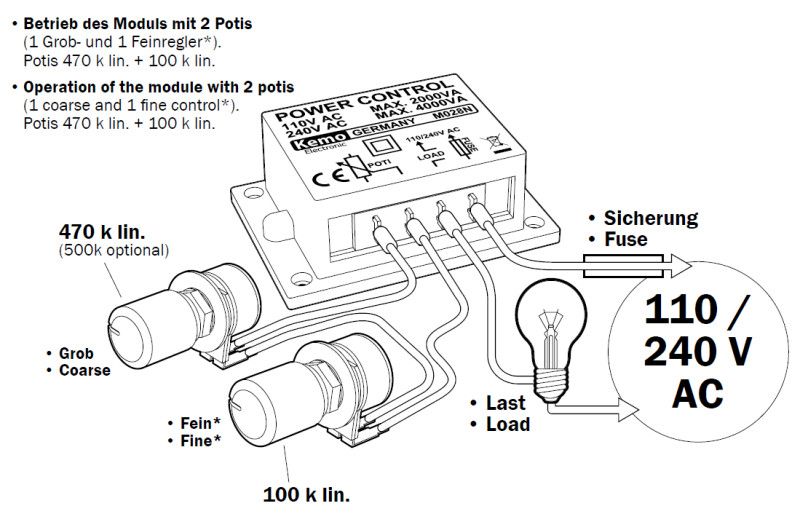

Always use a fuse between the Kemo M028N and the mains supply. The recommended size is 10A.
If the product heats up during use, provide adequate cooling. Heat is dissipated via the aluminum surface on the back of the unit. Mount it against a heatsink or another metal surface. Use thermal paste to maximize heat transfer. Be careful when fastening so the device is not distorted in any way. Use four M3 metal screws. Do not drill larger mounting holes or make other modifications. Ensure that cooling is sufficient.
Product Information
- Availability In stock
- Manufacturer Kemo Electronic
- EAN 4024028032924
- Product path Home Do It YourselfBuilding KitsKemo ready-made modules POWER CONTROL MODULE 240VAC/4000VA
- SKU KEMO-M028N
- Attributes
- Manufacturer's model M028N
- Click for more details https://www.kemo-electronic.de/en/Light-Sound/Effects/Modules/M028N-Power-control-110-240-V-AC-4000-VA.php
- Dimensions 87 x 60 x 33 mm
