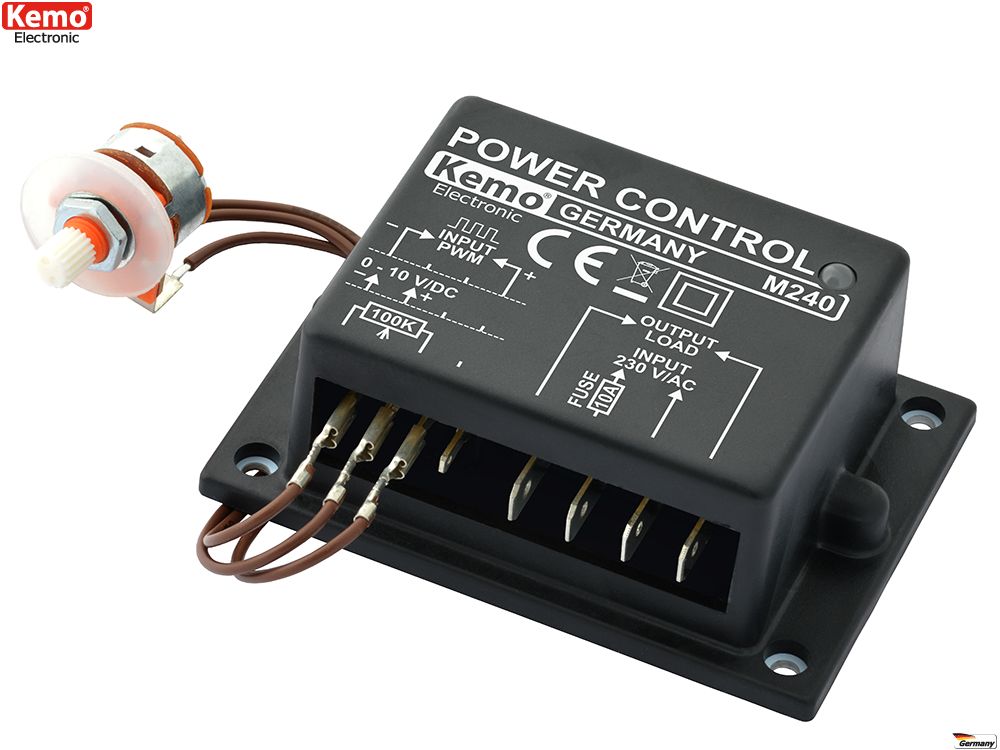

POWER CONTROL UNIT 230VAC 10A
POWER CONTROL UNIT 230VAC 10A
Product Description
Features
- Suitable for PWM control of mains-powered devices such as brush-type AC motors, incandescent and halogen lamps, and dimmable LED floodlights
- Not suitable for devices that already contain controlling electronics, e.g. motors with speed control or start capacitors
- Three different control methods
- linear potentiometer (e.g. 100k)
- control voltage 0-10V
- PWM signal (0 - 100%, 100 - 10,000 Hz)
- The control signal circuit is fully isolated from the load
- Overload protected
Technical specifications
|
Supply voltage |
220 - 230 V/AC 50 - 60 Hz |
|
Max. controllable load |
10 A (2300 W) |
|
PWM control method |
phase angle (phase angle) |
|
Start |
soft start |
|
Status indicator, overload indicator |
2-color LED |
|
Control methods |
potentiometer, voltage, or PWM signal |
|
Cooling |
<800W: no cooling, 800-2300W: heatsink |
|
Connections |
Faston terminals 6.3 mm (input and output) and 2.8 mm (control) |
|
Dimensions |
approx. 87 x 60 x 33 mm |
Installation instructions
Always use a fuse between the Kemo M240 and the power supply. The recommended rating is 10A.
If the product becomes hot during use, provide adequate cooling. Heat is dissipated through the aluminum surface at the rear of the device. Mount it against a heatsink or other metal surface. Use thermal paste to maximize heat transfer. Be careful when fastening so the device does not become twisted in any way. Use four M3 metal screws. Do not drill larger mounting holes or make other modifications. Ensure cooling is sufficient.
Product Information
- Availability In stock
- Manufacturer Kemo Electronic
- EAN 4024028032405
- Product path Home Do It YourselfBuilding KitsKemo ready-made modules POWER CONTROL UNIT 230VAC 10A
- SKU KEMO-M240
- Attributes
- Manufacturer's model M240
- Click for more details https://www.kemo-electronic.de/en/Transformer-Dimmer/Controller/Modules/M240-Power-Control-230-V-AC-10-A-Multifunction.php
- Dimensions 87 x 60 x 33 mm
